New Arrival

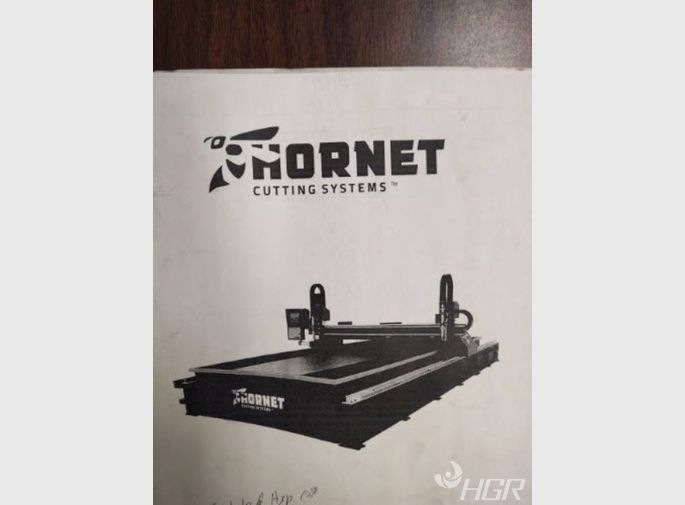

Hornet Xd CNC Plasma Cutting System

Shop for Hornet Equipment

This item has been SOLD.
Inventory No.
1120-075-0001
Manufacturer

Hornet

Model No.

XD

Name
Hornet Xd CNC Plasma Cutting System
Arrival Date
07-20-2025
Dimensions L x W x H (inches)
Unavailable
Capacity

8' X 20" TABLE

Electrical

-

Weight (lb.)
10000
Category

CNC

Condition
See Details
Available Quantity
1
Serial No.

-

Make Year
2016
Item Details

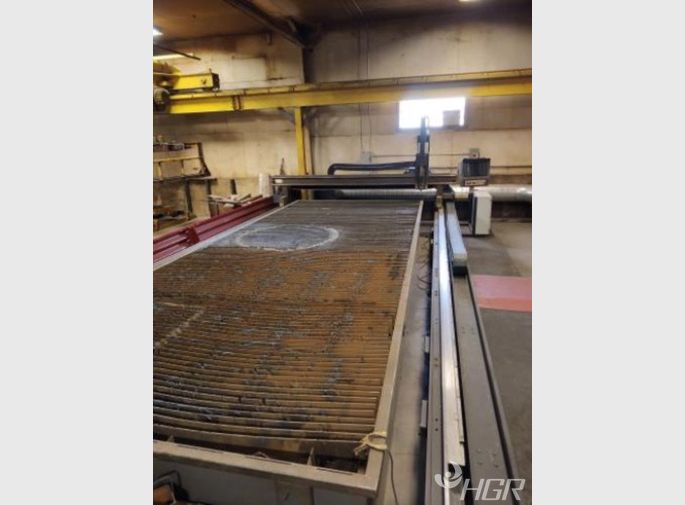

Year 2016, 8' X 20" Table, Hyperthemr Control, Located In Halstead, Ks. If Interested Please Call John Miller @ 636-222-0098 Or Email Jmiller@hgrinc.com. 1120-075-0001

About This Item

Product Overview:
The Hornet XD CNC plasma cutter is built for strength. Powerful 480V AC SERVO motors drive a stress-relieved, machined beam along structural I-beam mounted rails. The result is a CNC plasma machine with superior durability and reduced maintenance.

Product Features:

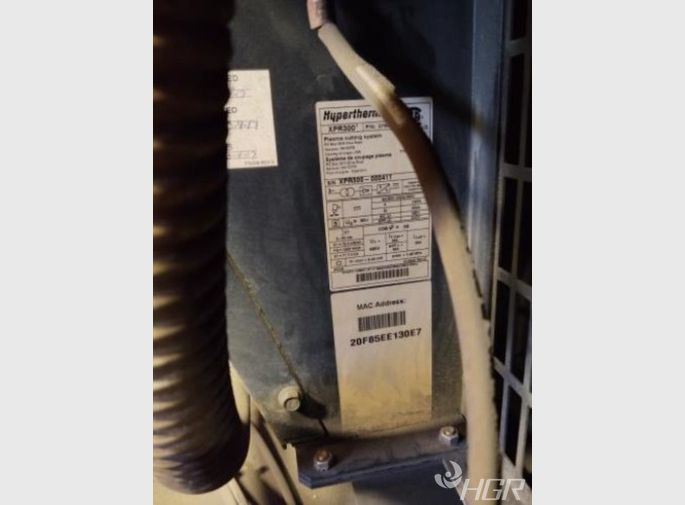

• The Hornet XD CNC plasma cutting machine is configured with the Hypertherm full suite of products including Hypertherm plasma systems (up to 400A), Hypertherm Edge Connect CNC control, and Hypertherm plasma height control technology. Use of the Full Suite ensures delivery of the latest Hypertherm technology, most reliable integration of system components, most consistent plasma performance, and the best system diagnostics.
• Hornet Cutting Systems’ Contour Bevel System creates 360° contour plasma bevel cuts up to ± 45 degrees. Hornet Cutting Systems’ design can produce any part design without unwinding the leads. With the Contour Bevel System manufacturers can make A, V, Y, K, X and gradual bevel cuts. Cuts can be made up to 45 degrees on rotational axes.
• The Hornet Cutting Systems plasma torch lifter and Hypertherm SENSOR torch height control software are tightly integrated to deliver a full featured precision system delivering positioning speeds of 500 IPM (12.7m/min).
• Powerful dual-side SERVO motors combined with low backlash planetary gear boxes and helical rack and pinion drives move the gantry of the Hornet XD along the X and Y axes at speeds up to 1,000 IPM (25.4m/min).
• Our AC servo drives use a SERCOS fiber optic interface system to ensure optimum control and precision.
• The Hornet XD comes standard with a rotatable attached operator station. The Hornet XD is also available with a remote pedestal operator station. Each operator station includes a 15” LCD touch-screen monitor, industrial keyboards, mouse, and E-Stop button. If needed, the operator station also includes an oxy-fuel operator control panel and a dust collector Start/Stop button.
• The Hornet XD CNC plasma cutting machine utilizes Hypertherm’s Phoenix motion control software on a Windows-based platform.
• Remote help allows operators to connect to Hornet Cutting Systems’ technical support via the internet in less than a minute from the convenience of the operator station. With the remote help feature Hornet Cutting Systems technicians can virtually review settings, review setups, review part programs, perform software updates, perform HPRXD diagnostics, provide technical training, and observe CNC screens while running the machine.

General:
Manufacturer: Hornet
Model Name: CNC Plasma Cutting System
Model Number: XD
Inventory Number: 1120-075-0001
Make Year: 2016

Specifications:
Weight: 10000 lbs.
Max. Cutting Width: 10 ft.
Max. Cutting Length: >100 ft.
Max. # Cutting Heads: 6
Max. Oxy-fuel: 6
Max. Plasma: 2"
