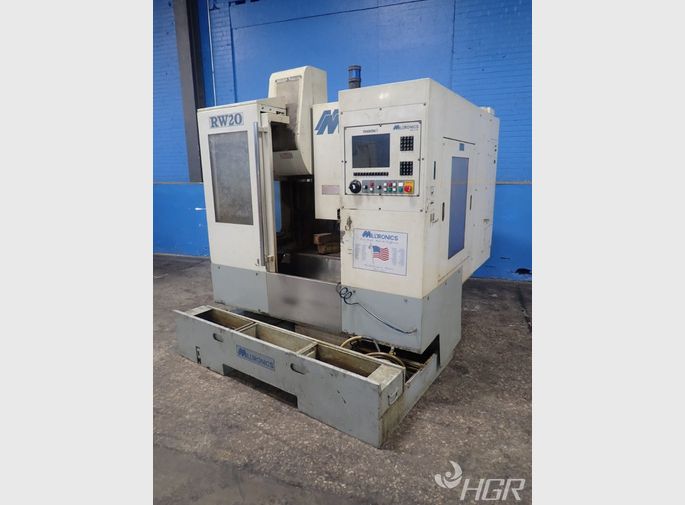

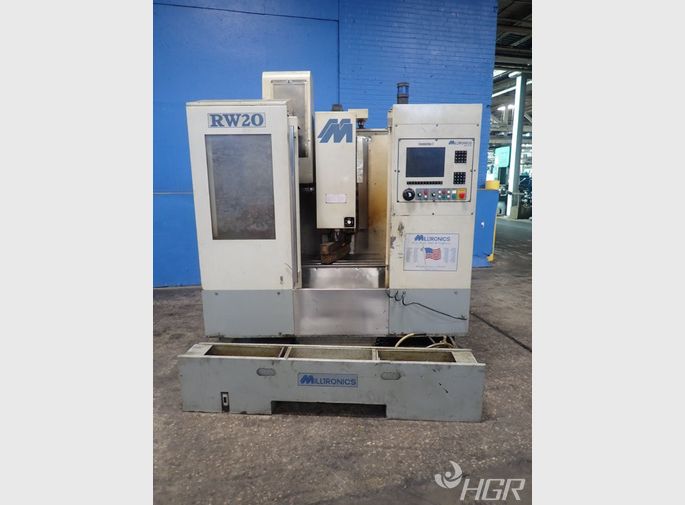

Milltronics
RW20
18" X 30"
3/50/60/220
8498

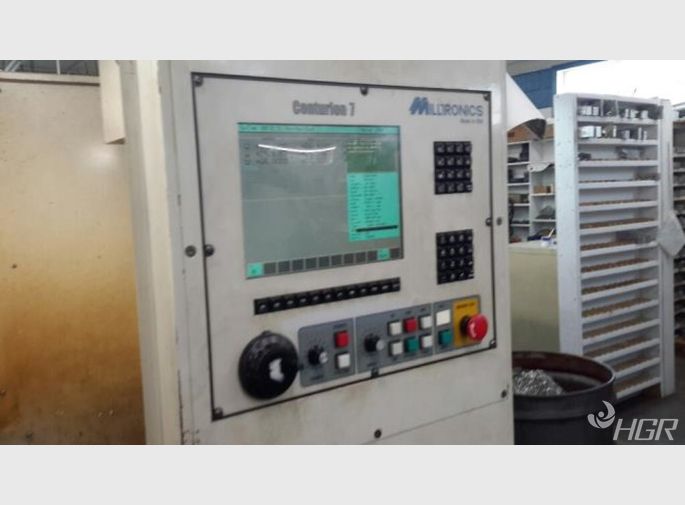

Centurion 7 Control, 16 Position Tool Changer, Coolant Unit, *contains 2 Pcs 1020-005-0001
About This Item
Product Overview:
The Motor orients in high range, for reduced-torque operation during orient. Orienting in high range permits the jog speed parameter (D1-09) to be set at 1.0Hz. There is a 1024-count encoder built into the motor. Encoder signals are fed to a card in the drive, and the drive compares commanded motor speed and actual motor speed, adjusting current and slip to maintain RPM under load. When the motor accelerates to its programmed speed, it overshoots slightly and then settles back to its commanded speed. This effect can be heard, and the system’s ability to hold its programmed speed may be seen at the RPM readout on the front panel. Unlike an open-loop vector system, the 20 HP dual winding motor does not run down under load. It compensates for load and maintains spindle RPM.
Product Features:
• Rigid Way Construction
• Side Mount Tool Magazine
• Engraving
• User Definable Macros
• Chip Auger
• Coordinate Rotation & Scaling
• Rigid Tapping
• Mirror Imaging
• 3.5" Floppy Disk Drive - 1.44MB
• 16 MB Program Storage
• Power Draw Bar
• Flood Coolant
• Remote Jog Handle
• 3 Color Status Condition Lights
• Quill Position Readout
• DXF File Conversion Software
• Off Line FastCam Software
• Wired 208-240 Volts
• UL Compliance
• All Available Manuals
• Only 1 Shift since New
• 12,194 Power on Hours
General:
Manufacturer: Milltronics
Model Name: CNC VMC
Model Number: RW20
Inventory Number: 1020-005-0001
Serial Number: 8498
Category: CNC
Make Year: 2005
Power Requirements:
Spindle Motor 30 minutes/continuous: 18 hp /12 hp
Spindle Speed: 50 - 8,000 RPM
Specifications:
Table Size: 30 x 18 in.
Table Load Capacity: 1,000 lbs.
Table Top to Spindle Nose: 4.5-25 in.
Column to Spindle Center: 21 in.
X Axis Travel: 25 in.
Y Axis Travel: 20 in.
Z Axis Travel: 20.5 in.
Spindle Ranges: 2 Ranges
Number of Tool Positions: 16 Position ATC
Max. Tool Diameter/Length/Weight: 4/ 9/ 15 lbs.
Rapid Traverse Rates X, Y/Z: 1000/800 ipm
Cutting Feed rates: 1 - 300 IPM
Machine Dimensions: 73 x 80 in.
Machine Weight: 8,500 lbs.
