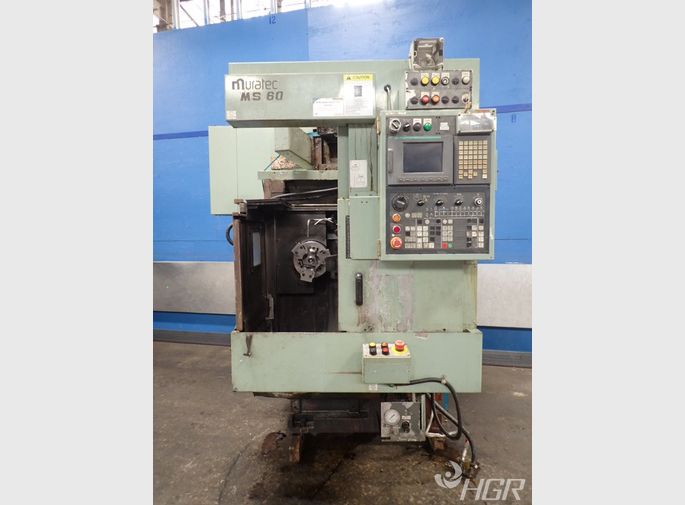

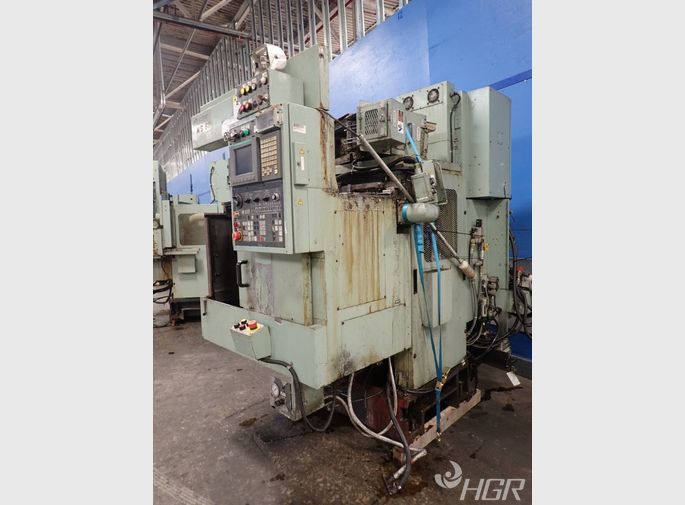

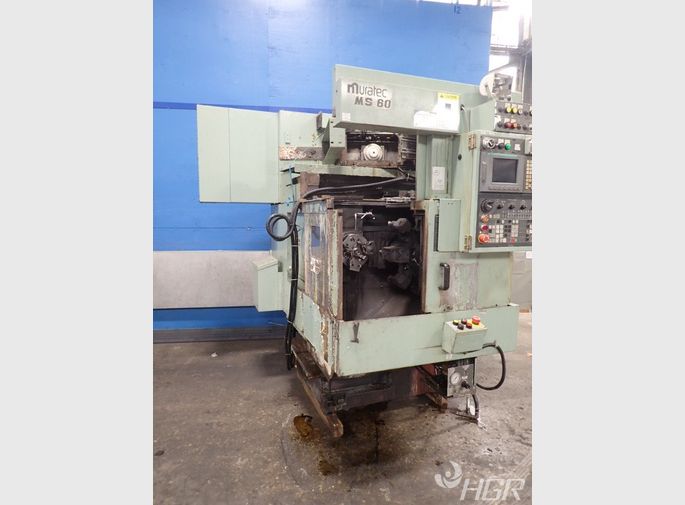

The MS60 is a single spindle CNC turning Center that is revolutionizing automated turning with its compact size. Its small footprint paired with its high-speed capabilities make this an incredibly efficient machine for high-volume production. When combined with the twin spindle CNC turning centers from our MW Series, the MS60 provides an ideal third operation solution, or just to add additional turning capacity.
- Ideal for In-Line Operations: Ideal for automated single spindle needs, or in-line operations. The MS60 is an optimal solution for line planning and can work alongside any of the twin spindle machines from our MW or MD Series.
- Longer Unattended Operation: In addition to multi-machining, the MS60 will deliver longer unattended operations, reducing the cost of labor.
- Automation Solutions: Designed with automation in mind, as well as a fully automated gantry, the MS60 can be configured to meet your unique operating needs.
Model Name: CNC Lathe
Model Number: MS60
Inventory Number: 0320-181-0031
Serial Number: 05MX214800001
Make Year: 2005
Maximum Spindle Speed: 4500 rpm
Spindle Drive Motor: 11 kW/30 min.
Maximum Chuck Size: 8 in.
Number of Turret Stations: 8STA
Spindle Drive Motor: 11 kW/30 min
Gantry Loader Work piece Handling Capacity: 120 mm x 80 mm, up to 3.0kg/piece
Spindle Nose Size: JIS A2-5
Spec. of Axis: X-axis 24 m/min | Z-axis 24 m/min
Total Machine Weight (Approx.): 5305 lbs.
