25 Hp, 12.2" Swing, Fanuc 18i-tb CNC Coontrol, Collet Chuck, Coolant Tank, Chip Conveyor, Live Tooling, Lns Bar Feeder, Parts Catcher, Misc Tooling Available, Full C Axis, Located In Michigan, If Interested Please Call John Miller @ 636-222-0098 Or Email Jmiller@hgrinc.com. 0320-102-0003

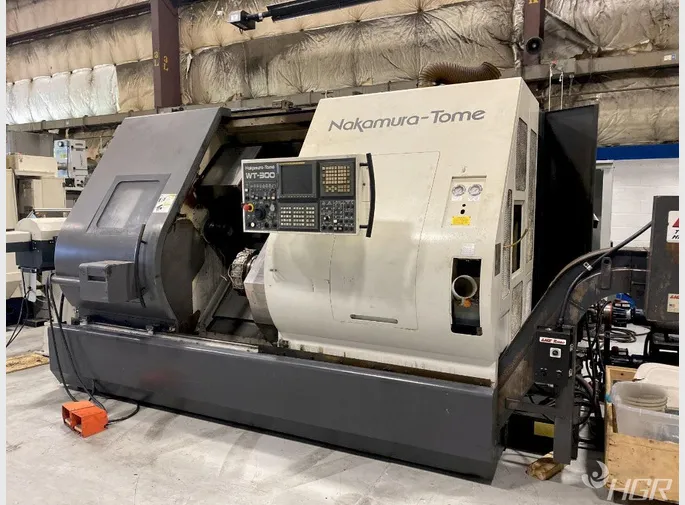

Product Overview: The Nakamura-tome WT-300 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry. Product Features: - Fanuc 18i-T CNC Control - Collet Chuck on Main Spindle - Coolant Tank - Chip Conveyor - Live Tooling - Full C axis on Main & Sub Spindle - Bar Feeder (LNS Quick Load Servo S2) - Parts Catcher - Misc. Tooling Available - Manual Guide I General: Manufacturer: Nakamura-tome Model Name: CNC Horizontal Lathe Model Number: WT-300 Inventory Number: 0320-102-0003 Category: CNC Make Year: 2008 Power Requirements: Spindle Speed: 3500 rpm Main Motor: 25 hp Sub Spindle Speed: 4500 rpm Sub Spindle Motor (HP): 25 hp Main Motor: 35 hp Live Tooling Speed: 6,000 rpm Live Tooling Motor: 7.5 hp Specifications: Swing: 12.2 in. Turning Diameter: 10.6 in Center Distance: 43.3 in. Chuck Size: 10 in. Bar Capacity: 2.56 in. X Axis Travel: 7.4 in. X2 Travel: 7.7 in. Z Axis Travel: 30.7 in. Z2 Travel: 30.7 in. Y Axis Travel: 2.4 in B Axis Travel (Sub Spindle):33.5 in. C1/C2 Axis Index: 0.001 Sub Spindle Chuck: 8 Turret Capacity: 24 Upper / 24 Lower Dimensions: 166 x 100 x 89 in. Weight: 31,000 lbs. A CNC Horizontal Lathe manufactured by Nakamura-Tome is a safe bet as an addition to your arsenal of CNCs and other industrial machinery. Nakamura-Tome Precision Industry CO was founded in 1949 in Kanazawa City with a focus on turning centers and drilling machines. Used CNC Horizontal Lathes can be great way of acquiring additional equipment for less money. HGR's CNC category can offer more options in case this machine doesn't meet your needs. This used Nakamura-Tome CNC Horizontal Lathe is 25hp and comes with a Fanuc 18i-tb Control. Make sure you visit the home page for all of HGR's inventory.
