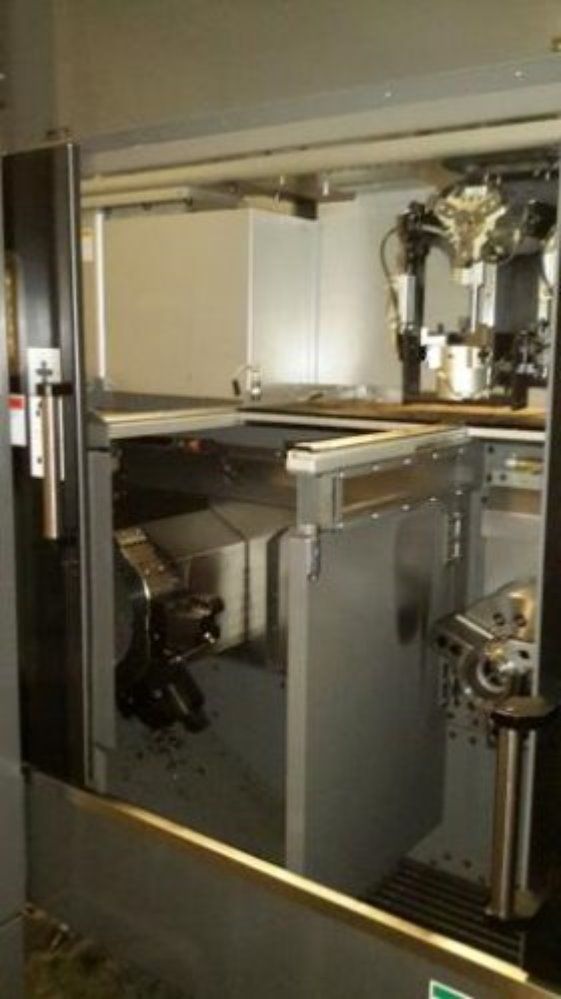

Loader cycle that will disprove common knowledge in loading technology: This New 3-axis loader is even faster with a loading time of 6 sec. This machine is equipped with high speed shutter, reducing shutter open/close time into half. Aluminum 18 sec cycle time is achieved with this new loader cycle idea. Pursuit of both cutting capability and precision: The Adoption of the box sliding for the slide, 100 mm maximum spindle diameter and 11/7.5 kw motor. Installation of the spindle base cooling system for stable machining precision. Lower center of gravity, Space-saving design: A Compact 1890 mm width machine design ensuring a 150 mm X-axis and 160 mm Z-axis slide stroke with a 1000 mm spindle center height. Easy access to the spindle chuck and work turn device and easy change-over.
• Zero Work-in-Progress Inventory with Front/Back Combined Cutting: Live tool units suitable for use with an 8-inch chuck are available. Up to 20 live tools can be mounted, satisfying requirements for process integration through complex machining.
• Original Vibration Damping Construction Adopted: This machine incorporates original functional materials in the head / loader stand section and has been given a construction that dampens vibration.
• Reassuring Stability for Mass Production: To restrict changes over time and achieve stable dimensional accuracy in spite of changes in the conditions of use, this machine has an original head stock base cooling mechanism that takes the coolant flow into consideration built into it.

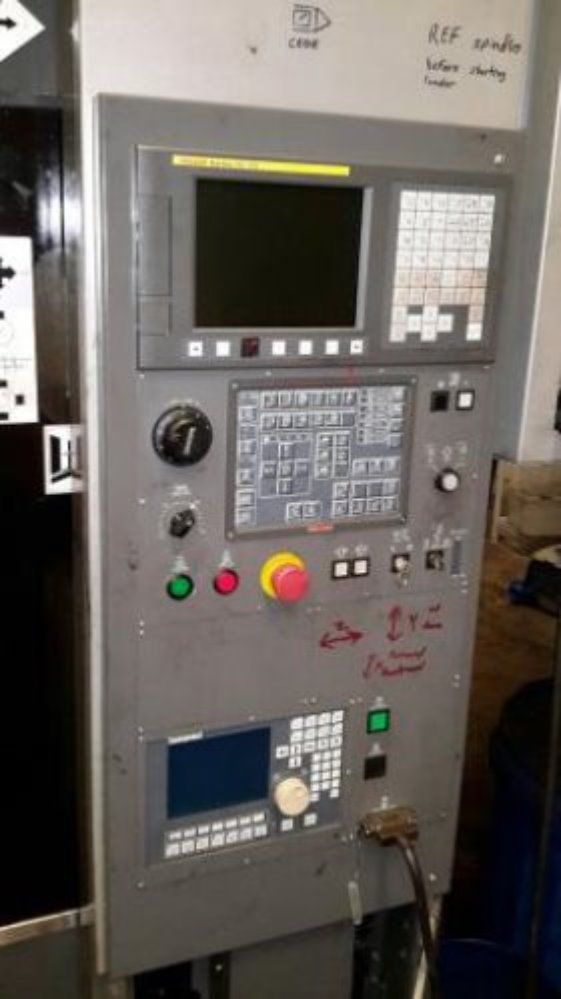

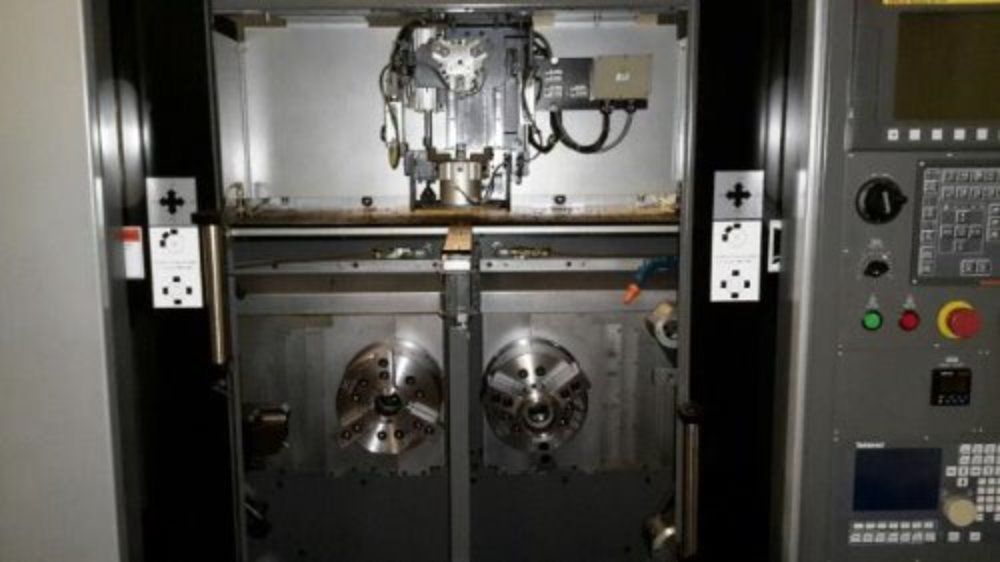

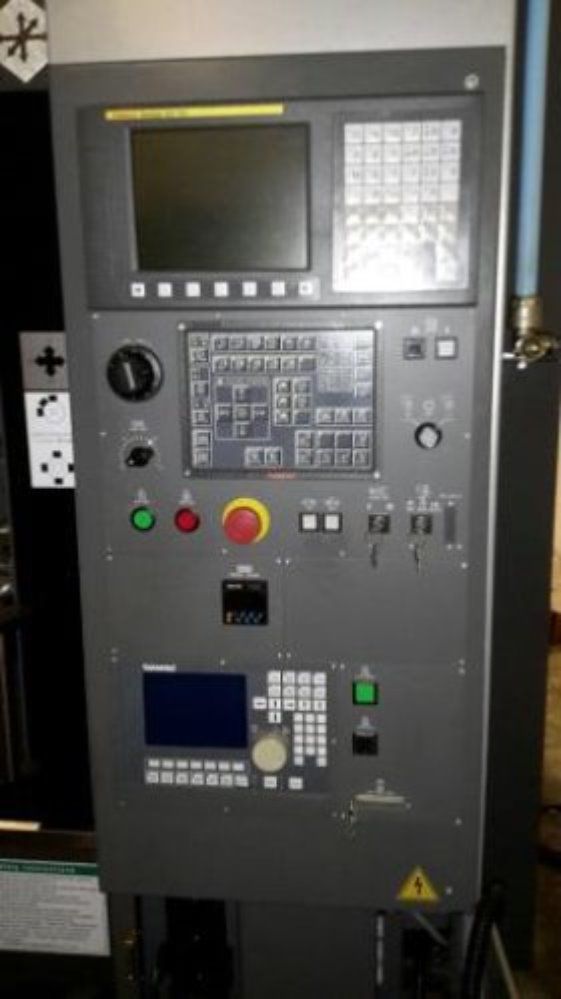

• Reduced Setup Load: The machine is designed to allow work to be done in a comfortable posture, with an easy-to-use swiveling operation panel, a portable handy teaching terminal for the loader a restricted spindle center height of 1,000 mm and improved access to the spindle chuck and work piece turnover unit.

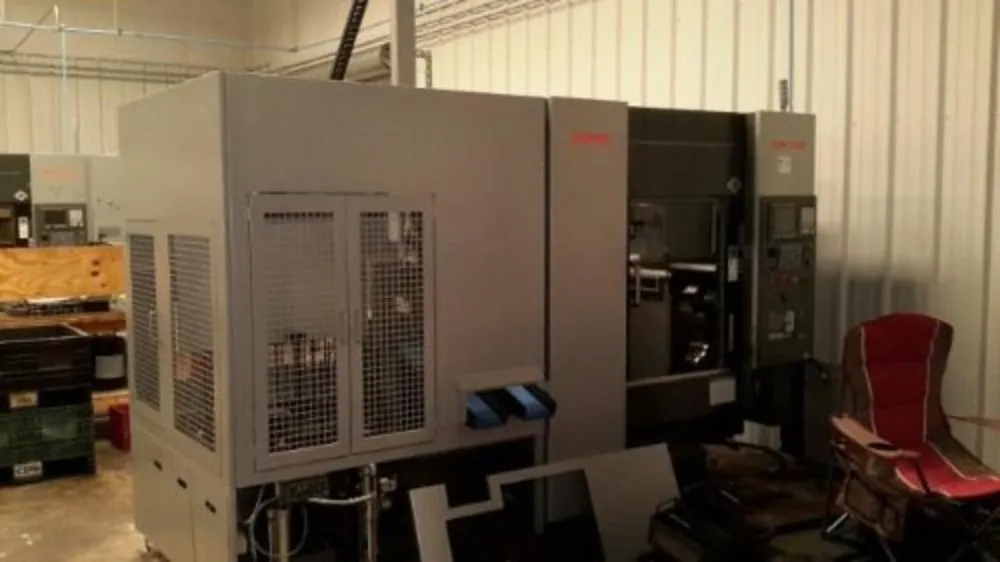

Model Name: CNC Twin Spindle Turning Centers

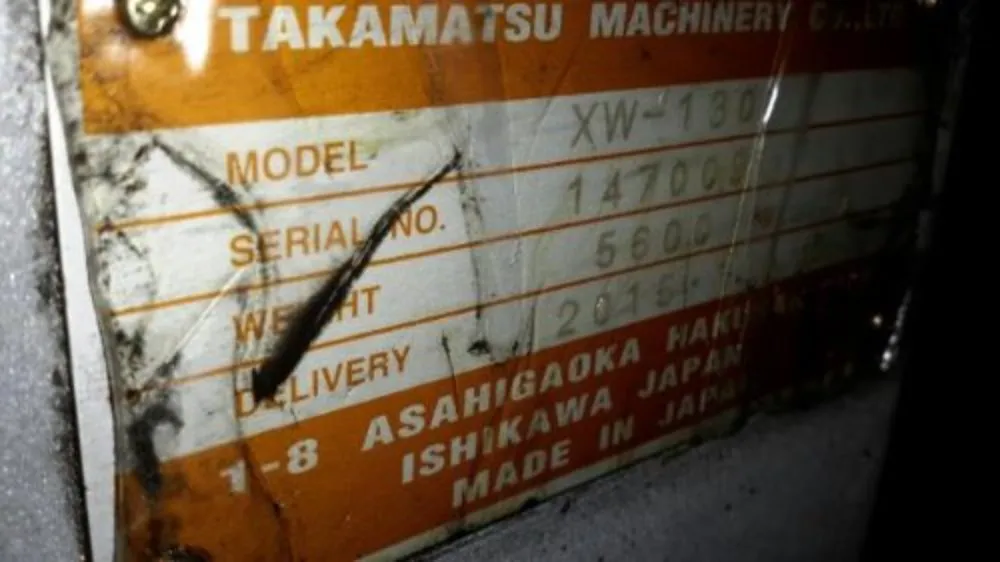

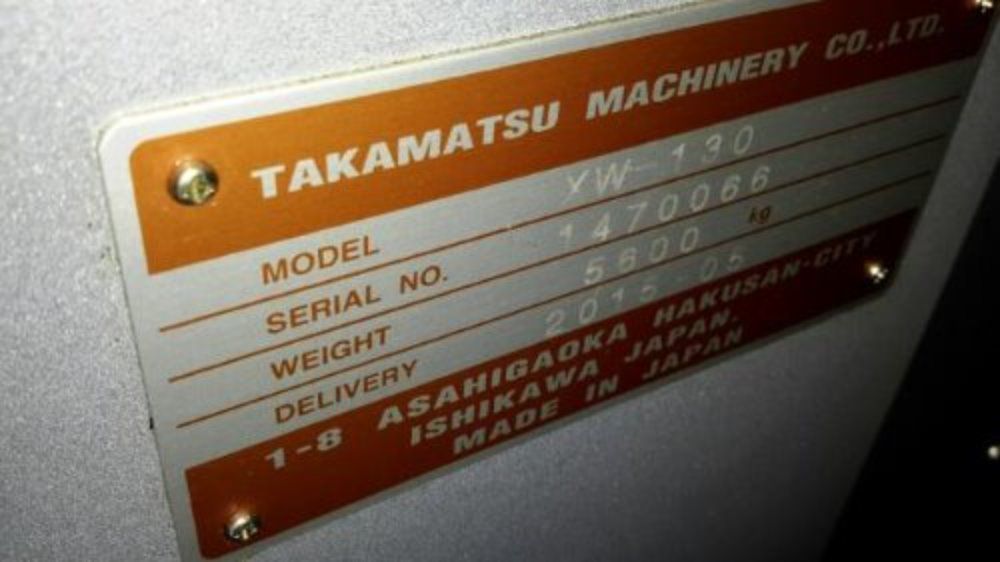

Model Number/MPN: XW-130
Inventory Number: 0920-054-0004
Make Year: 2015
Weight (lb): 14330 lbs.
Length: 1890 mm
Width: 2140 mm
Spindle Speed Maximum: 4000

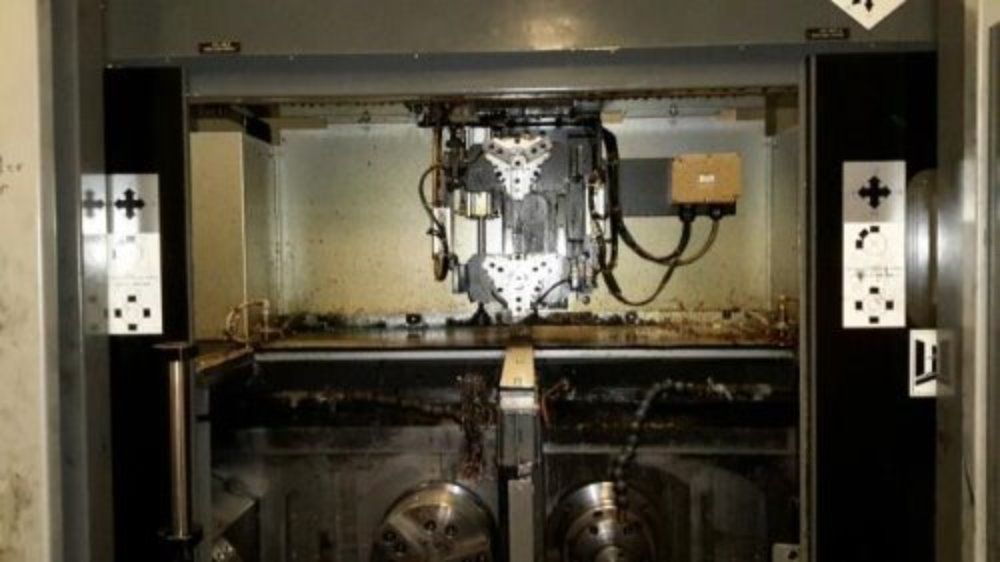

Type: 8-Station Turret
