0120-098-0001

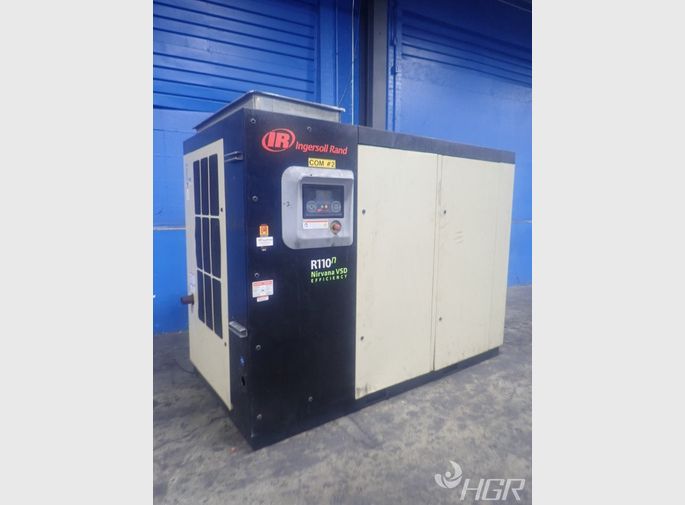

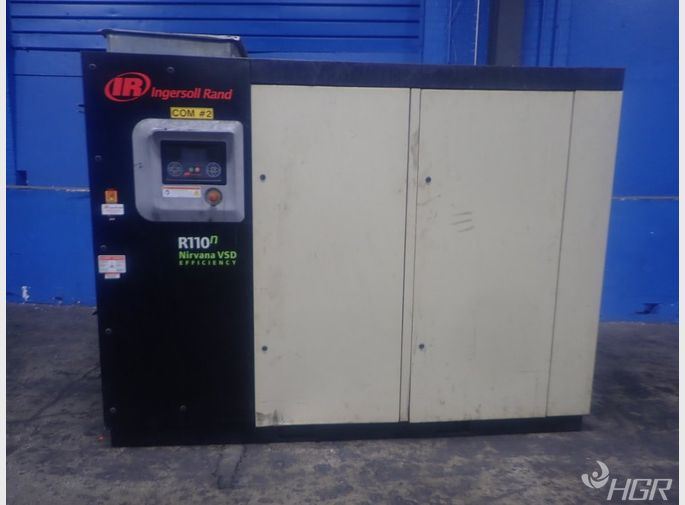

Product Overview: Ingersoll Rand R110n-A is a single-stage variable speed rotary screw air compressor designed to provide improved efficiency and airflow capacity. It delivers a capacity of 618-765cfm with a working pressure of 7-10 barg and 110 kw nominal motor rating. E3/NEMA Premium® Efficiency TEFC motor delivers significant energy savings. XE-Series controller delivers increased control functionality through an intuitive user interface as well as remote access with any common, current web browser. V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals. Progressive Adaptive Control monitors key operating parameters and continuously adapts to prevent unexpected downtime. A free-floating cooling system allows heat exchanges to expand and contract, reducing thermal stress for improved system durability. Product Features: - Premium efficiency IP23 HPM motor; IE3 (MEPS) fan motor, 96% efficiency rating and No motor bearings - Air-Cooled aftercooler with Condensate Separator - AS1210 Pressure Vessel Code Available for Aus - Factory-fill of UltraEL Coolant - Xe microprocessor controller providing: Sequence up to 4 machines and 15 event History Record - Integrated with Line Reactor inside - NEMA4 (IP65) Electronic Protection Level - 74 dB(A) Low Sound Enclosure General: Manufacturer: Ingersoll Rand Model Name: Air Compressor Model Number/MPN: R110N-A Inventory Number: 0120-098-0001 Series: VN1643U14065 Condition: Used Power Requirements: Power: 110 kw Ambient Min/Max (Degrees C): 2 deg C / 46 deg C Pressure Min/Max (Bar): 5/7 Power Type: 400/3/50 Specifications: Aisle: 08B Bay: 1600 Weight (lb): 5010 lbs. Capacity: 150 hp Cooling Air: Cooled Stages: Single Compressor Coolant: Ultra-coolant Controller: Xe-90 Drive Type: Gear
