Fanuc Oitc Control, Mta Super 80 6 Ft. Bar Feeder, Tool Presetter, Live Tooling, Sub Spindle, Chip Conveyor, Coolant Tank & Pump 1020-074-0004

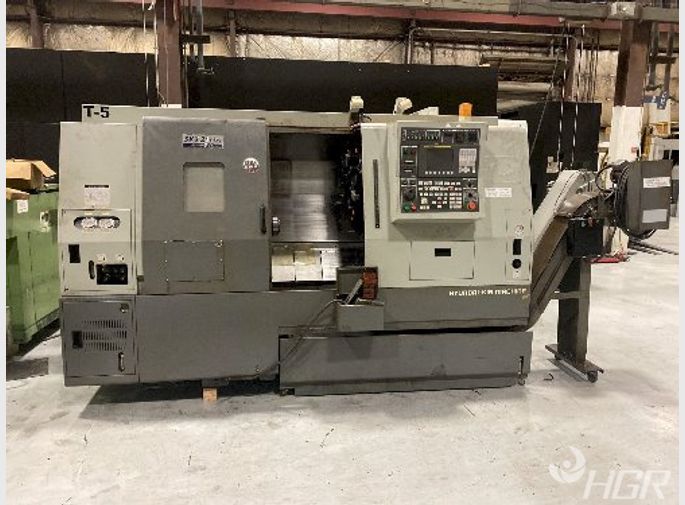

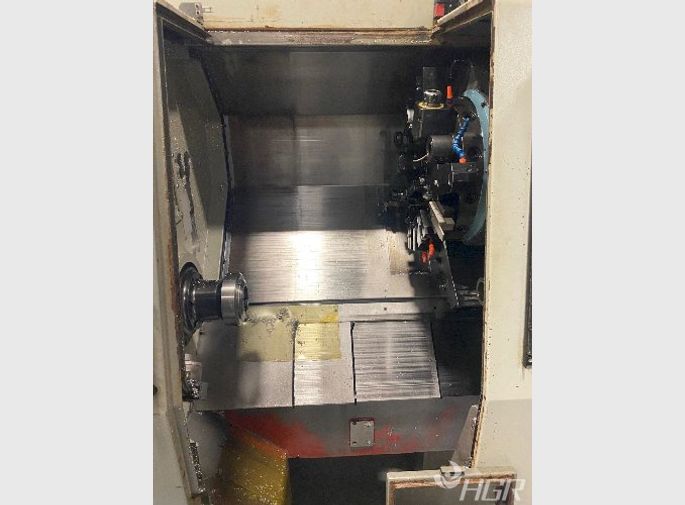

Product Overview: Fanuc 0i-TC Control MTA Super 80 Bar Feeder Live Tooling Sub Spindle Parts Catcher. Product Features: • Fanuc 0i-TC Control • MTA Super 80 6ft Bar Feeder • Tool Presetter • Live Tooling • Sub Spindle • Misc. Tooling • Chip Conveyor • Coolant Tank & Pump • Available Manuals General: Manufacturer: Hyundai Kia Model Name: CNC Horizontal Lathe Model Number: SKT-21LMS Inventory Number: 1020-074-0004 Serial Number: SKT21LMS0414 Category: CNC Power Requirements: Spindle Nose: A2-8 Spindle Speed: 4000 rpm Main Motor: 20 hp Live Tooling: yes Live Tooling Speed: 4000 rpm Live Tooling Motor: 5 hp Sub Spindle: yes Sub Spindle Chuck: 6 Sub Spindle Speed: 4000 rpm Sub Spindle Motor (HP): 5 hp Specifications: Swing: 21.7 in. Swing Over Cross Slide: 13.8 in. Turning Diameter: 10 in. Center Distance: 20.87 in. Chuck Size: 8 in. Bar Capacity: 2.56 in. X Axis Travel: 8.3 in. Z Axis Travel: 21.65 in. B Axis Travel (Sub Spindle): 29.5 in. C Axis Index: 0.001° Rapid Traverse (X/Z): 1,417 ipm Tailstock: No Y Axis: No Turret Capacity: 12 stations Machine Dimensions: 125 x 65 x 74 in.
