Year 2011, W/servo Bar 300 Feed, Located In Greensboro, Nc. If Interested Please Call John Miller @ 636-222-0098 Or Email Jmiller@hgrinc.com. 0920-015-0001

Product Overview:

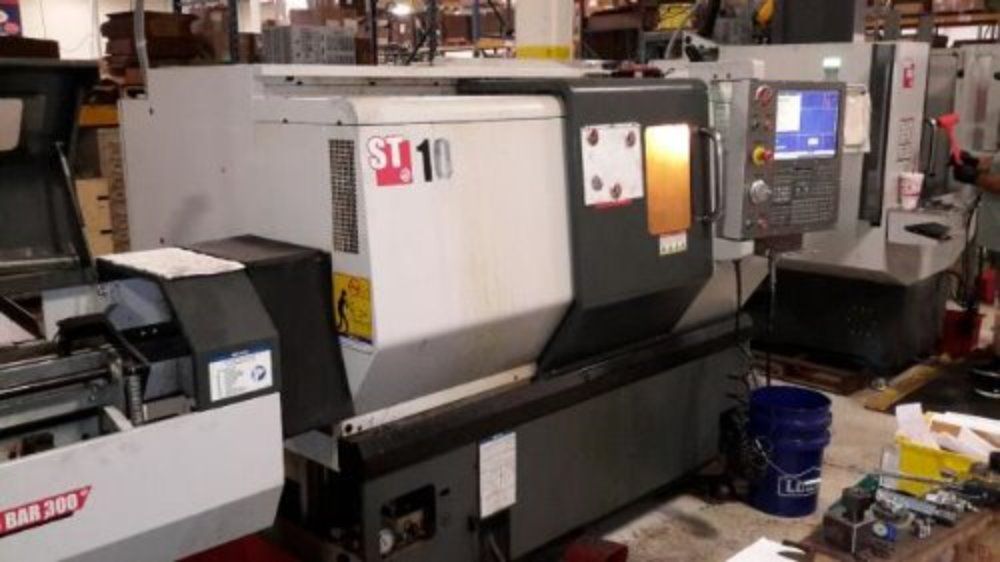

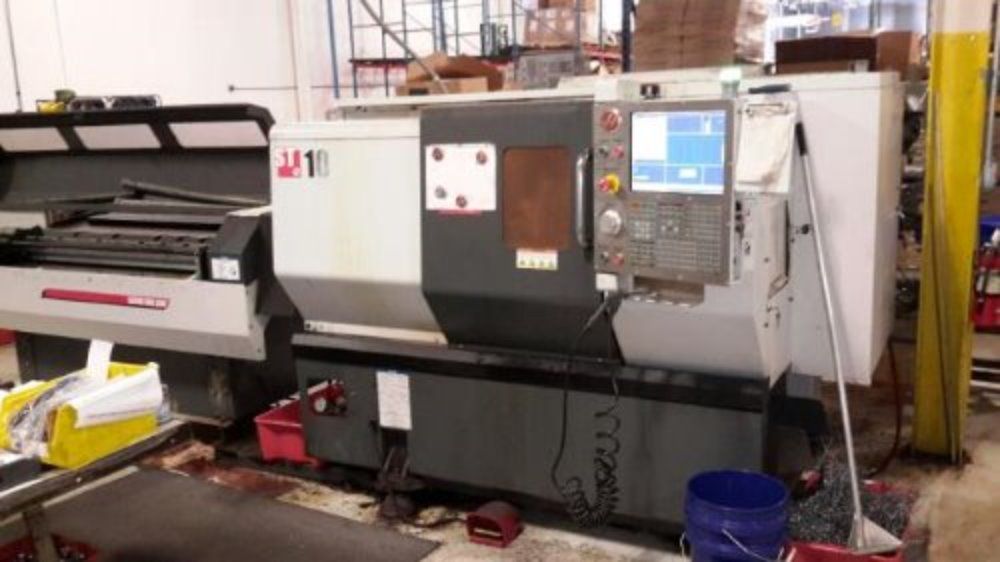

The Haas ST Series high-performance turning centers were designed from the ground up to provide setup flexibility, extreme rigidity, and high thermal stability. The ST-10 has an extra-small footprint, yet provides a generous work envelope. This machine offers the best performance for the money the best value in its class. CNC Lathe, 14″ x 16″ (356 x 406 mm) max capacity, 1.75″ (44 mm) bar, 16″ (406 mm) swing, 15 hp (11.2 kW) vector drive, 6000 rpm, A2-5 spindle, 6.5″ (165 mm) chuck, 12-station bolt-on turret, 15″ color LCD monitor, memory lock key-switch, USB port and rigid tapping. Standard tool-holder kit included with BOT or Hybrid turret.

Product Features:
• Extra-small footprint
• High rpm and rapid speeds
• Ideal for high-volume, high-production environments

General:
Manufacturer: Haas
Model Name: CNC Turning Center
Model Number/MPN: ST-10
Inventory Number: 0920-015-0001
Make Year: 2011

Power Requirements:
Maximum Spindle Rating: 15 hp
Maximum Spindle Speed: 6000 rpm
Air Required: 4 scfm, 100 psi
Air Pressure Minimum: 80 psi
Input AC Voltage (3 Phase)-Low: 220V ac
Full Load Amps (3 Phase)-Low: 40A
Input AC Voltage (3 Phase)-High: 440V ac
Full Load Amps (3 Phase)-High: 20A

Specifications:
Aisle: OFF
Bay: SITE
Weight (lb): 6400 lbs.
Swing Diameter:
Max Part Diameter: 16.5 in.
Over Wedge: 16.5 in.
Domestic Pallet: 126 x 70 x 81 in.
Coolant Capacity: 30 gallon
