Product Overview:

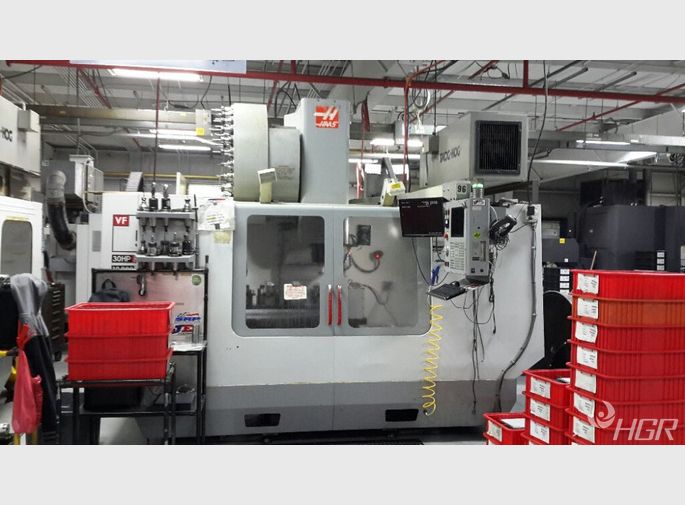

The Haas high-performance Super-Speed vertical machining centers provide the high spindle speeds, fast rapids, and quick tool changes necessary for high-volume production and reduced cycle times. Each SS machine features a 12,000-rpm, inline direct-drive spindle, an ultra-fast side-mount tool changer, and high-speed rapids on all axes.
Product Features:
- More Y-axis travel
- High-speed spindle
- Fast rapids
- Super-speed side-mount tool changer
- Window Air Blast
- 95-Gallon Coolant Tank
- Variable Flow Coolant
The Haas Control:
- Control Touch Screen
- Haas Connect Remote monitoring
- Early Power Failure Detection Module
- Ethernet Interface
- Wi-Fi Connection for the Haas Control
- Safe Run
- Haas Drop
- Rigid Tapping
- Standard Program Memory, 1 GB
- Internal High-Voltage Isolated Transformer
General:
Manufacturer: Haas
Model name: Vertical Machining Center
Model Number: VF-5
Inventory Number: 0121-085-0002
Serial Number: 30024
Category: CNC
Make Year: 2002
Power Requirements:
Power: 30 hp
Max Speed: 12000 rpm
Product Specifications:
Travels:
X Axis: 50 in.
Y Axis: 26 in.
Z Axis: 25 in.
Spindle Nose to Table (~ max): 29.2 in.
Spindle Nose to Table (~ min): 4.2 in.
Spindle:
Max Speed: 12000 rpm
Drive System: Inline Direct-Drive
Cooling: Liquid Cooled
Table:
Length: 54 in.
Width: 24 in.
T-Slot Width: 0.630 in.
T-Slot Center Distance: 3.15 in.
Number of STD T-Slots: 7
Max Weight on Table (evenly distributed):1750 lbs.
Axis Motor:
Max Thrust X: 3350 lbf
Max Thrust Y: 3350 lbf
Max Thrust Z: 3350 lbf
Dimensions-Shipping:
Domestic Pallet: 168 x 102 x 109 in.
Export Pallet: 164 x 92 x 101 in.
Coolant Capacity: 95 gal
Drive System: Inline Direct-Drive
Input AC Voltage (3 Phase) Low: 220 VAC
Full Load Amps (3 Phase) Low: 70 A
Input AC Voltage (3 Phase) High: 440 VAC
Full Load Amps (3 Phase) High: 35 A
Weight: 12700 lbs.
