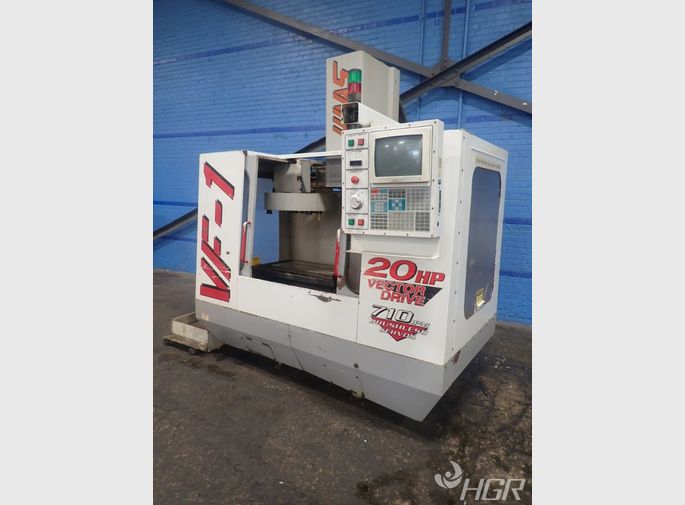

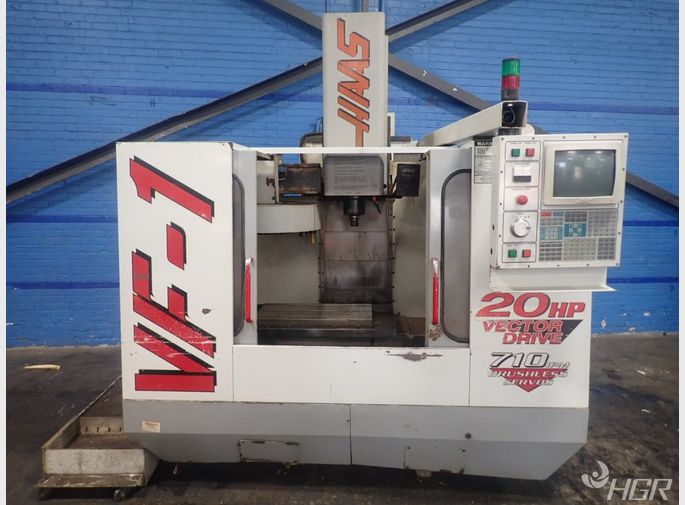

20 Position Tool Changer, Coolant Unit, Year 1997 0121-139-0001

Product Overview: Haas offers a wide range of VF Series CNC models to match any size and production requirement. Regardless of needs, there’s a VF just right to meet the demands of your machine shop. Every VF Series vertical machining center provides outstanding features at an excellent price, and features a wide range of available options to customize your machine to your exact needs. All Haas machines are designed and built in Oxnard, California, USA. Product Features: • High-power, direct-drive spindle • Customizable to your needs • Our flagship model General: Manufacturer: Haas Model Name: Vertical Machining Center Model Number/MPN: VF-1 Inventory Number: 121-139-0001 Series: 12976 Make Year: 1997 Power Requirements: Feedrates: Max Cutting: 650 ipm Rapids on X: 1000 ipm Rapids on Y: 1000 ipm Rapids on Z: 1000 ipm Electrical: Spindle Speed: 8100 rpm Drive System: Inline Direct-Drive Spindle Power: 30 hp Input AC Voltage (3 Phase) - Low: 220 Vac Full Load Amps (3 Phase) - Low: 70A Input AC Voltage (3 Phase) - High: 440 Vac Full Load Amps (3 Phase) - High: 35 A Specifications: Aisle: 05B Bay: 1900 Weight (lb): 6620 lbs. Capacity: 14 x 26 in. Coolant Capacity: 55 gal Travels: X Axis: 20.0 in. Y Axis: 16.0 in. Z Axis: 20.0 in. Spindle Nose to Table (~ max): 24.0 in. Spindle Nose to Table (~ min): 4.0 in. Spindle: Max Rating: 30 hp Max Speed: 8100 rpm Max Torque: 90.0 ft.-lbf and 2000 rpm Max Torque w/opt Gearbox: 250 ft.-lbf and 450 rpm Drive System: Inline Direct-Drive Taper: CT or BT 40 Bearing Lubrication: Air/Oil Injection Cooling: Liquid Cooled Table: Length: 26.0 in. Width: 14.0 in. T-Slot Width: 0.626 in to 0.630 in. T-Slot Center Distance: 4.92 in. Number of Std T-Slots: 3 Max Weight on Table (evenly distributed): 3000 lbs. Axis Motors: Max Thrust X: 2550 lbf Max Thrust Y : 550 lbf Max Thrust Z: 4200 lbf Tool Changer: Type: Carousel Max Tool Diameter (full): 3.5 in. Max Tool Weight: 12 lbs. Tool-to-Tool (avg): 4.2 s Chip-to-Chip (avg): 4.5 s Air Requirements: Air Required: 4 scfm and 100 psi Inline Air Hose: 3/8 in. Coupler (Air): 3/8 in. Air Pressure Minimum: 80 psi Dimensions: Domestic Pallet: 101 x 99 x 101 in. Export Pallet: 98 x 92 x 100 in.
