This item has been SOLD.
Inventory No.
0920-150-0010
Manufacturer
Haas
Model No.
VF5
Dimensions L x W x H (inches)
Unavailable
Capacity
23" X 52"

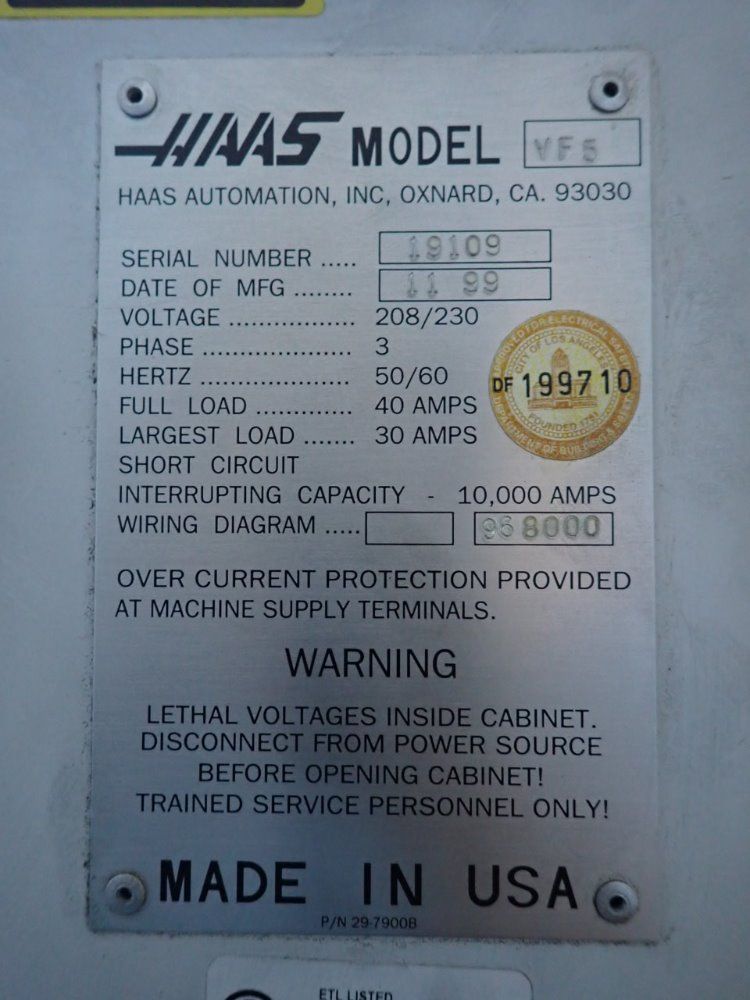

Electrical
3/50/60/208/230
Weight (lb.)
14990
Category
Condition
See Details
Quantity
1
Serial No.
19109
Make Year
1999
Item Details

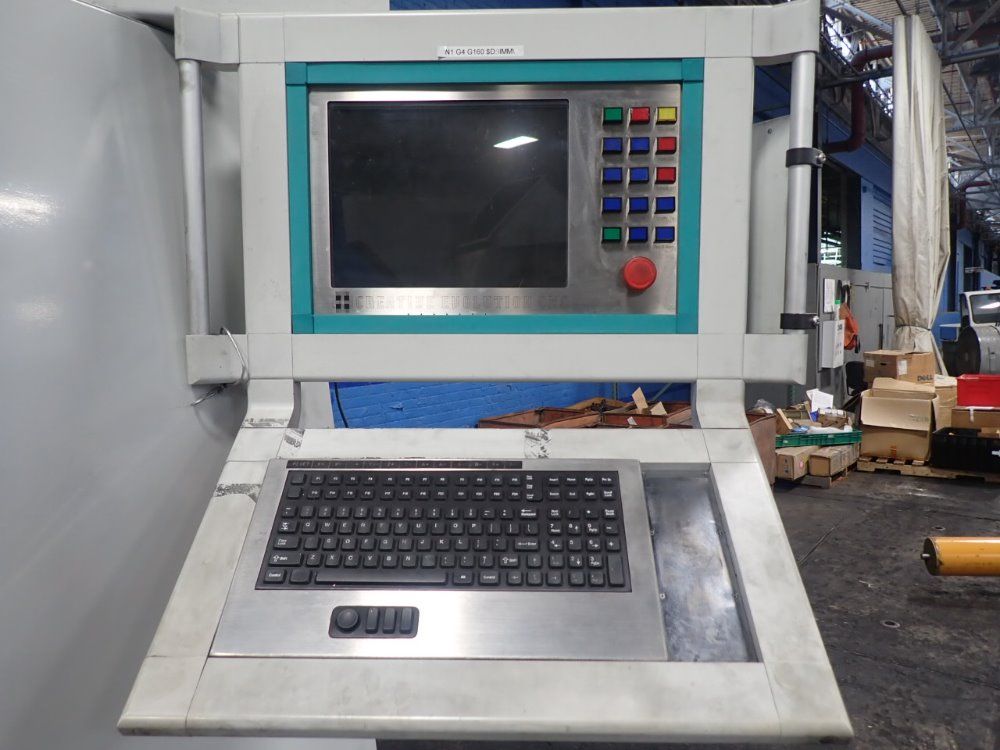

Creative Evolution Control, 20 Position Tool Changer, Coolant Unit, *contains 2 Pieces 0920-150-0010
About This Item

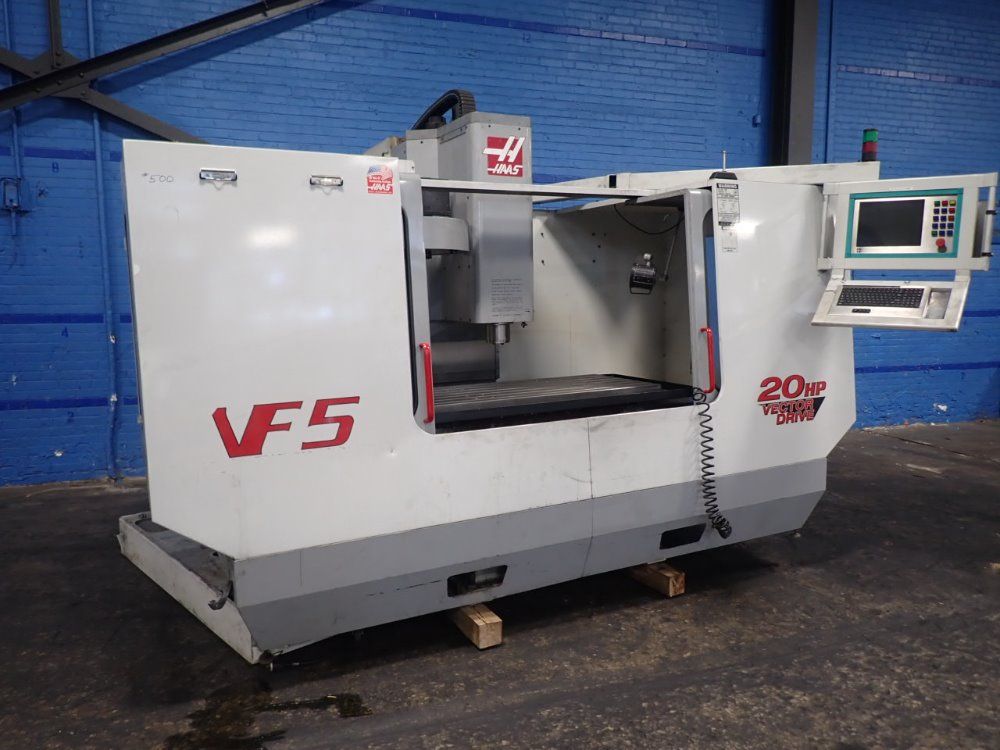

Product Overview:

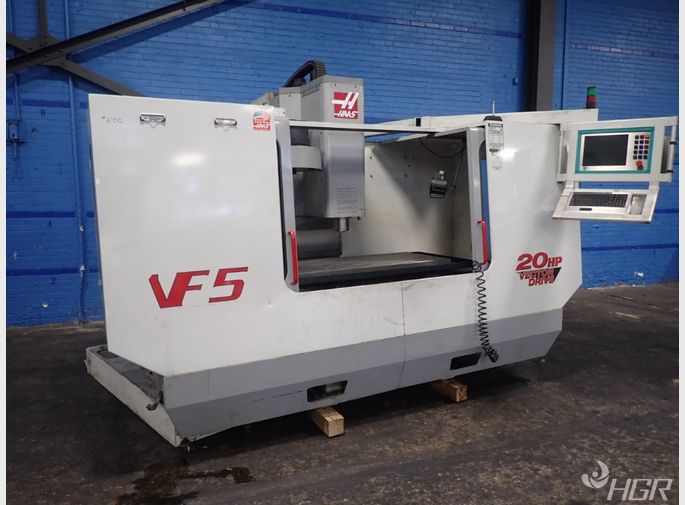

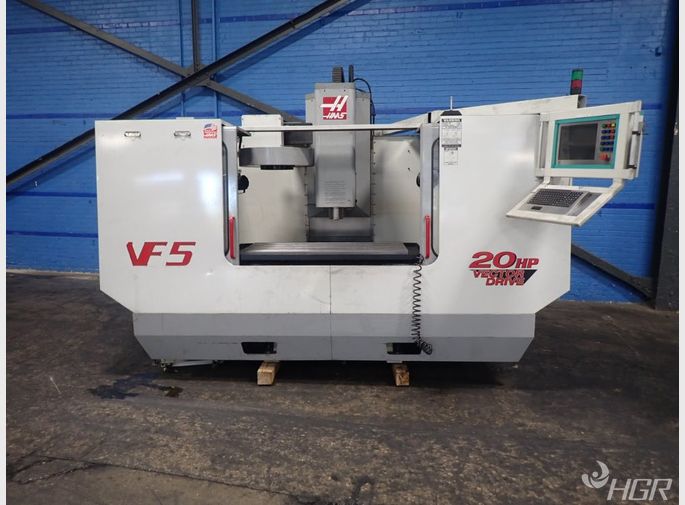

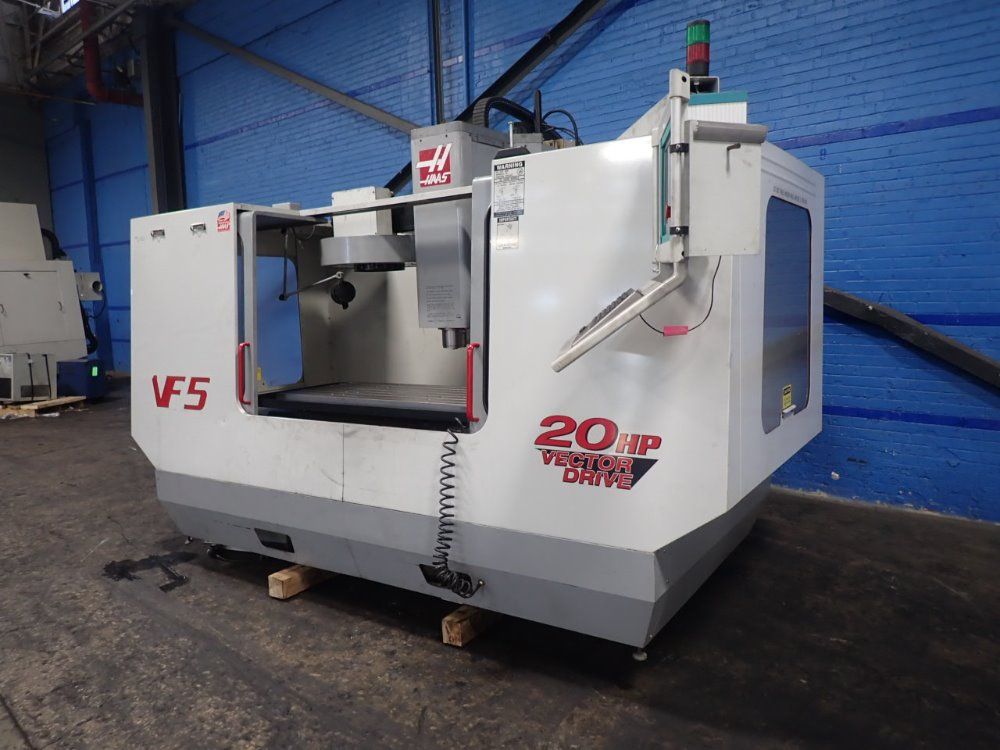

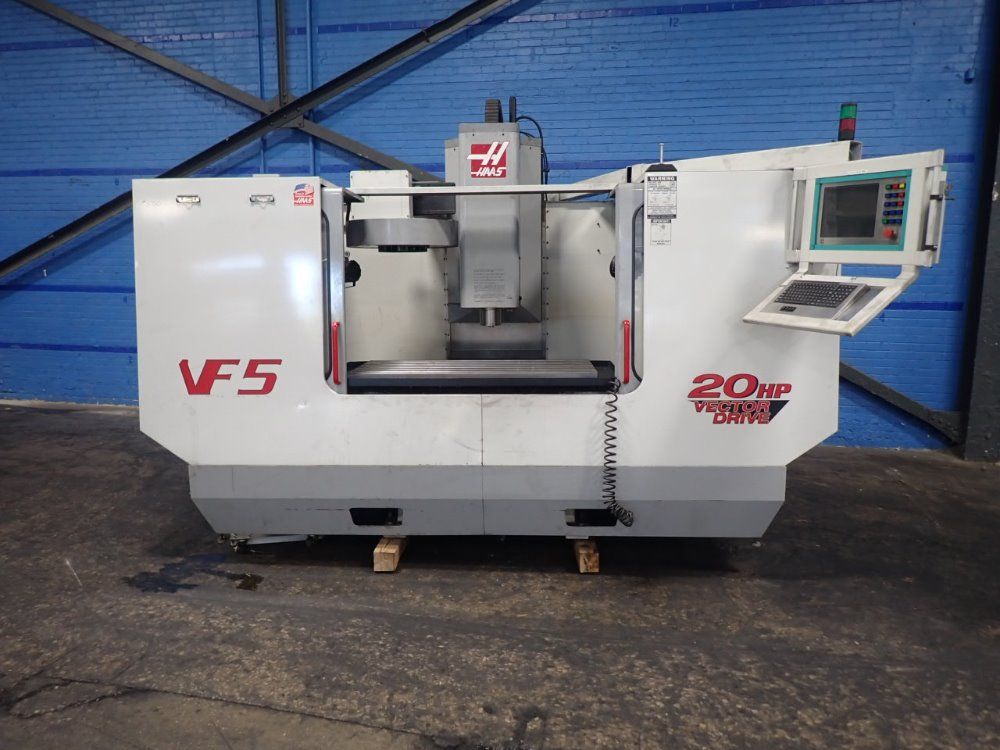

Haas Vf5 has 10000 rpm, thru coolant spindle, 24 tool side mount tool changer, 4th Axis Ready, 1 MB Memory and New X Axis Ball screw. On our Floor now, fully powered tested and is in Great working condition.
Product Features:
β’ 30 Hp High Torque Spindle Motor
β’ Through-Spindle Coolant system
β’ 4th Axis Ready (drives and wiring installed)
β’ 1 MB Program Memory
β’ Remote Jog Handle
β’ Rigid Tapping
β’ High Speed Machining
β’ Advanced Tool Management
β’ Power Failure Detection Module
β’ User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
β’ Brush-type servo drive motors on all axis

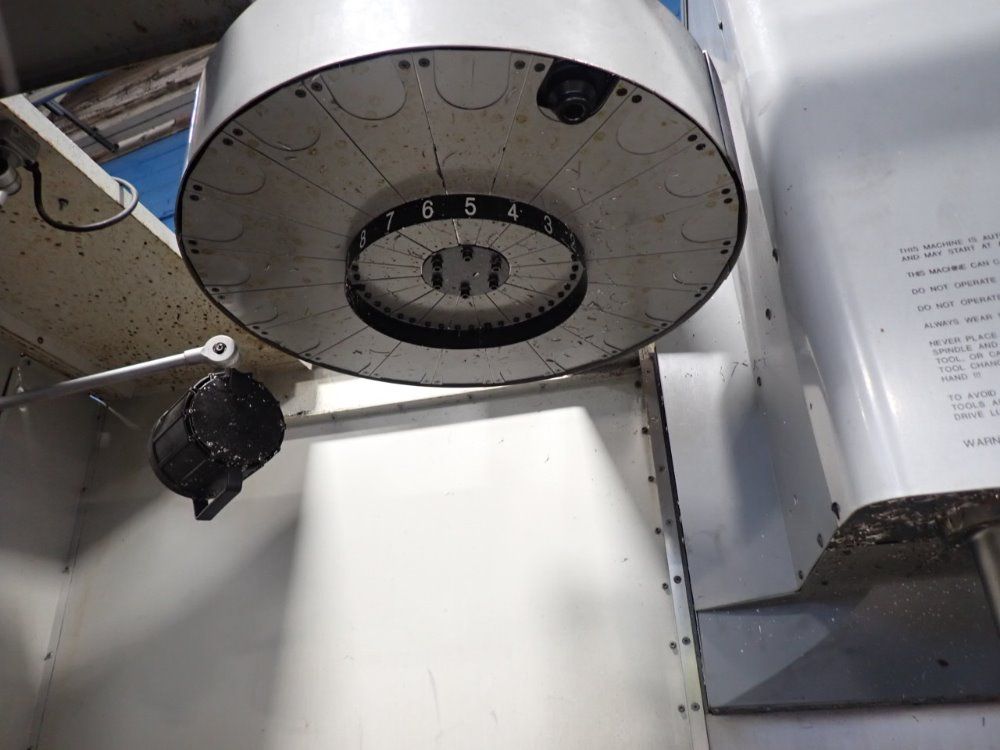

β’ 24 automatic Side Mount tool changer
β’ Programmable coolant
β’ Telescopic way covers

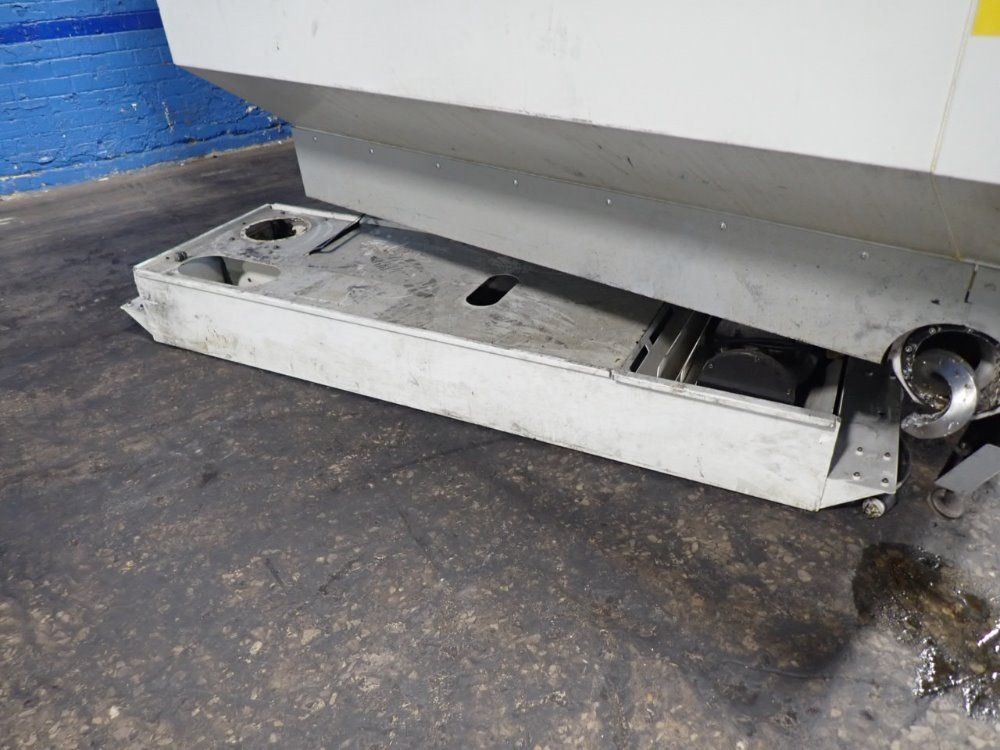

β’ Chip auger
β’ Floppy Drive
β’ High Intensity Lighting
β’ 95-Gallon flood Coolant system
General:
Manufacturer: Haas
Model Name: Vertical Machining Center
Model Number/MPN: VF5
Inventory Number: 0920-150-0010
Series: 19109
Make Year: 1999
Condition: Very Good
Power Requirements:
Air Required: 100 psi, 4 scfm
Power: 220V, 3-Phase
Travels:
Cutting Feed Rates: 650 ipm
Spindle:
Speed Range: 0 to 10000 rpm
Spindle Power: 30 hp
Max Torque: 90 ft.-lb, 2000 rpm
Specifications:
Aisle: 07B
Bay: 3800
Weight (lb): 14990 lbs.
Capacity: 23 x 52 in.
Overall Dimensions: 136 x 100 x 105 in.
Travels:
X-Axis: 50 in.
Y-Axis: 26 in.
Z-Axis: 25 in.
Rapid Traverse Rates: 1000 Inch Per Minute
Spindle Nose to Table (Min.-Max.): 4 to 29 in.

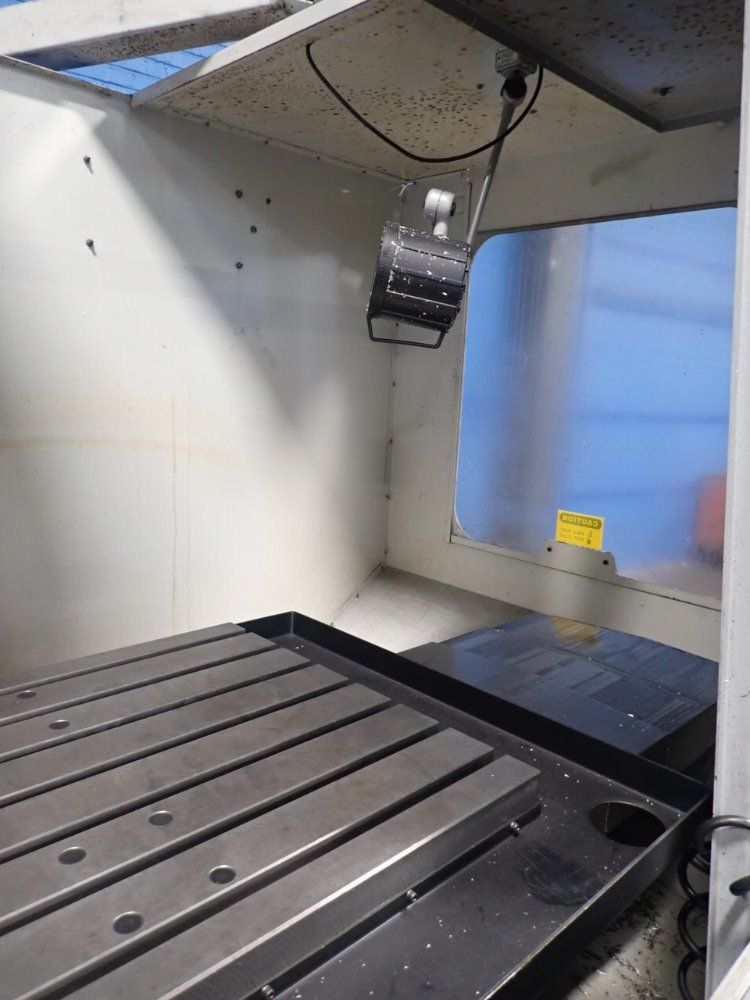

Table:
Length: 52 in.
Width: 23 in.
Number of Std T-Slots: 7
T-Slot Width: 5/8 in.
Spindle:
Taper Size: CAT 40
Automatic Tool Changer:
Max Tool Diameter: 6 in.
Max Tool Length: 16 in.
Tool Changing Time: 3.0 Sec
