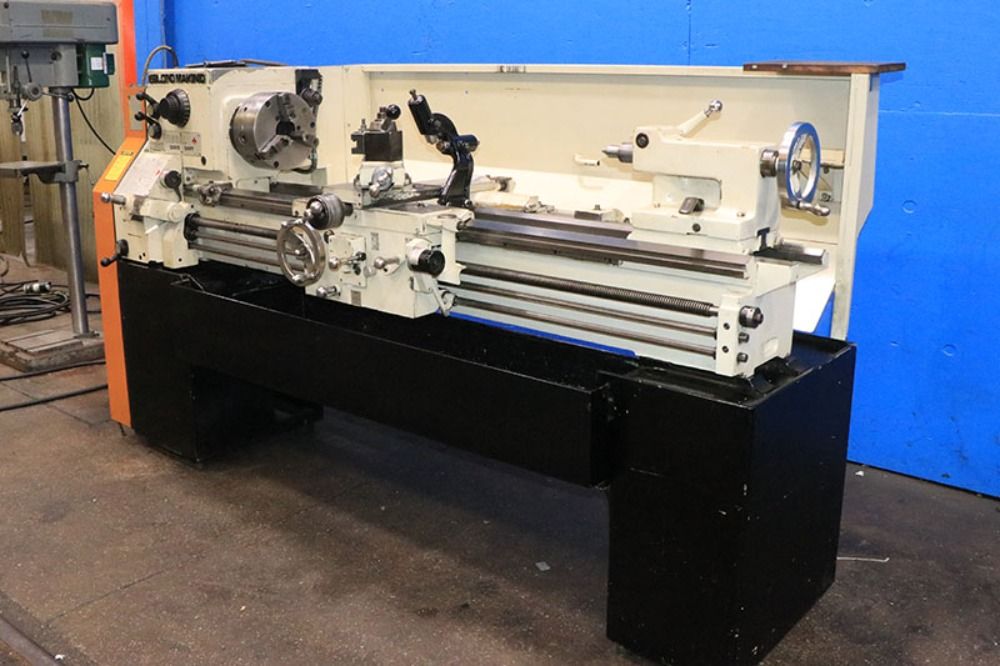

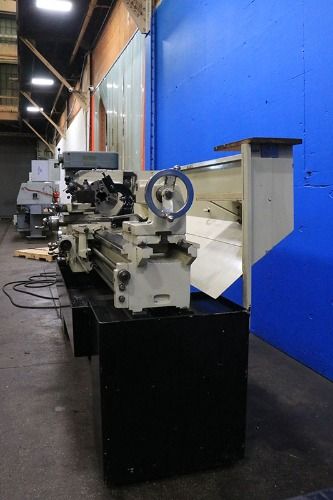

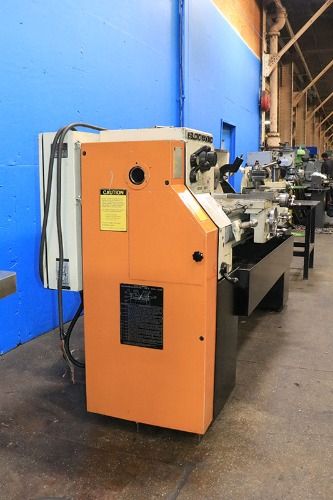

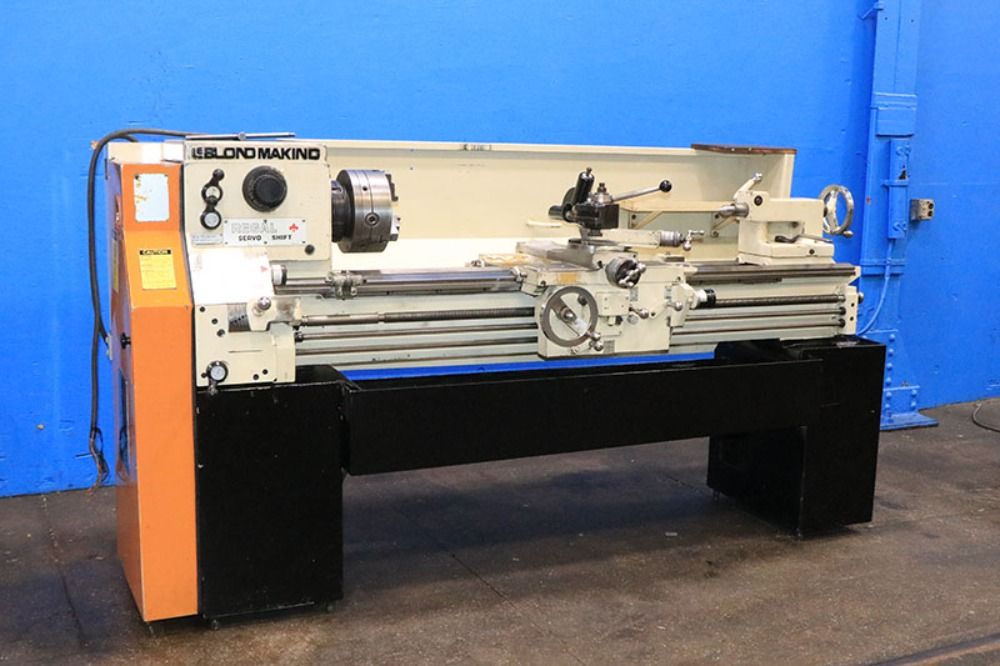

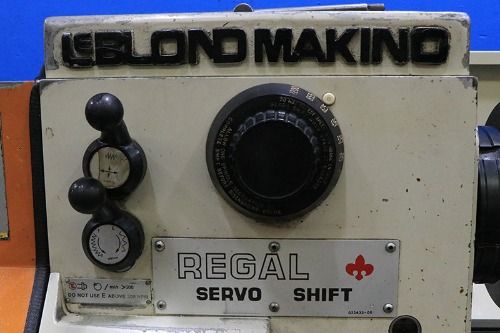

1994 Leblond Makino 15" Regal Servo Shift Engine Lathe
Shop for Leblond Makino Equipment
$14,500
Inventory No.
0624-079-0003
Manufacturer
Leblond Makino
Model No.
15 REGAL
Dimensions L x W x H (inches)
Unavailable
Capacity
15" X 54"
Electrical
-
Weight (lb.)
1
Category
Condition
Used
Quantity
1

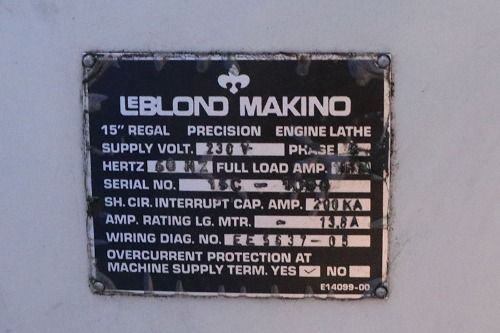

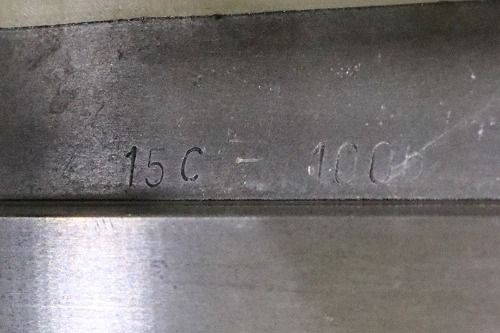

Serial No.
15C-1006
Make Year
1994
Item Details

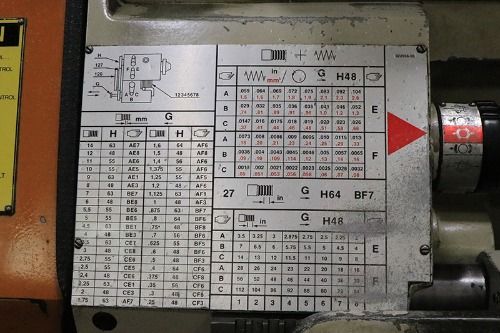

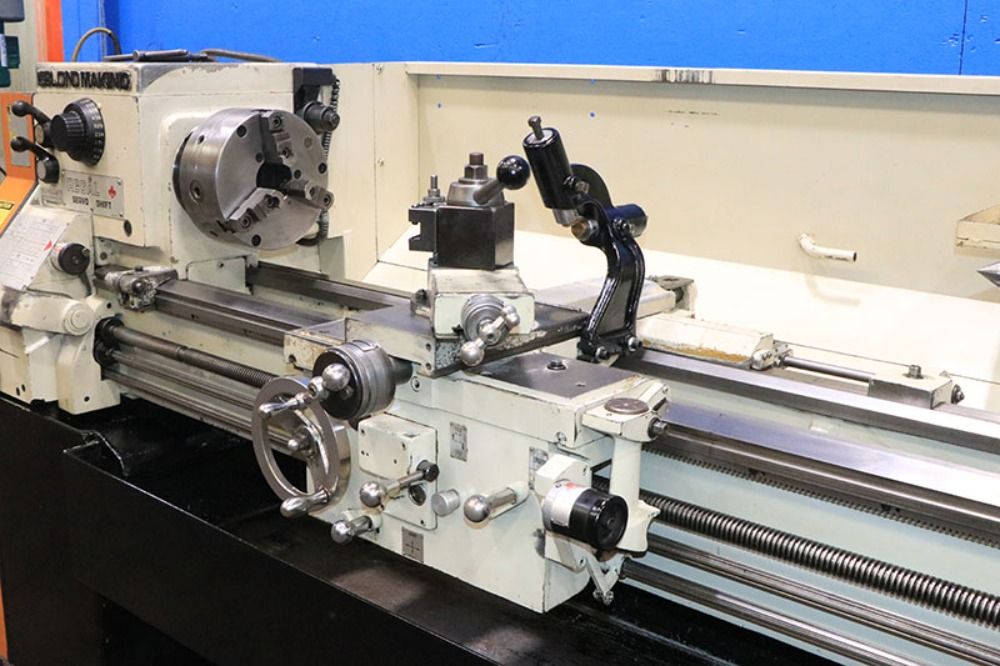

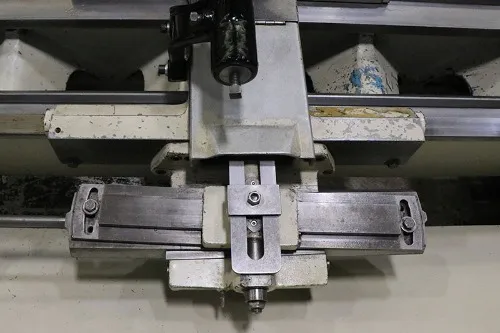

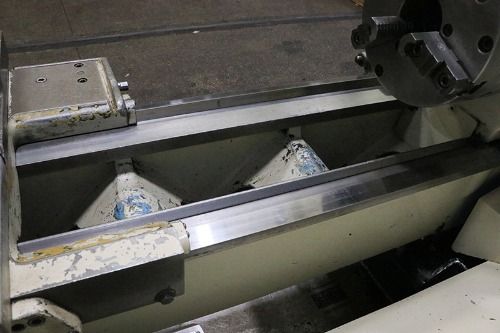

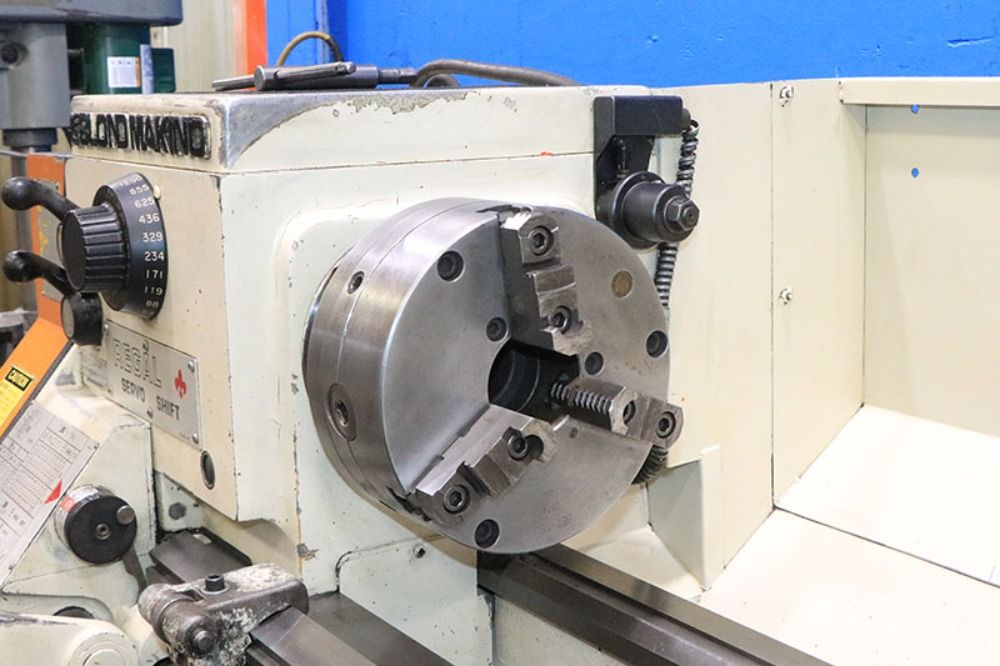

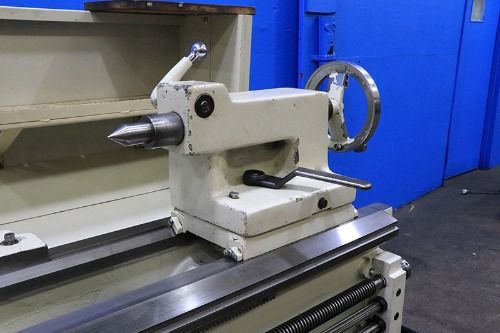

Specifications: Swing Over Bed .................... 15-1/2" Swing Over Cross Slide ............ 9-1/2" Distance Between Centers .......... 54" Spindle Nose Threaaded ............ L1 Hole Thru Spindle ................. 2-17/64" Spindle Speed Range (12) .......... 30 - 1200 Rpm Longitudinal Feed Range (48) ...... .0018" - .104" Ipr Cross Feeds Half The Values Of Longitudinal Threading Range English (48) ...... 2 - 112 Tpi Threading Range Metric (40) ....... 0.25 - 14 Mm Tailstock Spindle Travel .......... 5" Tailstock Spindle Taper ........... #4 Mt Approx Weight ..................... 3,300 Lbs Approx Dimensions ................. 104"l X 40"w X 51"h Equipped With: Inch & Metric Threading Capability Inch/metric Handwheels 10" 3-jaw Bison Chuck Taper Turning Attachment Aloris Model: Ca Quick Change Toolpost Follow Rest Dead Center For Tailstock Thread Dial Indicator Micrometer Carriage Stop Coolant System With Removable Chip Pan Hardened & Ground Replaceable Bedways 7.5 Horse Power Main Motor Inspect Under Power In Our New Jersey Warehouse
warehouse This item is located at an Off Site facility
About This Item
There is no additional information for this item.
