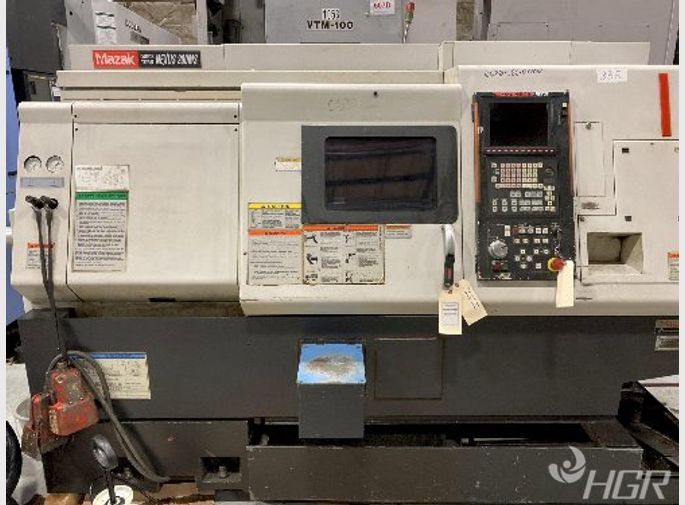

Mazak
QTN 200MS
-
-
-
Year 2003, Mazatrol 640t Nexus Control Sub Spindle Live Tooling Full C-axis 0.0001 Deg Parts Catcher. If Interested Please Contact John Miller @ 636-222-0098 Or Email Jmiller@hgrinc.com. 0720-009-0001
About This Item
Product Overview:
The QUICK TURN 200MS CNC turning center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops large and small.
The QUICK TURN 200MS comes with the SmoothG CNC that features MAZATROL conversational programming, complete with monitoring and diagnostics, and EIA-ISO programming as standard. Along with a standard through-hole chuck package and integral turning spindle motor, this QUICK TURN features milling (M) capability to efficiently process a wide range of parts in a single setup. For fully automated operations, the machine can be optionally outfitted with a bar feeder or gantry robot loader for even higher levels of productivity.
Product Features:
Powerful Main Turning Spindle
Rotary Tool Milling Spindle
Second Turning Spindle
Through-Hole Chuck Packages on Main Spindle (Second Spindle Is Optional)
Automatic Tool Eye
Easy Integration of Bar Feeders and Gantry Robots
General:
Manufacturer: Mazak
Model Name: Horizontal CNC Lather
Model Number/MPN: QTN 200MS
Inventory Number: 0720-009-0001
Make Year: 2003
Power Requirements:
Main Spindle:
Maximum Speed: 5000 rpm
Motor Output: 35 hp, 26 kw
Second Spindle:
Chuck Size: 6 in.
Maximum Speed: 6000 rpm
Motor Output: 10 hp, 8 kw
Turret:
Maximum Speed: 6000 rpm
Specifications:
Aisle: OFF
Bay: SITE
Weight (lb): 10000 lbs.
Capacity:
Maximum Swing: 26.50 in.
Maximum Machining Diameter: 14.750 in.
Maximum Bar Work Capacity: 2.6 in.
Maximum Machining Length: 22.701 in.

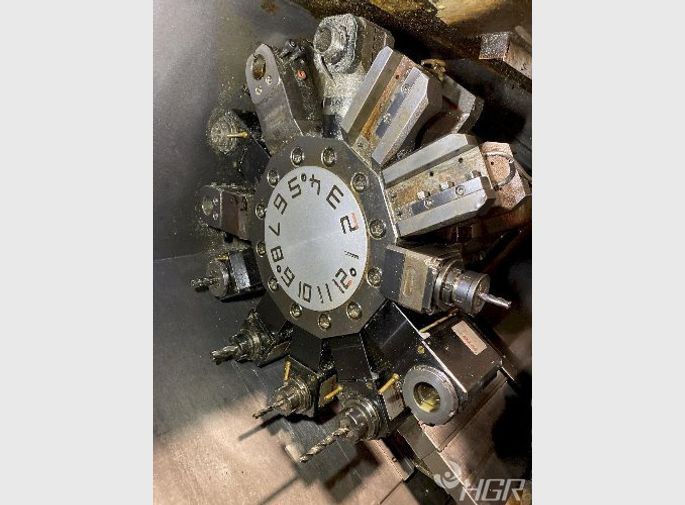

Turret:
Number of Tools: 12
Feed Axes:
Travel (X Axis): 9 in.
Travel (Z Axis): 22.63 in.
Travel (W Axis): 23 in.
