Additional Information:
Product Overview:

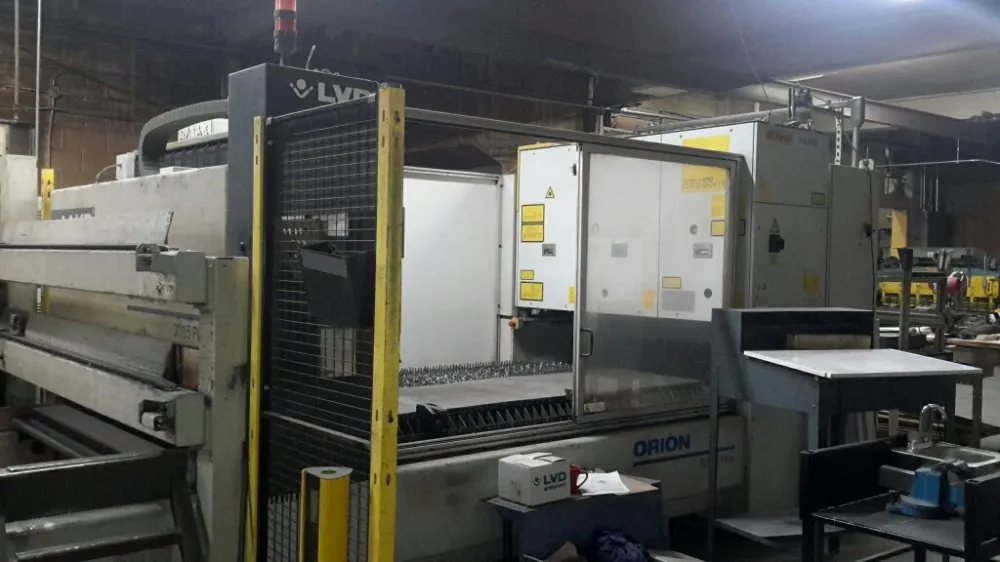

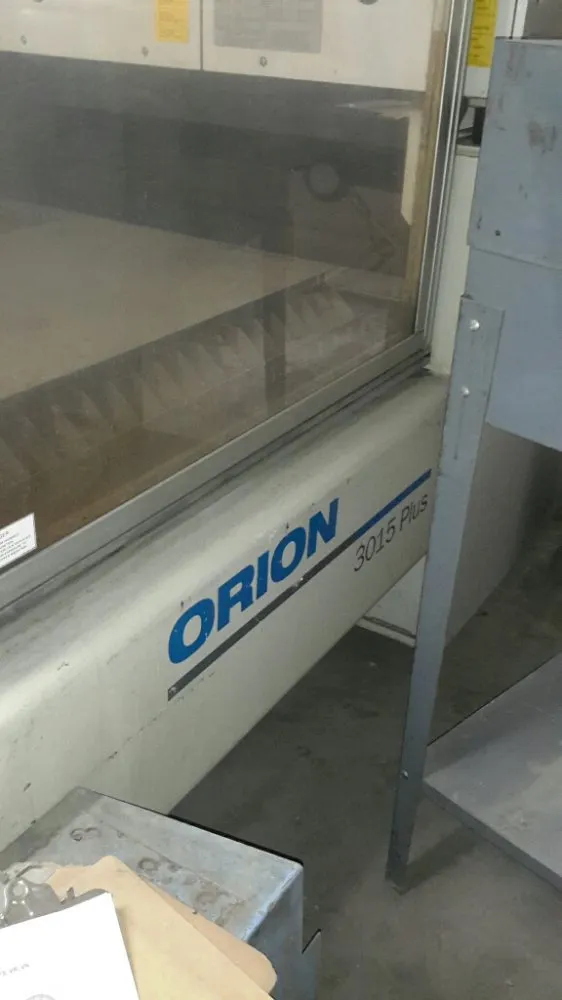

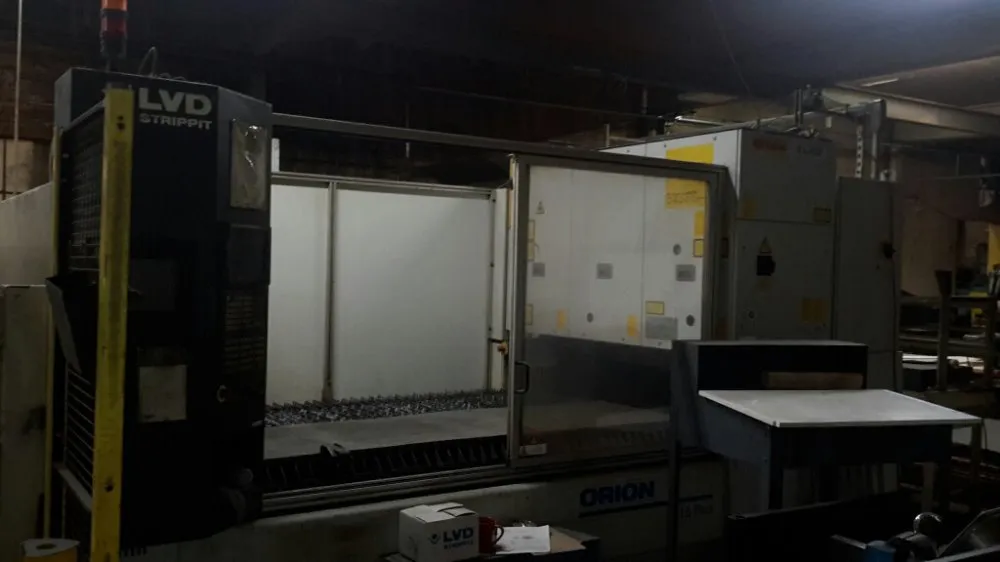

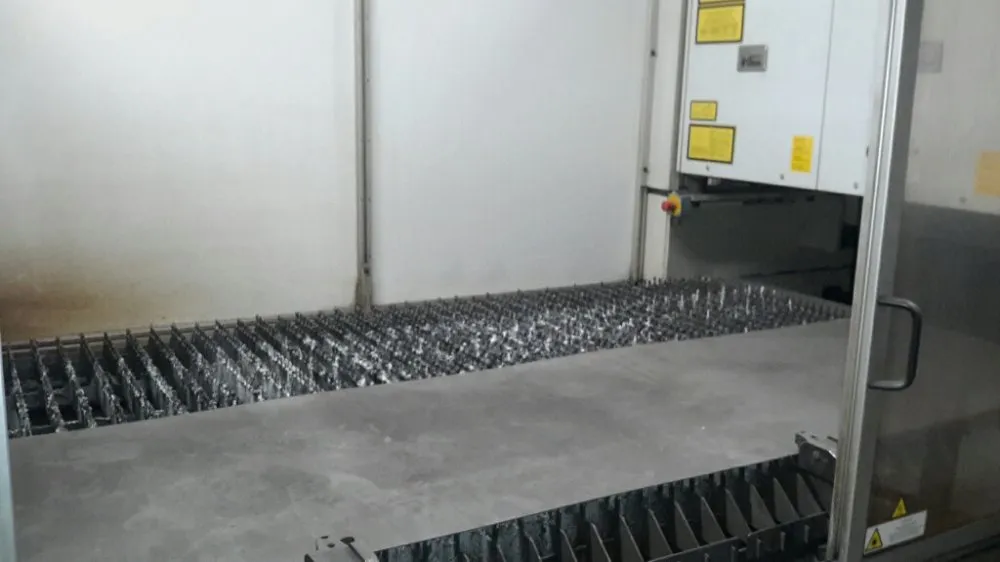

For entry level, cell manufacture and general laser cutting applications, the Orion 3015 Plus CO2 laser cutting system is both efficient and affordable. Quick setup and automatic features make processing fast and keep productivity high. An integrated laser cutting and control package ensures accuracy and reliability.
Product Features:
Ergonomic Design: Orion’s hybrid design delivers the laser beam to the cutting head in the most efficient and cost effective method, providing the lowest part processing cost. The ergonomic design provides full access on three sides of the system for fast and efficient loading and unloading plus good visibility of the cutting area while processing.
Compact Foot Print: Orion has one of the smallest footprints for a machine of its processing capacity.
Simple And Fast Installation: A robust frame construction ensures that no special foundations are required. Installation is a simple and fast procedure with the machine ready for action within a very short period of time.

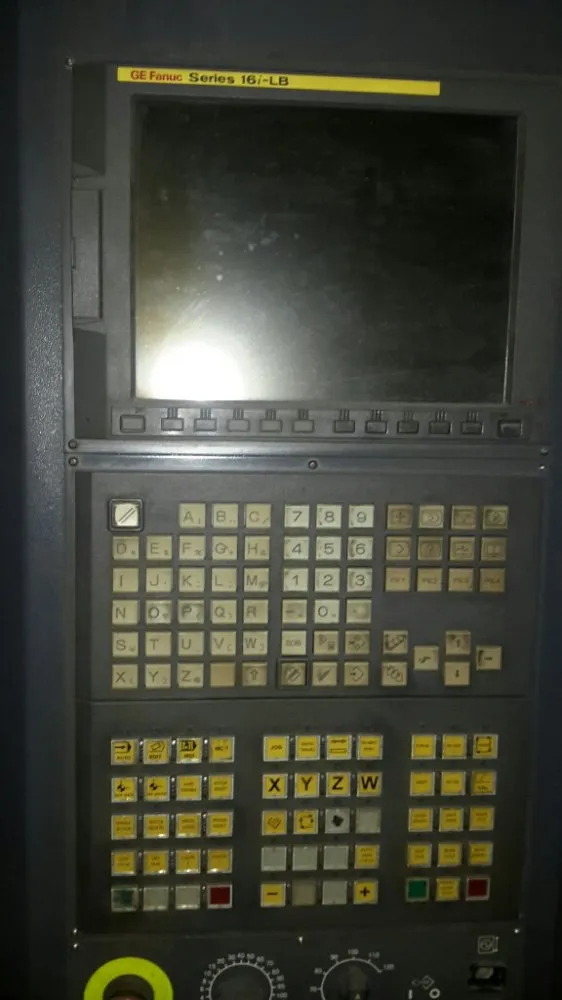

Touch Screen Control: LVD Strippit’s Touch-L touch screen graphic user interface allows any level of user to simply and intuitively interact with the Orion. The ease of the Touch-L interface keeps operator input to a minimum regardless of the application. Set ups are fast and uncomplicated.
General:

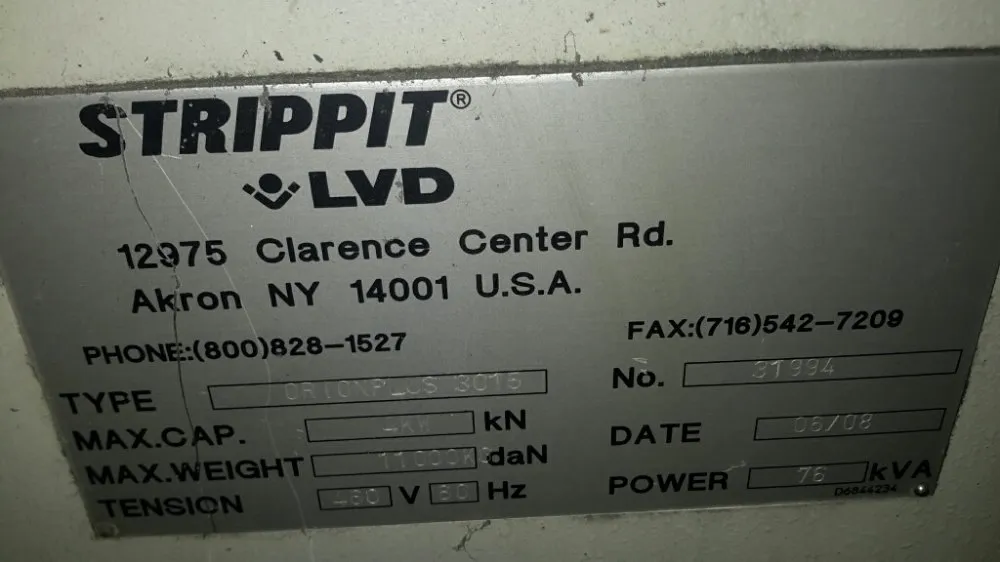

Manufacturer: Strippit/lvd
Model Name: CNC Laser
Model Number: ORIONPLUS 3015
Inventory Number: 0320-124-0002
Category: CNC
Make Year: 2008
Technical Specifications:
Max. Sheet Size: 60 x 120ft.
Max. Sheet Weight: 1250 lbs.
X-axis Travel: 121 in.
Y-axis Travel: 61 in.
Z-axis Travel: 9.5 in.
Repetitive Accuracy: 0.001
Positioning Accuracy: 0.002
Material Capacities: 2500 W
Steel: 5/8
Stainless Steel (N2): 3/8
Aluminium: 1/4
General Specifications:
Machine Dimensions: Length31ft x Width15ft x Height 8ft,
Max. Sheet Size:120 x 60 x 1/2 in.
Max. Stack Weight: 5,000 lbs.
Max. Stack Height: 3.9

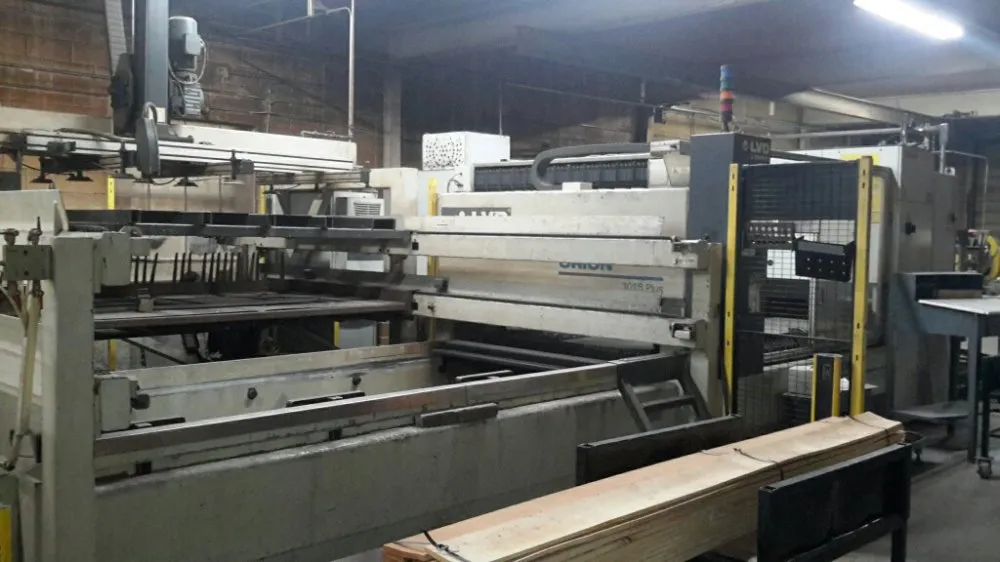

Footprint (Orion Plus including auto load unit): Length 30ftxWidth22ftxHeight 13ft

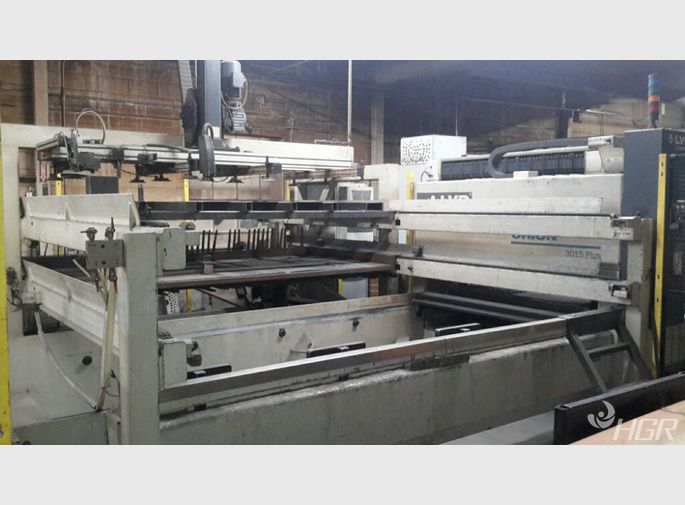

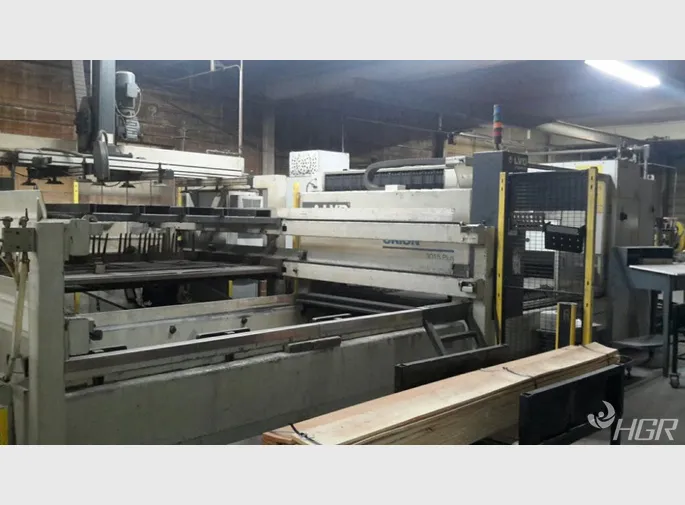

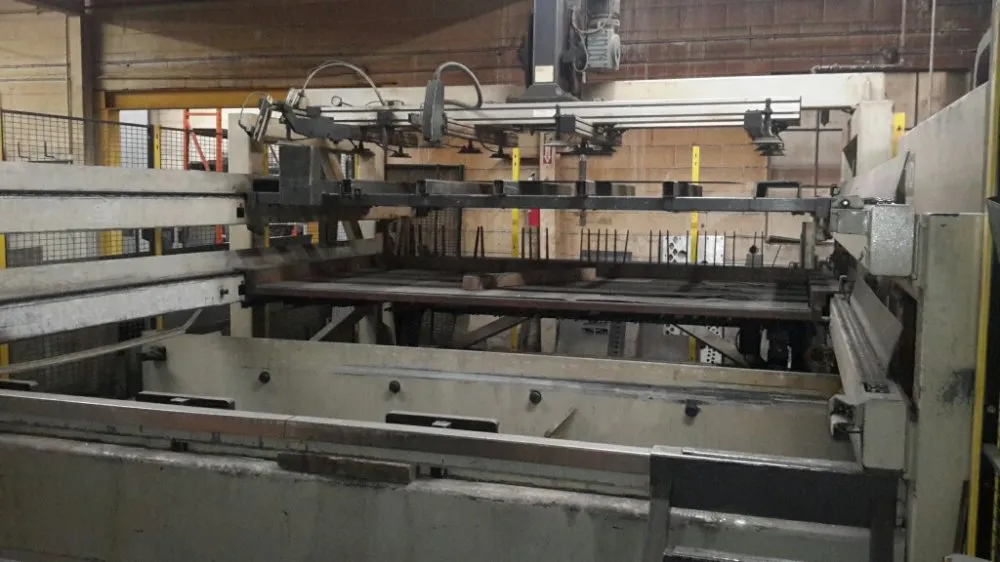

Compact Tower:
Max. Height of Pallet: 9.5 incl. wooden pallet
Footprint: Length:30ft x Width24ft
Max. Sheet Dimensions: 120 x 60 x 3/4 in.
Min. Sheet Dimensions: 36 x 36 in.
Weight: 28660 lbs.
