Crl Glass Machinery
SS6060FT
60" X 60"
-
69121
0920-170-0006
About This Item
Product Overview:

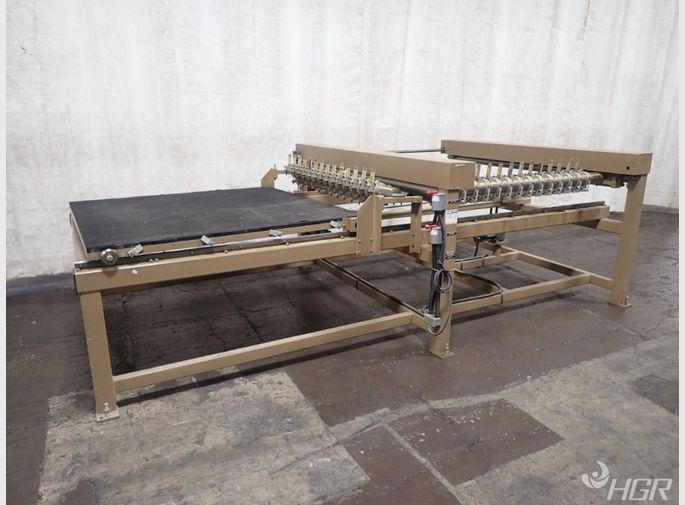

CRL Stalter X-Y Glass Cutting Machines are designed for quick and accurate cross-cutting of glass lites of various sizes where being square is important. The Machine is furnished with six Cutting Heads and six Carbide Wheels, with three on each bridge. The Controls are simple directional switches for X and Y movement of the table and movable bridge. Electrical consists of two 1/4 HP motors wired for single phase, 110 VAC power. The X-Y Machine is 47"" (1.19 m) high, and the Pass Line is 37"" (940 mm) tall. Sizes other than those listed are available on special order. An Air Flotation Table Option is available for any size machine, as well as a Hard Surface Option for use with thin glass to replace the felt table top.
Product Features:
• Capable of Making Up to 3600 1"" (25 mm) Square Glass Tiles in Less Than a Minute
• High-Speed, High-Volume Square and Rectangular Glass Cutting
• Split-Head Design Allows Extra Cutter Heads to be Added or Removed Quickly
General:
Manufacturer: Crl Glass Machinery
Model Name: Glass Cutter
Model Number/MPN: SS6060FT
Inventory Number: 0920-170-0006
Series: 69121
Make Year: 2012
Power Requirements:
Voltage: 1-Phase, 60 Cycle
Power: 20A, 110 Vac
Specifications:
Aisle: 10B
Bay: 1500
Weight (lb): 1880 lbs.
Capacity: 60 x 60 in.
