Krb Shear

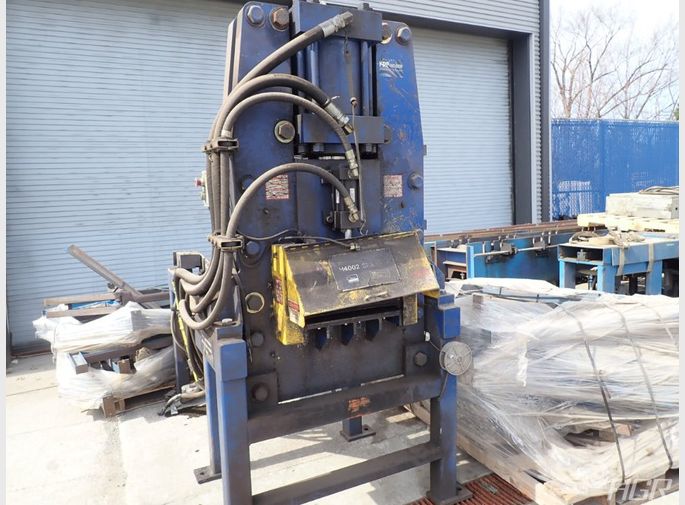

Krb H4002 Shear W/shearline
This item has been sold.
View additional items for sale in the Fabrication category.
Inventory Number 0320-187-0001 |
Quantity 1 |
ManufacturerKrb Shear |
Model NumberH4002 |
Serial Number08 SH0681 |
Make Year |
Capacity18" |
Electrical3/60/460 |
Dimensions L x W x H (inches)Unavailable |
Weight (lb) 20520 |
Showroom Aisle 60F |
Showroom Bay |

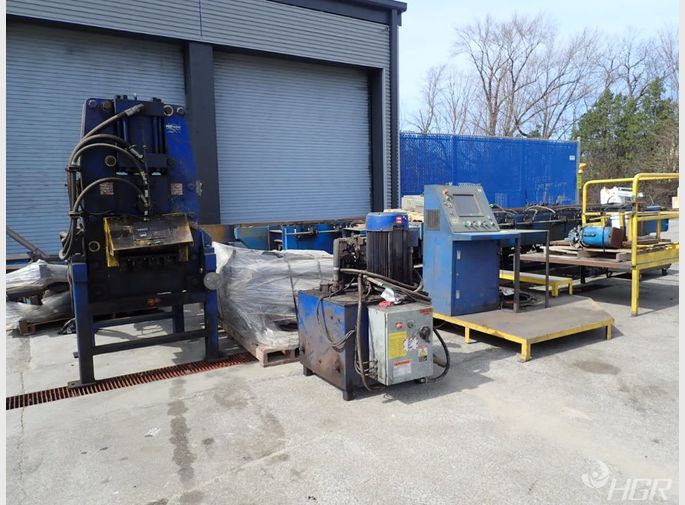

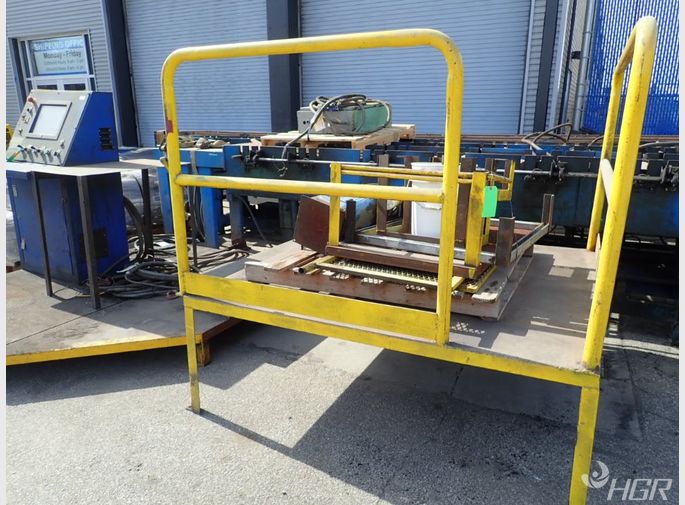

Item Details30 Hp Hydraulic Unit, 23" X 35" X 18" Tank, 68" X 68" X 24" Platform, Shearline (serial No# Pf99sl260) 4 Conveyors 240" 356" 430" 300", *contains 14 Pieces 0320-187-0001 |
Additional Information:
The H-4002 Hydraulic Shear is designed to work with virtually any shearline, including existing shearlines. It is available with an automatic entry table which lowers as the bars are being cut and provides an even, non-binding cut. Since the movable cutting head is on the input side, scrap and short pieces will fall automatically into a scrap hopper which is provided. This relieves the operator from having to reach under the shear head to remove short pieces.
30 hp (22.4kW) 230/460 vAc 3-Phase 60Hz standard other voltages available upon request
All electrical controls are U.l. (Underwriters laboratories) and c.U.l. listed.
All wiring meets n.e.c. (national electrical code) Standards.
All electrical enclosures meet neMA 4/12 rating. (Watertight, dust tight, oil tight).
