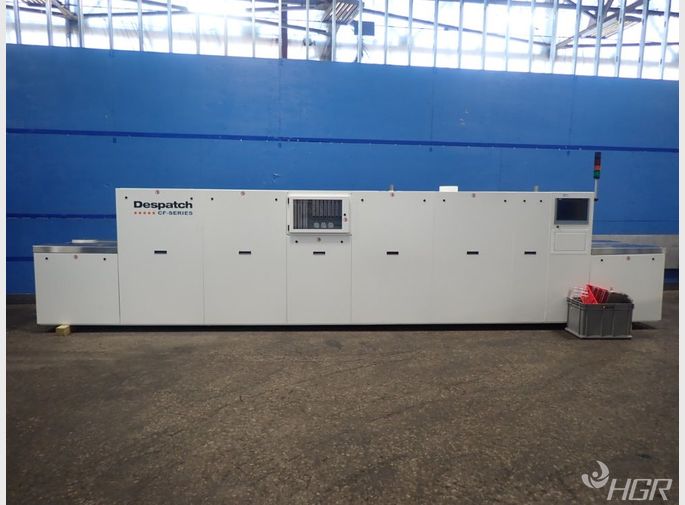

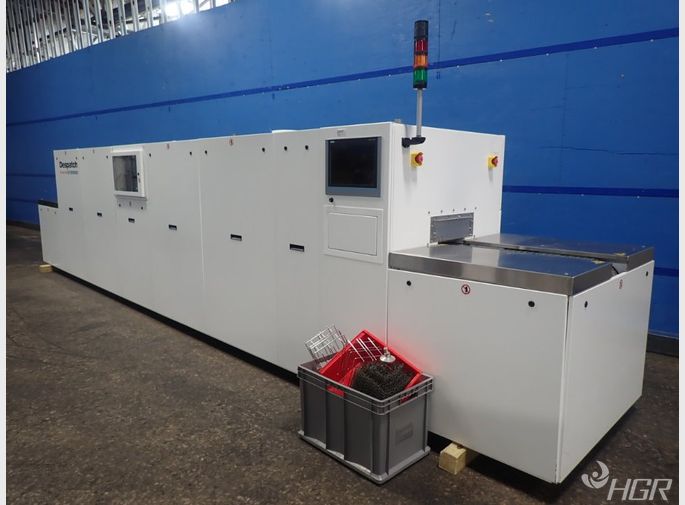

Despatch Cdf-sl-2016 Conveyorized Drying Furnace

Shop for Despatch Equipment

This item has been SOLD.
Inventory No.
0820-075-0001
Manufacturer

Despatch

Model No.

CDF-SL-2016

Dimensions L x W x H (inches)
Unavailable
Capacity

9" X 1832 DEG F

Electrical

3/50/60/380

Weight (lb.)
4631
Category
Condition
See Details
Quantity
1
Serial No.

193271

Make Year
2017
Item Details

W/manuals, Siemens Simatic Hmi Control, *contains 2 Pcs 0820-075-0001

chat Contact Us circle

Chat with a sales rep to purchase a product, ask questions, or for technical support. You can also fill out a form and submit an inquiry.

About This Item

Product Overview:
Despatch CF-Series metallization furnaces are designed for high throughput, ease of maintenance, and consistent process repeatability ensuring consistently high yields and superior product quality. Patented push-button chamber access and optional VOC Thermal Oxidizers make maintenance a snap. These innovations maximize performance and up time and result in lowest cost of ownership while producing the highest efficiency cells.

Product Features:
Rapid thermal ramping (up to 200°C/sec)
Enhanced thermal cooling (up to 200°C/sec)
Up to 300 ipm belt speed u Uniform,
stable and repeatable cavity temperature (+/- 2°C)
Mesh belt with stand-offs
Soft start with reduced connected load
Enhanced software recipe management
Advanced graphical user interface
Master production control interface
Data logging
Redundant over-temperature shutdown
Safe, simple chamber accessibility
Eye-level electronics for easy maintainance
Failed element monitor
Uninterruptible power supply
Integration to wafer automation equipment

General:
Manufacturer: Despatch
Model Name: Conveyorized Drying Furnace
Model Number: CDF-SL-2016
Inventory Number: 0820-075-0001
Serial Number: 193271
Category: Heat Treating
Make Year: 2017

Power Requirements:
Voltage: 380–480V/3Phase/50–60Hz
Connected load: 70 Amps

Specifications:
Overall length: 1147 cm (451.5 in.)
Overall width: 121 cm (47.5 in.)
Overall height: 164 cm (64.5 in.)
Standard entrance/exit table: 93.5 cm (36.8 in.)
Open inspection area: 46 cm (18 in.)
Conveyor height above floor: 91.5-99 cm (36-39 in.)
weight: 7500 lbs.
