This item has been SOLD.
Inventory No.
0320-131-0001
Manufacturer
Kern
Model No.
KER52100-G150 HSE
Dimensions L x W x H (inches)
Unavailable
Capacity
52" X 100"
Electrical
1/60/208/230
Weight (lb.)
4180
Category
Condition
See Details
Quantity
1
Serial No.
KERGB33307
Make Year
2007
Item Details

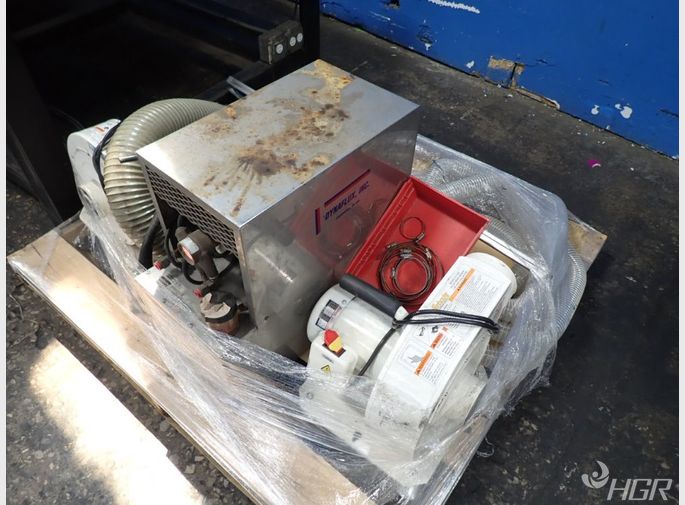

W/dust Collectors, Coolant Unit, *contains 2 Pieces 0320-131-0001
About This Item

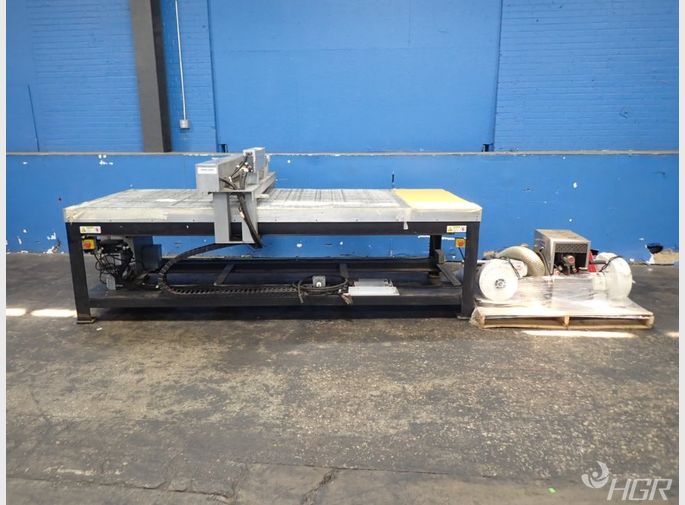

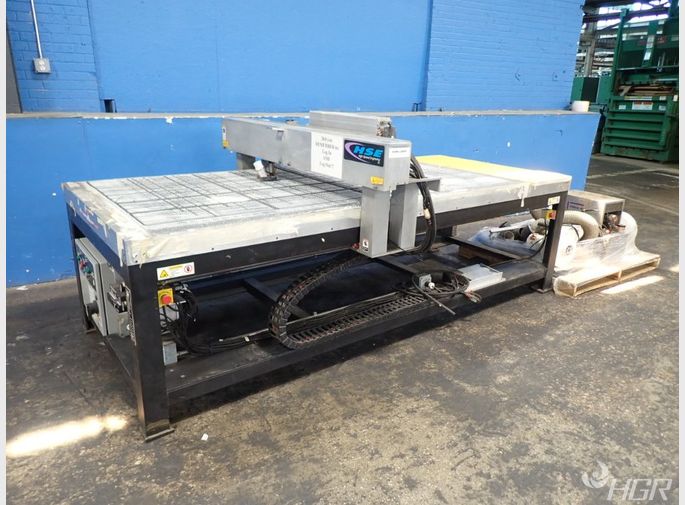

The HSE machine consists of a rectangular frame that is constructed from heavy angle section steel. The frame has four uprights on each corner, which act as legs. These support a worktop table that is made of steel plates. The table has a flat base and is welded on top of the legs. There are ribs that run the full length of the worktop to stiffen the table. These are structural members and are deep enough to create a plenum for the extraction of dust or toxic fumes generated during engraving or cutting operations. Aluminium ecolite and honeycomb grid layers form the worktop. Two flexible ventilation hoses are connected to the end of the worktop tray and these are used to place the table under vacuum. A blower is provided to create a vacuum and collect dust and toxic fumes. Worktop grids are designed to suit the various materials that can be cut or engraved by the laser system. Materials to be cut or engraved must be flat to within 1 mm to 2 mm. This flatness will ensure that the material will be held under vacuum. Crossbeams run between the legs at a lower level. These are positioned above floor level and are covered by flat plates on three sides. The flat plates receive the control system enclosure and a DC power supply and guide a roll track.
