This item has been SOLD.
Inventory No.
0221-163-0001
Manufacturer
Pva
Model No.
UV5000
Dimensions L x W x H (inches)
Unavailable
Capacity
U196
Electrical
3/60/208
Weight (lb.)
550
Category
Condition
See Details
Quantity
1
Serial No.
-
Make Year
2010
Item Details
0221-163-0001
About This Item
Product Overview:

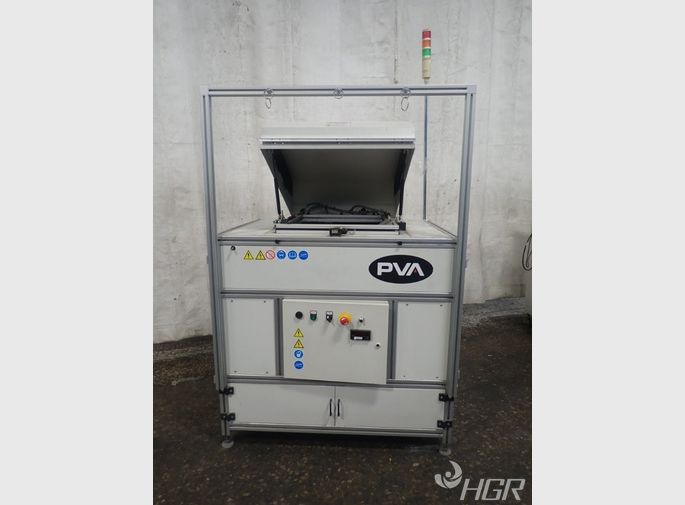

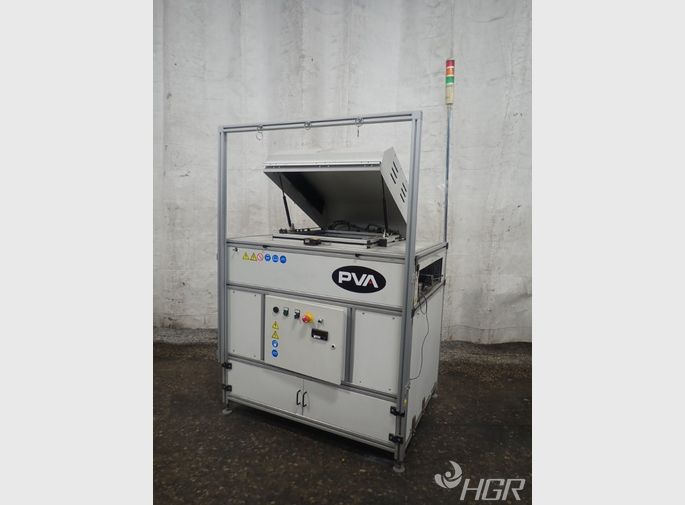

The UV5000 is a compact UV curing module suitable for high intensity, rapid curing of UV coatings, adhesives, and inks. Each lamp features UV light in a concentrated 12.7 cm x 12.7 cm (5” x 5”) area primarily in the UV-A range (320-390 mm wave length). Lamps are easily combined to offer curing widths out to 508 mm (20 in).
Product Features:
• Edge carrying, variable speed pin chain conveyor
• Rail expansion compensation
• SMEMA communication protocol
• Power supply and reflector housing
• Longwave, shortwave, and visible UV bulbs available
• Graphic LCD display with keypad
• 2000 hour manufacturer’s bulb warranty
• Easy UV lamp access via overhead hatch door
General:
Manufacturer: Pva
Model Name: Ultra Violet Curing Oven
Model Number/MPN: UV5000
Inventory Number: 0221-163-0001
Make Year: 2010
Specifications:
Aisle: 09A
Bay: 1400
Weight (lb): 550 lbs.
Capacity: U196
Power Requirements: 220VAC, +/-10%, 50/60 Hz
UV Cure Lamps: 400W Metal Halide Bulb
UV Cure Width: 5, 10, 15 or 20 in. standard
Conveyor Speed: 0.3 m/min to 5.8 m/min (1 ft./min to 19 ft./min)
Board/Pallet Width: 51 to 508 mm (2 to 20 in.)
Component Clearance: 76.2 mm (3 in.)
Conveyor Height: 940 to 965 mm from floor (37 to 38 in., SMEMA standard)
Exhaust: 6 in. Flange provided
