Sold
This item has been SOLD.
Inventory No.
0321-098-0007
Manufacturer
Carver
Model No.
3970
Name
Carver 3970 Lab Press
Arrival Date
07-13-2025
Dimensions L x W x H (inches)
Unavailable
Capacity
-
Electrical
-
Weight (lb.)
830
Category
Condition
See Details
Available Quantity
1
Serial No.
3970-166
Make Year
-
Item Details
12" X 12" Table 0321-098-0007
About This Item
Product Overview:

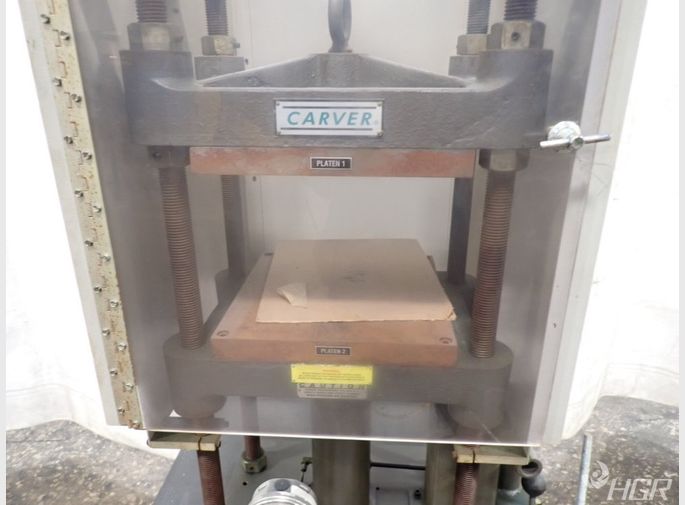

Thirty ton, Manual, four-column, Hydraulic press. Has two-speed pump, first stage for rapid closing and second for pressing mode. Fully guided moving platen assures parallelism over 12" x 12" surface. Daylight opening is adjustable up to 17". Easy-to-read dual scale analog gauge, reading in pounds force and metric tons.
Product Features:
β’ Manually operated
β’ Clamping force 30 tons
β’ Adjustable Daylight 1 to 17 in. (Factory set at 4 1/2 in.)
β’ Stroke 6β
β’ Four (4) fully threaded columns
β’ 12βx 12β work area
β’ 0-60,000 lb Analog pressure gauge, reading in 500 lb increments (digital gauge also available)
β’ Light gray safety shield
β’ Dark gray frame
β’ Dimensions: 24βL-R x 27βF-B x 45βH (un-crated)
General:
Manufacturer: Carver
Model Name: Bench Top Manual Molding Press
Model Number/MPN: 3970
Inventory Number: 0321-098-0007
Series: 3970-166
Specifications:
Aisle: 04B
Bay: 3500
Weight (lb): 830 lbs.
Product Category: Molding Machines
Machine Type: Compression Molding
Actuation: Hydraulic, Manual
Orientation: Vertical
