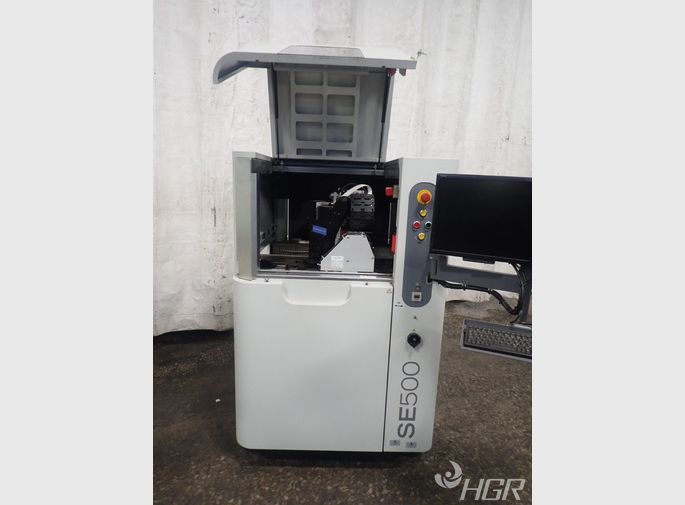

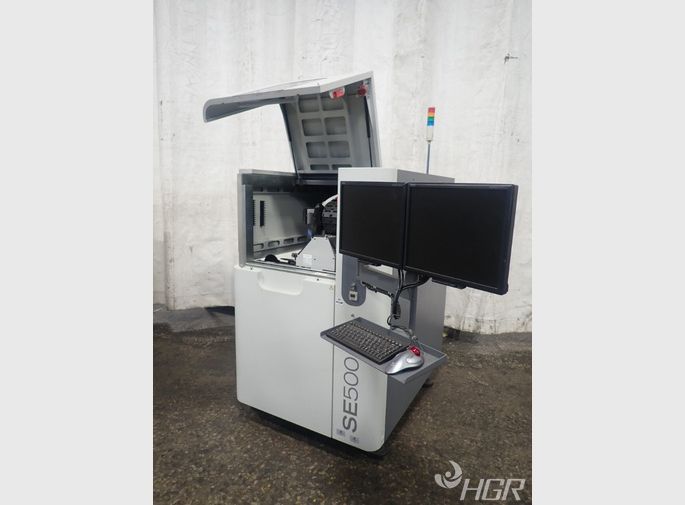

Cyber Optics 8013337/se 500 Solder Paste Inspection System

Shop for Cyber Optics Equipment

This item has been SOLD.
Inventory No.
1220-090-0135
Manufacturer

Cyber Optics

Model No.

8013337/SE 500

Name
Cyber Optics 8013337/se 500 Solder Paste Inspection System
Arrival Date
07-18-2025
Dimensions L x W x H (inches)
Unavailable
Capacity

-

Electrical

-

Weight (lb.)
1920
Category
Condition
See Details
Available Quantity
1

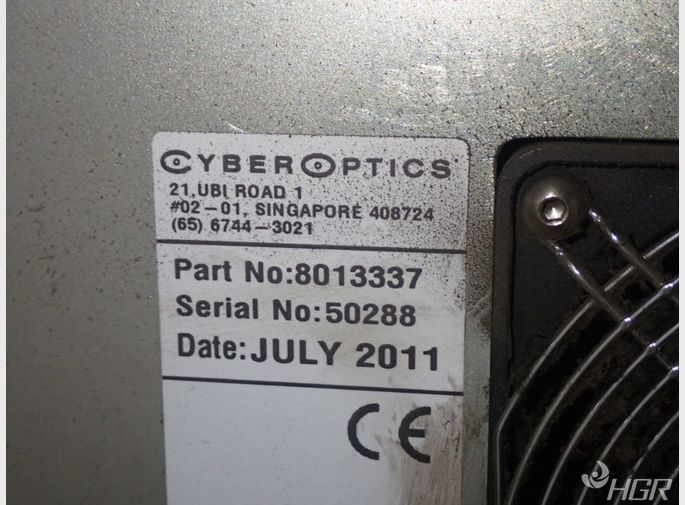

Serial No.

50288

Make Year
2011
Item Details

Year 2011 1220-090-0135

About This Item

Product Overview:
CyberOptics is the world's leading supplier of solder paste inspection systems that are used to control and monitor the most crucial process of solder paste printing in Surface Mount Technology. CyberOptics SE500 is an advanced 100 % 3-D solder paste inspection system that redefines the inspection speed. This system has the ability to inspect the most demanding assemblies at >70 sq.cm./second inspection speed that does not compromise on the measurement accuracy and repeatability. With 3000 systems installed worldwide, CyberOptics has the largest installed base of solder paste inspection equipment in the industry.

Product Features:
Fastest and Most Accurate SPI:
Building on CyberOptics proven sensor technology, SE500 can inspect the pad sizes down to 01005 component size while keeping pace with the ever increasing line speeds.
Best Value:
SE500 is designed with calibration-free sensor technology that offers the lowest cost-of-ownership.
Proven 3-D Sensing Technology:
CyberOptics patented 3-D sensing technology uses strobed white light to project patterns of structured light onto the pcb surface. The resulting images are captured by a high speed cmos camera and Phase Profilometry methods are used to compute the true height, volume and area.
Measurement Capabilities and SPC for Yield Improvement:
SE500 provides 3-D measurements for CSPs, micro-BGAs, 0201s, 01005s and other small size pads on pcb or flexible circuits where measuring solder paste volume is critical for identifying solder joint reliability. CyberOptics comprehensive process control software -"Process Insight"- allows to maximize the production line yield. By doing the real-time process monitoring, this system helps to evaluate the overall health of the factory.

General:
Manufacturer: Cyber Optics
Model Name: Inspection System
Model Number: 8013337/SE 500
Inventory Number: 1220-090-0135
Serial Number: 50288
Make Year: 2011

Specifications:
Weight: 1920 lbs.
Category: Inspection
Electrical: 1/60/220
