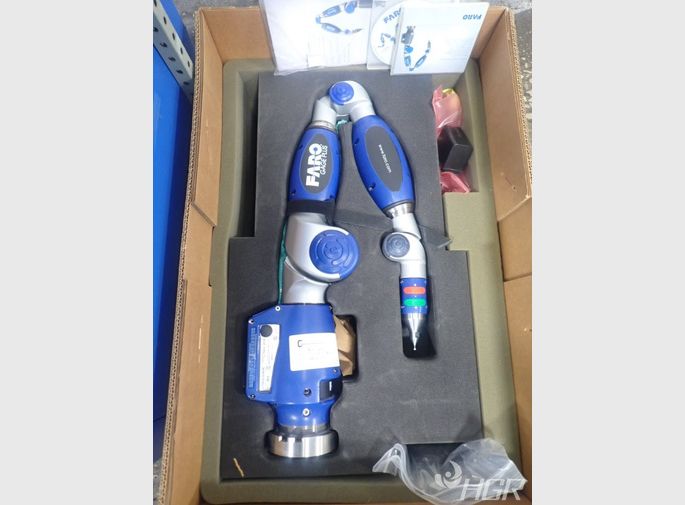

The FARO Gage measuring arm is an accurate 3D gauge for smaller parts and is an industry leader in portable CMMs. Ending the reliance on expensive and hard-to-use fixed CMMs, the FARO Gage offers high accuracy levels, improves measurement consistency, reduces inspection time, and generates automatic reports. Made specifically for shop floor personnel, the FARO Gage sets up in seconds and allows anyone to measure parts and assemblies easily, quickly, and accurately.
The FARO Gage portable CMM sets a new industry benchmark in compact performance and affordability, enabling machine shops to meet their most demanding quality specifications. The Gage allows businesses to reduce inspection time, effort, and clutter from traditional hand tools such as callipers, micrometers and height gauges. The collected data is stored directly on a computer and compared against the nominal CAD data.
Save time and money by replacing cluttered inspection areas with the one tool that can do it all the FARO Gage. Built with temperature and overload sensors that allow the FARO Gage to detect and react to change, and with internal counterbalancing that limits user fatigue, the FARO Gage maximizes accuracy, allowing your team to maintain their focus and come away with quality results.

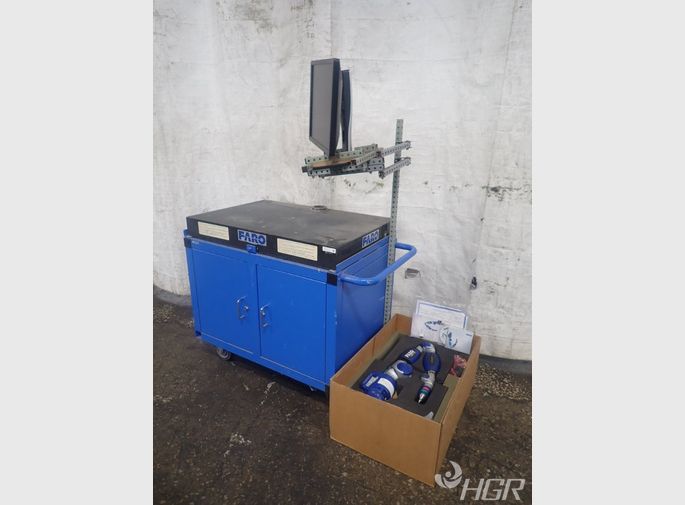

Mobile Faro Gage Plus mounted on granite table
1.2 m measuring range
Software on its PC to create measurement reports and measurement applications
Internal weight compensation
3x various clamping devices
Vacuum suction foot
Shifting and rigor sensing devices
Protection class IP 64
Test record of calibration in 2016
Model Name: Coordinate Measuring Machine (CMM)
Model Number: GAGE PLUS
Inventory Number: 0321-024-0009
Make Year: 2010
Measuring Volume: 1.200 mm (48 in.) sphere
Accuracy: +/- 0,005 mm
ISO 10360-2: 10+16L/1000
Precision: 0.001 mm
Capacity: 24 x 36 in. TABLE
Weight (lb): 571 lbs.
