California Pellet Mill Company
CL
-
-
277668

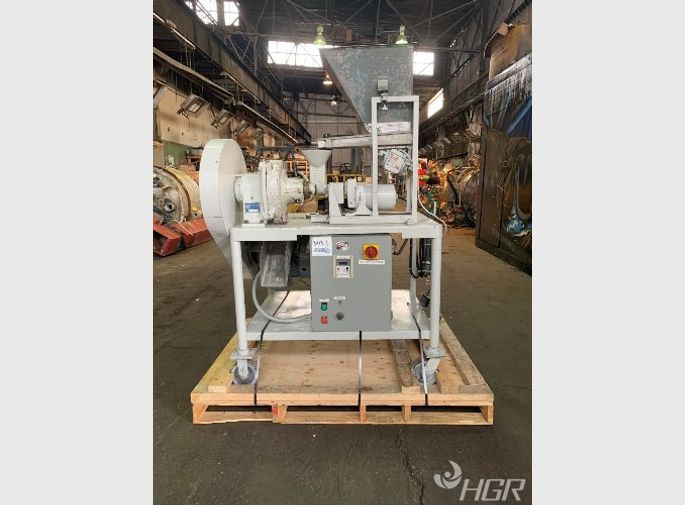

Type 3, 3 Hp, 460 Volt Main Motor Drive With Vfd Controller, .25 Hp Auger Feeder With Eriez Vibrating Feeder With Hopper, On Stand With Controls. If Interested Please Call John Miller @ 636-222-0098 Or Email Jmiller@hgrinc.com. 0819-137-0001
About This Item
Product Overview:
CL Laboratory Pellet Mills are used to test and pellet various products and to test how changes in formulas affect pellet quality and rates. The CL Series is for customers aiming for 30 to 200 pounds of pellets per hour. The CL3 Laboratory Pellet Mill is equipped with a hopper, vibratory feeder with variable speed control and front discharge of the pellets.
Product Features:
3 hp motor
Vibratory feeder
Touchscreen controls
Segmented die clamps for quicker die changes
Metal-to-metal seals between components
Replaceable quill flange
Single motor for greater efficiency
General:
Manufacturer: California Pellet Mill Company
Model Name: Pellet Mill Cpm Lab Mill
Model Number: CL
Inventory Number: 0819-137-0001
Serial Number: 277668
Power Requirements:
Motor Power: 3 hp
Rpm: 1800 rpm
Feeder Drice: 1/4 hp, 1800 rpm gear head motor
Voltage: 230-460V, 3Phase, 60Hz
Specifications:
Feeder Hopper: .9514 cu.ft.
Dimensions: 45.5L x 34.25H x 63W in.
Weight: 1000 lbs.
