Sold
This item has been SOLD.
Inventory No.
0820-024-0001
Manufacturer
Genie
Model No.
Z-45/25
Name

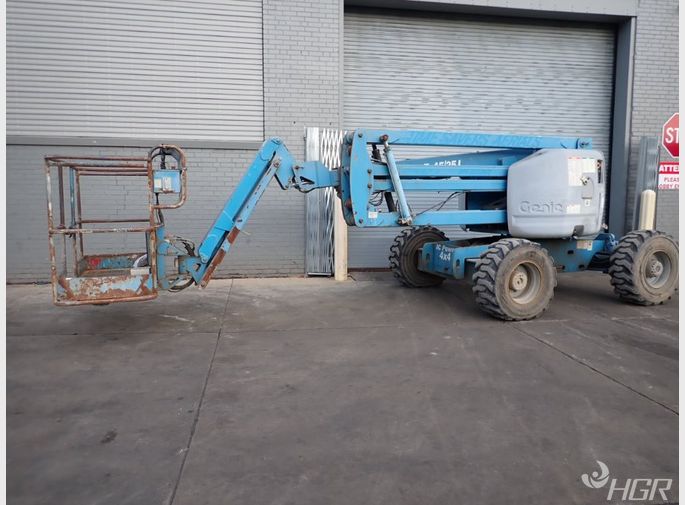

Genie Z-45/25 Boom Lift
Arrival Date
07-25-2025
Dimensions L x W x H (inches)
Unavailable
Capacity
MAX HEIGHT 45' 6"
Electrical
-
Weight (lb.)
13990
Category
Condition
See Details
Available Quantity
1
Serial No.
Z4525-20152
Make Year
2002
Item Details

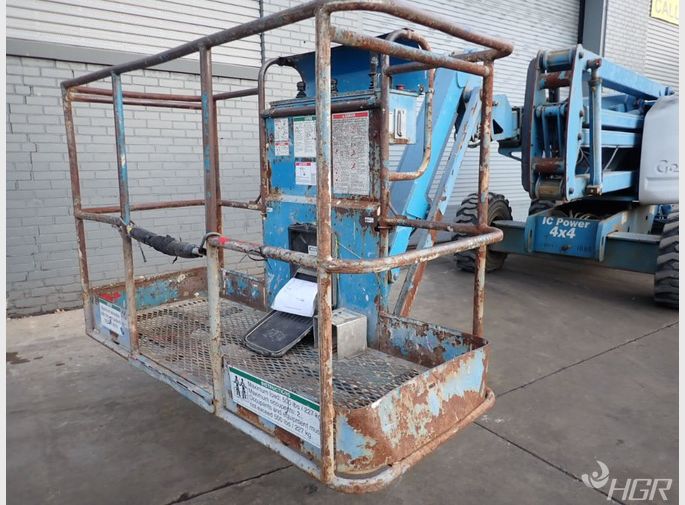

4142 Hours, 27" X 67" Basket, Manual & Key (bofa003), Rated Workload 500#, Reach 25'3", Max Height 45' 6", *contains 2 Pieces 0820-024-0001
About This Item
Product Overview:

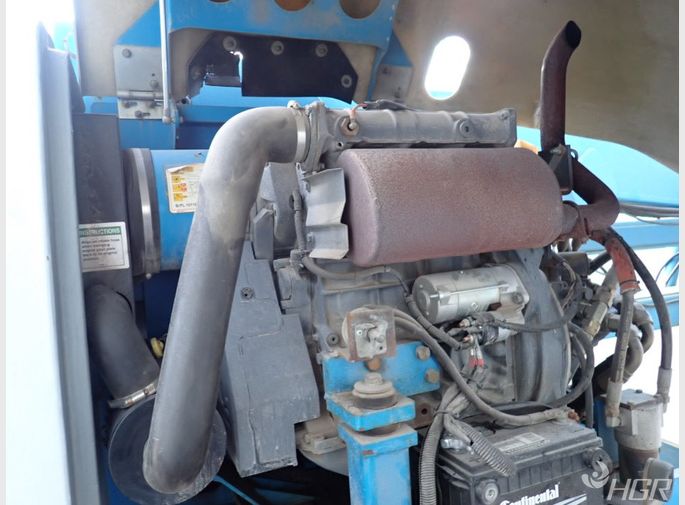

The Genie Z-45/25J DC electric and bi-energy articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments. They’re 48V DC machines with a diesel-powered generator acting as a 100-amp battery charger, making these articulating boom lifts ideal for indoor and outdoor applications.Ideal for outdoor construction and industrial applications, Genie Z-45/25 RT and Genie Z-45/25J RT articulating boom lifts provide lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none. These models’ tight turning radius and zero tailswing make for easy maneuvering in confined work areas.Hydraulic rotation lets operators move the platform where it’s needed, and the self-leveling feature keeps the platform level throughout the entire range of motion Fully proportional controls for precise boom positioning and smooth performance Active oscillating axle (4WD models) helps maintain traction on rough terrainDual fuel (Gas/LPG) or diesel engine options.
Product Features:
Self-levelling platform
Hydraulic platform rotation
Proportional joystick controls
Thumb rocker steer
Drive enable
AC power to platform
Horn
Hour meter
Tilt alarm
Zero tail swing
355° non-continuous turntable rotation
Entry toe board
Lift Guard™ Contact Alarm
Dual parallelogram for vertical wall tracking
Lift Connect™ Telematics
Lift Tools™ Work Tray
Platform load sense
General:
Manufacturer: Genie
Model Name: Boom Lift
Model Number: Z-45/25
Inventory Number: 0820-024-0001
Serial Number: Z4525-20152
Category: Material Handling
Make Year: 2002
Power Requirements:
Voltage: 48V
Drive: 2WD
Specifications:
Working Height Maximum: 51 ft. 9 in.
Platform Height Maximum: 45 ft. 9 in.
Horizontal Reach Maximum: 25 ft. 1 in.
Up and Over Clearance Maximum: 23 ft. 9 in.
Platform Length: 2 ft. 6 in.
Platform Width: 6 ft.
Height – stowed: 6 ft. 7 in.
Length – stowed: 22 ft. 5 in.
Width: 5 ft. 10.3 in.
Wheelbase: 6 ft. 8 in.
Ground Clearance – Center: 9.5 in.
Tires: 9 x 14.5 in.
Hydraulic Tank Capacity: 8 gal
Fuel Tank Capacity- Bi-Energy: 9 gal
Weight: 16315 lbs.
