This item has been SOLD.
Inventory No.
0120-032-0001
Manufacturer
Haas
Model No.
-
Dimensions L x W x H (inches)
Unavailable
Capacity
-
Electrical
-
Weight (lb.)
16025
Category
Condition
See Details
Quantity
1
Serial No.
-
Make Year
-
Item Details
0120-032-0001
About This Item
Product Overview:

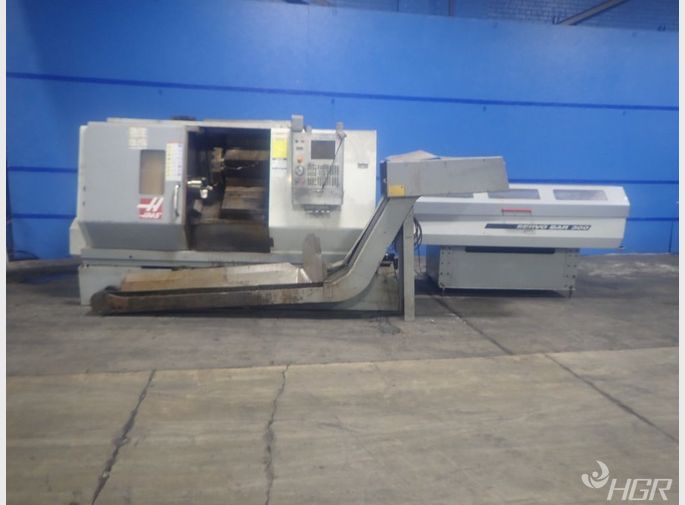

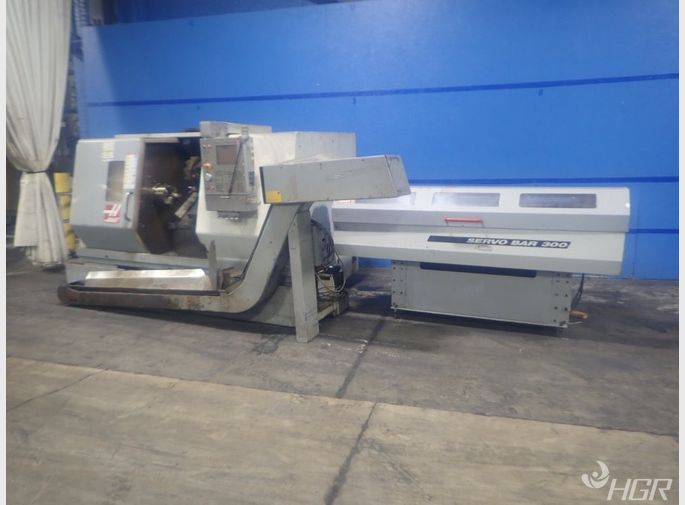

The Haas SL30 design was based on improvements to the HL-Series lathes and included large headstock castings with symmetric ribs for rigidity and stability, tailstock castings with a two-piece design for easy re-alignment, embedded chip trays, and higher-volume coolant tanks. The Viewing window is Polycarbonate. Haas SL-30 CNCs for sale features a 14.5 x 34 (max) and 30 swing. Common options include an automatic bar feeder, live tooling or the Big-Bore option.
Product Features:
- Haas CNC Control with Coldfire Processor
- 12 Station Turret with (6) Live Milling VDI Stations
- High-Torque Live Milling Drive
- C-axis Programmable Spindle
- Programmable Tailstock
- Parts Catcher
- Tool Presetter
- 2-Speed Gearbox
- High-Pressure Coolant System, Belt-Style Chip Conveyor
- 16 mb Expanded Memory
- Intuitive Programming

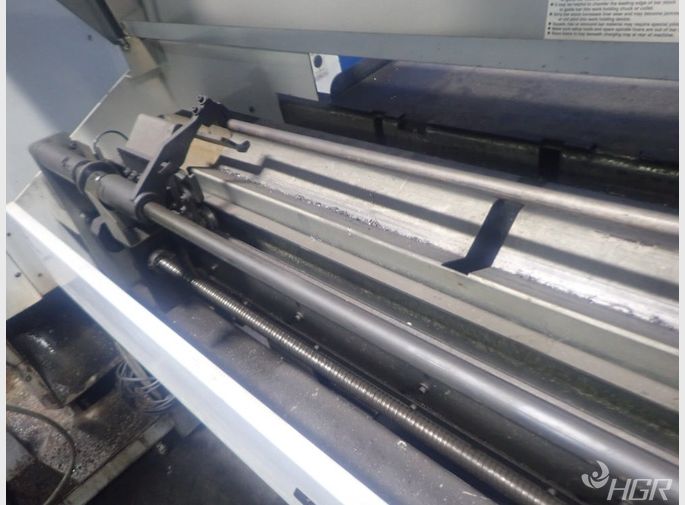

- Bar Feed Interface
General:
Manufacturer: Haas
Model Name: CNC Lathe
Model Number/MPN: SL-30
Inventory Number: 120-032-0001
Series: 72629
Make Year: 2006
Condition: Used
Power Requirements:
Power: 30 hp
Max.RPM: 20 rpm
Rapid Traverse Rates: 710 ipm
Spindle Speeds: 2400 rpm with 2-Speed Gearbox
Specifications:
Aisle: 09A
Bay: 3800
Weight (lb): 16025 lbs.
Control: CNC
Chuck Size: 10 in.
Bar Capacity: 3 in.
Axis: 2
Turning Diameter: 17 in.
Swing: 30 in.
Machining Length: 39 in.
Length: 150 in.
Width: 77 in.
Height: 74 in.
Swing Over Saddle: 14.5 in.
Max Bar Diameter: 3 in.
Spindle Nose: A2-6
Spindle Orientation: Full C-Axis
Turret Travles, (X/Z): 11.3 x 34 in.
Live Tool Speed: 3,00 Max rpm
Tailstock Quill Taper: MT4
Tailstock Quill Travel: 33.5 in.
Rotary Tool Drive: 7.5 hp
