Product Overview:
This High speed labeling system was specifically designed for packagers of bottled water containers requiring speeds from 200 to 250 ppm. Unlike conventional wrap systems, this vertical roller system uses 4 points of bottle contract to square and align the surface of the container to minimize label spirals. Production rates up to 250 ppm with a +/- 1/32” accuracy are possible with this system.

The VersaLine Vertical Roller labeling system is available with a full complement of options, including feed screw or pneumatic product bank control, label coders, bar code scanners, product eject station, etc.

• Suitable for harsh/ multi- shift environments
• Designed for unstable, thin walled, cylindrical containers
• Password protected menus
• 50 programmable product presets
• Encoder-based speed compensation
• AC inverter control product handling

Quality/Flexibility:
The Quality of the VersaLine system surpasses all equipment in its price range and is suitable for single or multi-shift operations where long-term reliability is important. . The modularity and flexibility of the system make it ideal for packagers requiring frequent changeovers on a wide variety of products. ‘No tool/ no change parts’operation design makes the system ideal for contract packagers.

Advanced Controls:
VersaLine features Allen-Bradley® PLC control with on board diagnostics and label/ product preset memory. Additional features include color touch screen operator interface and AC inverter controlled product handling

Product Features:
• Touchscreen operator interface
• AC variable speed frequency drives
• 4-1/2”width x 120”length x 34”height conveyor
• Digital speed indicator on touchscreen
• Stainless steel welded frame
• Production Rate: Up to 250 products per minute (dependent upon label/product dimensions)
• Applied Accuracy: Up to +/-1/32”@ Sigma 2 (exclusive of product variation)
• Maximum Product Height: 12”

Label Applicator:
• Encoder-based speed compensation
• Rugged stainless steel/aluminum construction
• Precision sealed bearings
• Outboard supported drive for long-term reliability
• Dependable performance in harsh environments
• 16” label unwind for less frequent roll changes
• Integrated fan-cooled electronics
• 1,200”per minute dispensing speed
• 7”wide web (6 7/8”max. label width)
• 220 / 50/ 60 H /1 Phase

Options:
• Missing label on product detection
• Vision system integration
• Product pacing and alignment feedscrews
• Variable speed wrap station for round containers
• Low label detection
• End-of web detection
• Broken web detection
• Loose- Loop Thermal Transfer, Laser or Inkjet printer
• Hot stamp imprinter
• Clear label detection
• Upgrade to 2,200”per minute dispensing speed
• 20”label unwind
• 10”wide label web (9 7/8”max. label width)
• Consult factory for additional options

General:

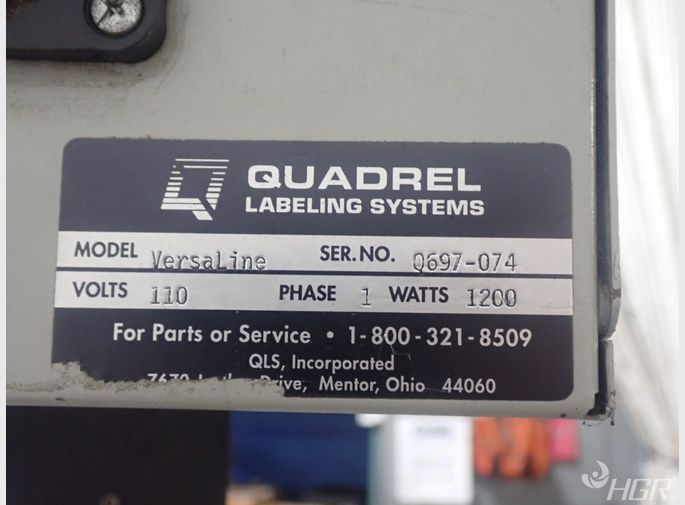

Manufacturer: Quadrel

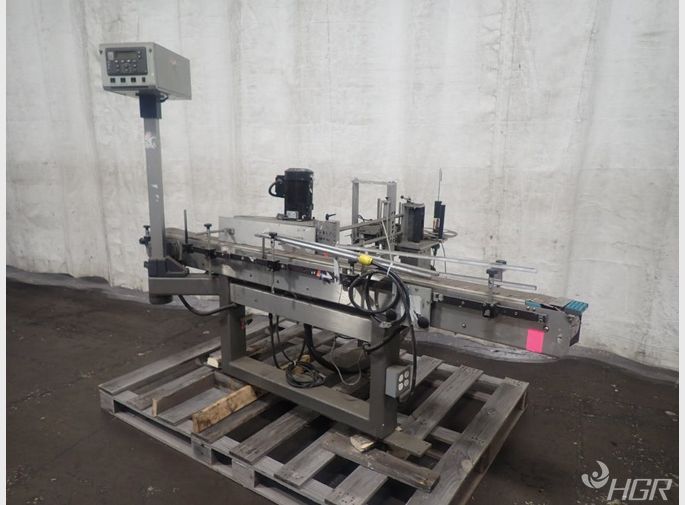

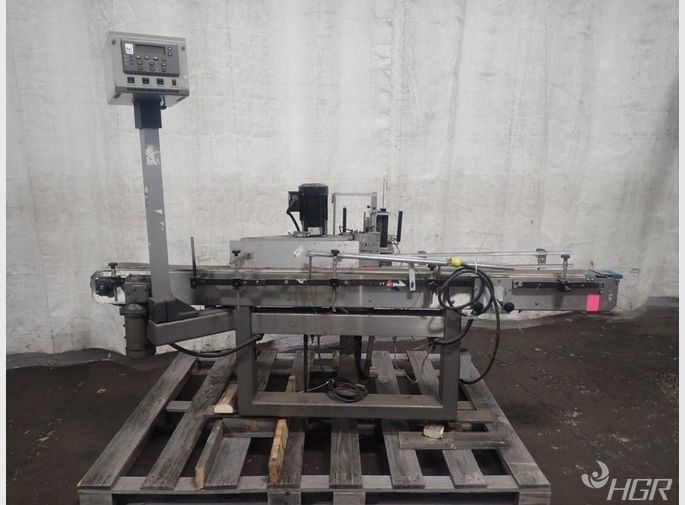

Model Name: Vertical Roller Labeling System
Model Number/MPN: VERSALINE
Inventory Number: 0321-046-0064
Series: Q697-074
Make Year: 1997

Specifications:
Aisle: 07A
Bay: 1300
Weight (lb): 585 lbs.
