0820-099-0006

Product Overview:

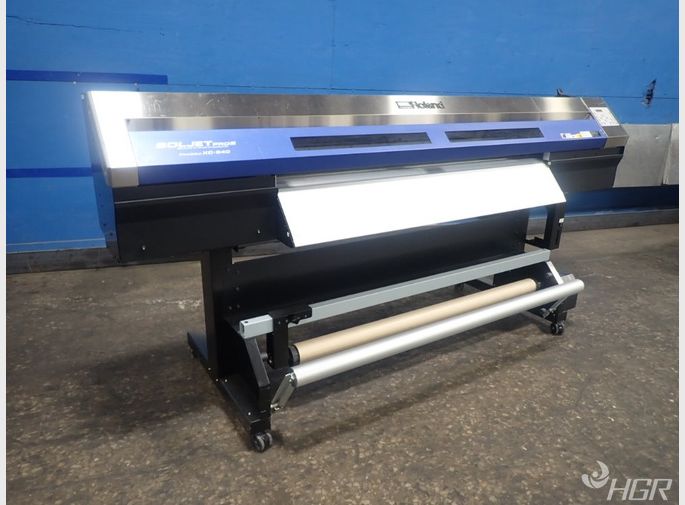

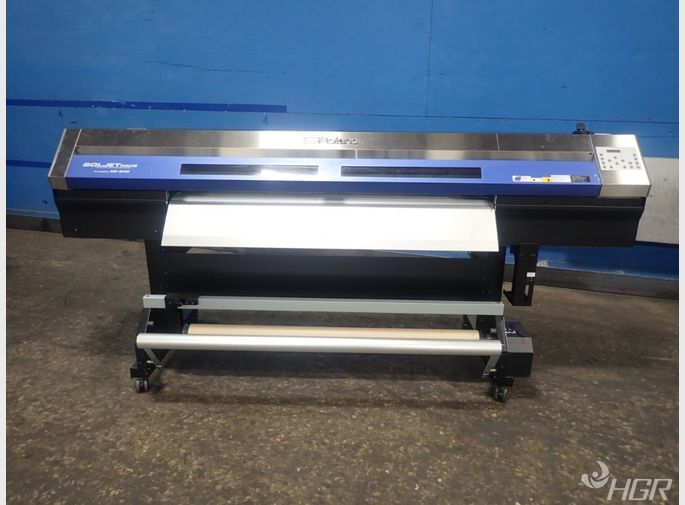

The new XC-540 takes quality and productivity to the next level with a host of advanced features, including revolutionary new Roland Intelligent Pass Control technology for faster production and better overall imaging. With the XC-540, Roland has integrated its industry acclaimed Print&Cut technology into one streamlined device, supporting hundreds of media options for outstanding print quality.

Product Featues:
Roland’s 3-Dimensional technology enhances print quality and productivity
Print rich, vivid, on-target colours effortlessly
Print & contour cut for truly custom results
Powerful tri-heater system accelerates production
Heavy-duty media feed and tracking system for flawless results
Dense, rich colour, fast drying and scratch resistant
Low maintenance system saves time, ink and running costs

General:
Manufacturer: Roland
Model Name: Printer
Model Number: XC-540
Inventory Number: 0820-099-0006
Serial Number: ZAH7137
Category: Printing
Make Year: 2011

Power requirements: 220 to 240V, 50/60Hz
Cutting speed: 10 to 600 mm/s
Blade force: 30 to 300 gf

Specifications:
Width: 260 to 1371 mm (10.3 to 54 in.)
Thickness: Maximum 1.0 mm (39 mil) with liner, for printing, maximum 0.4 mm (15 mil) with liner, for cutting
Roll outer diameter: Maximum 180 mm (7 in.)
Core diameter: 50.8 mm or 76.2 mm (2 in. or 3 in.)
Dimensions (with stand): 2,694 (W) x 1,103 (D) x 1,260 (H) mm (106 (W) x 43.4 (D) x 49.6 (H) in.)
Weight: 434 lbs.
