Year 2014, Under 3000 Hours, Located In Concord, Na. If Interested Please Call John Miller @ 636-222-0098 Or Email Jmiller@hgrinc.com 0718-149-0002

Product Overview:

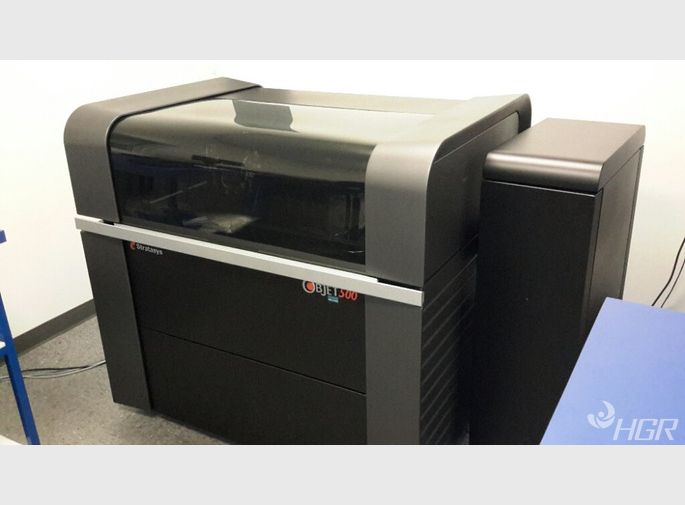

The Objet 500 and Objet 350 Connex3 bring agility and aesthetics to every stage of your product development and production. The Connex3 system was the first 3D printer in the world to simultaneously 3D print multiple colors and materials. It continues to lead the field with an even broader range of printing capabilities so you can create parts with the precision, look and feel of real production parts. Connex3 delivers incredible efficiency with the power to serve your diverse needs with one system.

Multiple materials can be loaded at one time in the Connex3, enabling you to print parts that require a range of mechanical, optical or thermal properties like non-slip grips, transparent windows or flexible hinges. Fast, flexible colors can be printed directly from the color information in original CAD file. Produce smooth three-color gradients, vivid multi-color textures, sleek transparencies or milky opaque colors. No assembly required for parts 3D printed with multiple materials, so it can create custom jigs, assembly fixtures and tools with ultra-fine accuracy and smooth surfaces. The User-friendly Grab CAD Print software.

Product Features:
Multi-material models eliminating the need to design, print and glue separate model elements together
Different parts and materials. Same tray saves time and serves multiple requirements simultaneously
Outstanding 16-micron, high-resolution print layer accuracy
600 DPI X & Y resolution
Thin walls down to 0.6 mm
Large-size build tray of 500 x 400 x 200 mm enabling printing of large parts in a single build or many small parts on a single tray
High throughput Up to 20 mm per hour per strip
Reliability and robustness at least 72 hours of non-stop build capacity
High speed simultaneously print multiple items of different materials; models cure while printing; models can be handled immediately after print
Easy-to-remove support material enabling complex geometries

General:
Manufacturer: Stratasys
Model Name: 3d Printer
Model Number/MPN: OBJET 500 CONNEX
Inventory Number: 0718-149-0002
Make Year: 2014

Specifications:
Aisle: OFF
Bay: SITE
Weight (lb): 1000 lbs.
Capacity: 1000 lbs.
Material Cabinet: 13 x 46.1 x 26.2 in.

Build Size:
Objet 500: 19.3 x 15.4 x 7.9 in.
X-axis: 600 dpi
Y-axis: 600 dpi
Z-axis: 1600 dpi

Layer Thickness:
Horizontal Build Layers: 16 microns
