Additional Information:
Product Overview:

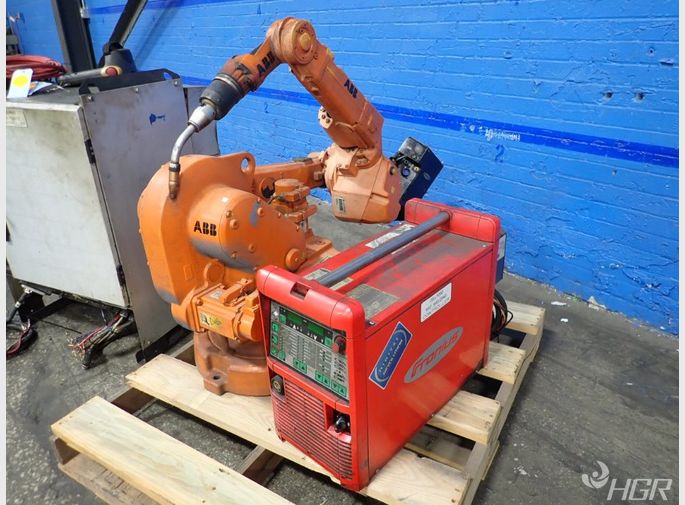

6 Axis, Industrial Robot suitable for Machine Tending, Material Handling, Arc Welding, Cutting, Dispensing, Assembly, Palletizing and Packaging, Measuring, Die Casting, Injection Moulding and Handling of Small Parts of Loads Up to 6 Kg and 1450 Mm Arm Reach.
The Irb 1600 Has Up to 50 Percent Shorter Cycle Times Than Competing Robots in Material Handling, Machine Tending and Process Applications. It Speeds Up and Slows Down Faster Than Other Robots, Saving Time While Moving Between Tasks. This Is Possible Due to Abb’s Patented Second Generation Quickmove Motion Control, Combined with the Robot’s Strong Motors and Low Friction Losses in the Spur Gears.
Low Friction Spur Gears, and No unnecessary Moves Due to Quickmove and Truemove, Reduces Power Consumption Down to 0.58 Kw at Max Speed, and Even Less at Low Speeds. the Airborne Noise Level of Just <70 Db (A) Secures a Healthy Sound Environment.
Flexpendant:
The Flexpendant Is Characterized by Its Clean, Color Touch Screen-Based Design and 3d Joystick for Intuitive Interaction. Powerful Customized Application Support.
Rapid Programming Language:
Rapid programming provides the perfect combination of simplicity, flexibility and power. It is a truly unlimited language with support for structured programs, shop floor language and advanced features. It also incorporates powerful support for many process applications.
Product Features:

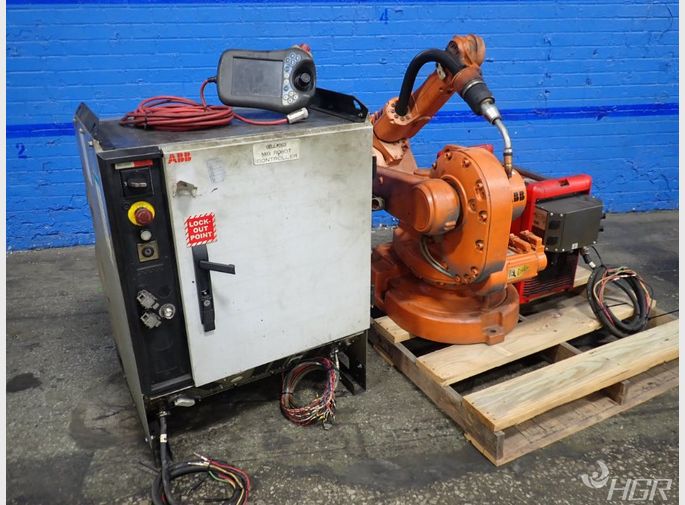

- Control unit ABB IRC-5
- Lifting Capacity 7 kg
- Working Radius approximate 1200 mm
- Cable set and manual control unit
General:
Manufacturer: Abb
Model Name: Robot
Model Number/MPN: IRB1600M2004
Inventory Number: 0121-148-0003
Series: 1600-101949
Make Year: 2014
Specifications:
Aisle: NPS
Bay: R008
Weight (lb): 1080 lbs.
Maximum Load of Robot: 6 kg
Maximum Reach: 1450 mm
Repeatability: 0.02 mm
