Product Overview:

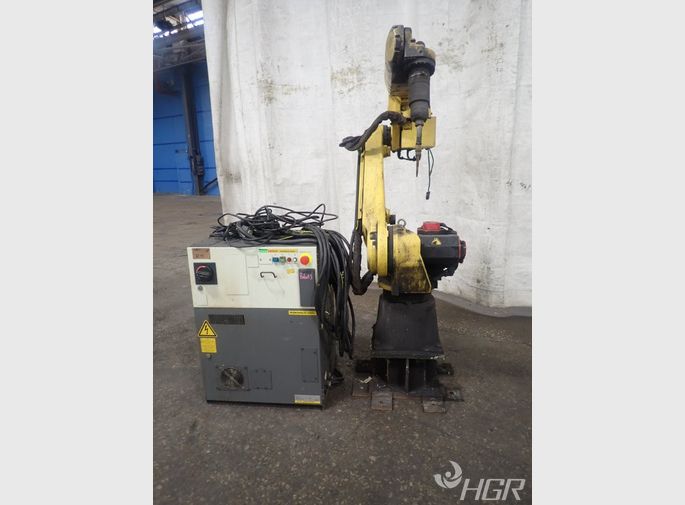

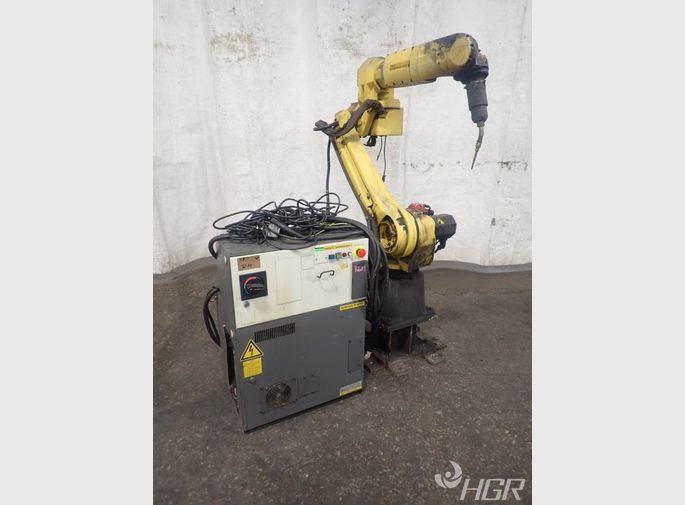

ROBOWLED has many intelligent robot functions such as part location detection and welding bead inspection by iRVision, reducing cycle time and producing higher quality welding.
Enhanced waveform control technology with 120 kHz inverter provides extremely fast arc response for optimized welding on almost any application. The Robot monitors actual welding current and voltage and can post the alarm automatically when welding defect is found and can provide reliable and accurate monitoring.
Product Features:
- High speed digital protocol Arc Link of ROBOWLED IC connects robot controller and welding power supply.
- Spatter-less attractive bead
- Stable high speed welding
- Excellent welding quality through a wide current range
- High quality welding by steady wire feed speed
- Consistent arc start performance
General:
Manufacturer: Fanuc
Model Name: ROBOWELD
Inventory Number: 0121-127-0049
Serial Number: R12601084
Category: Robots
Make Year: 2012
Power Requirements:
Robot Motion Speed:
J1:195 o/s (3.4 rad/s)
J2:175o/s (3.05 rad/s)
J3:180 o/s (3.14 rad/s)
J4:360 o/s (6.28 rad/s)
J5:360 o/s (6.28 rad/s)
J6:550 o/s (9.6 rad/s)
Power Frequency: 250 kg
Phase: 3
Power: 50/60Hz
Robot Specifications:
Axes: 6
Payload: 20 kg
H-Reach: 1811 mm
Repeatability: 0.0800 mm
Robot Mass: 250 kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Weight: 650 lbs.
