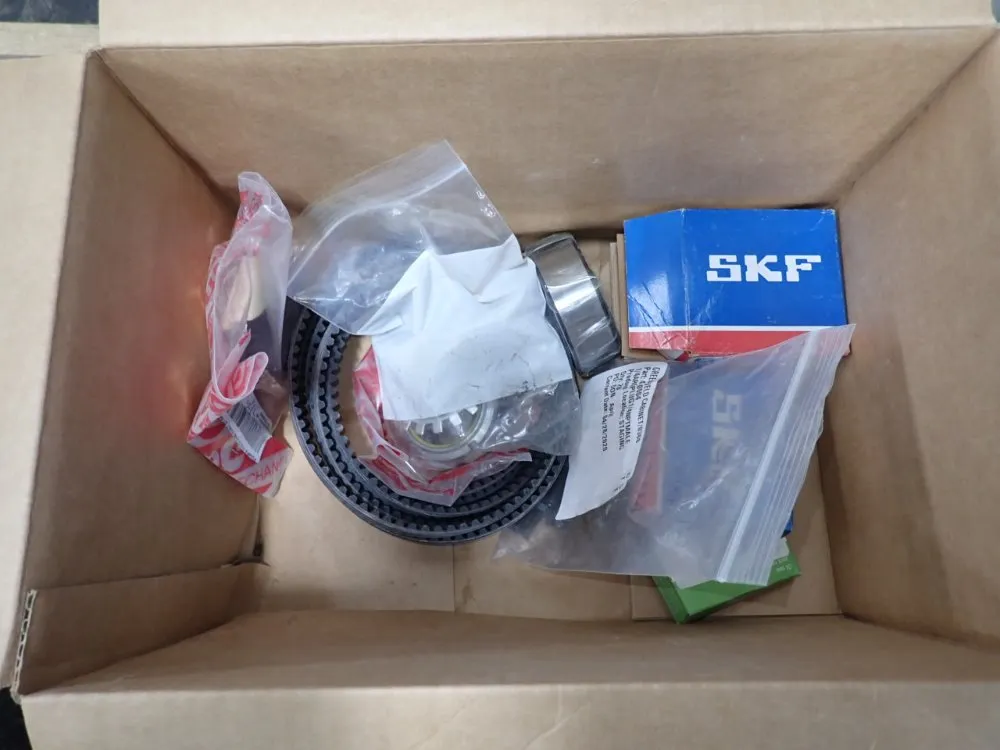

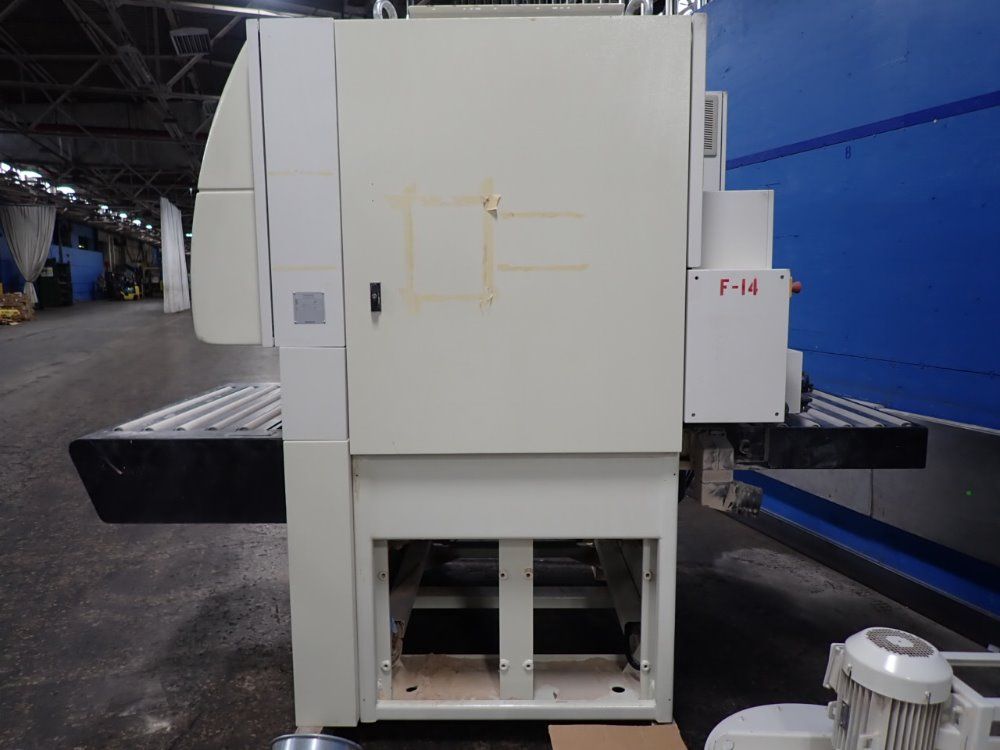

W/blender, Year 2003, Contains 2 Pieces 0420-095-0001

Product Overview:
Capable of calibrating core board, sanding veneer, and sealer/lacquer sanding; 53"" wide capacity. 1st Head: 12-1/2"" diameter 85 duro rubber contact roll with 48 HP motor; 2nd head: 45 duro rubber contact roll with 30 HP motor - 2 speed 9 or 18 m/sec and reverse rotation; 3rd head: Electronic sectional platen with super finish (Chevron belt) - 30 HP motor variable speed with inverter and reverse rotation; 4th head: Approx. 10"" diameter satining brush with 3 HP motor for sealer/lacquer; turbo blowers to clean panels; timed oscillating abrasive belt blowers on each wide belt to clean and cool abrasive belts; 5.5 HP feed with inverter for variable speeds from 10 to 60 FPM; 10 HP vacuum bed; 53"" x 103"" abrasive belts; auto-thickness set up device; ""Hydra RTC"" touch screen computer control allows operator to set up feed speed, thickness, head control, direction of second head & speed of 2nd & 3rd head; 10,000 CFM dust collection required.

Product Features:
Industrial Machine with Heavy-Duty Structure
Useful Working Width 1350 mm
Automatic belts oscillation
Worktable with Fixed Height (Movable Head). for This Feature the Machine can also Work in a automatic Production Line
Front and Rear Rubbered Pression Rollers of the Working Units
Unit with Roller to Calibrate, Grooved Steel Roller, Motor Power 25 KW ( 2900 RPM)
Unit with Roller to Calibrate Sand - Grooved Steel Roller, Diameter 200 mm, Motor Power 18,5 ( 2900 RPM)
Panels Cleaning Unit with Rotating Brush

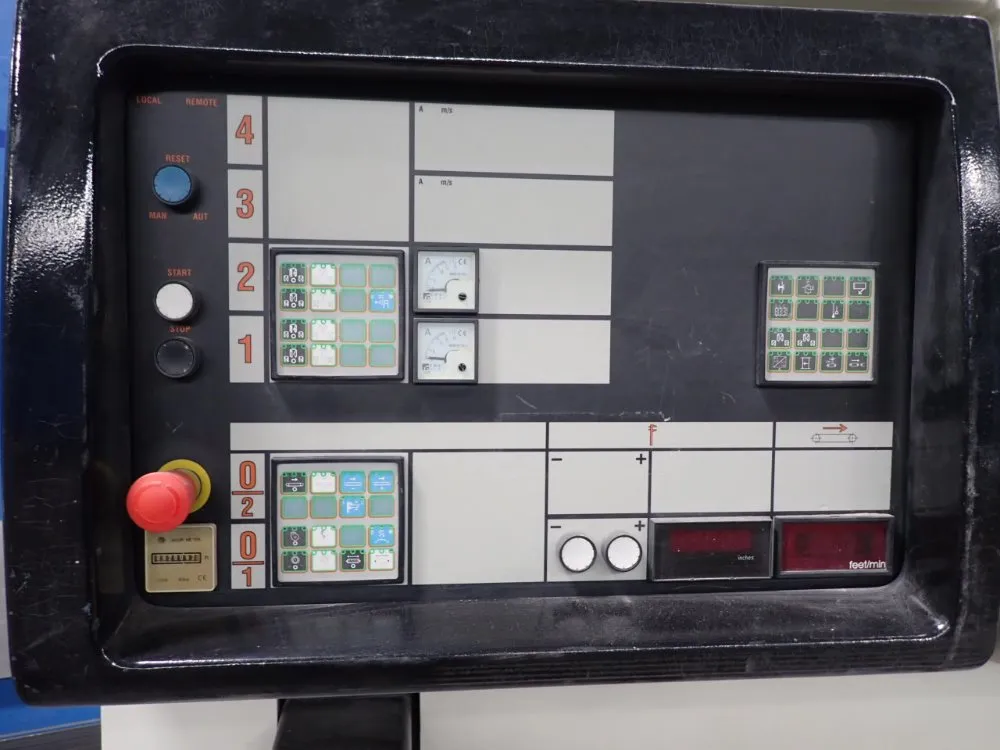

Command Board Installed on a Separated Electrical Cabinet to Control the Machine

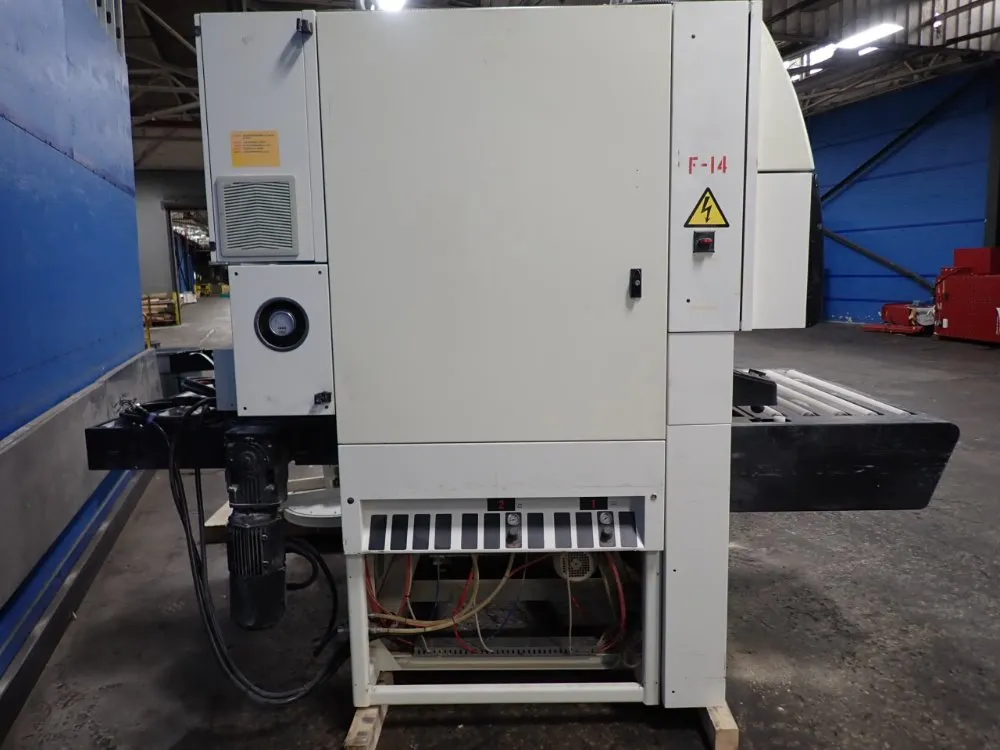

Separated Electrical Cabinet
Security Norme Ce Mark

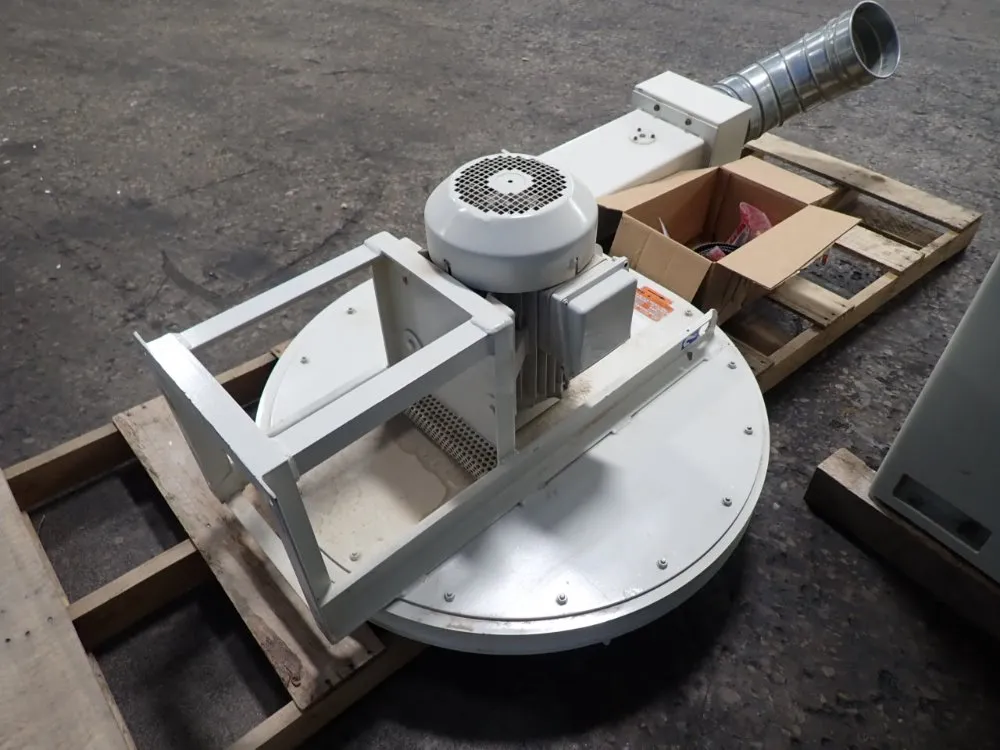

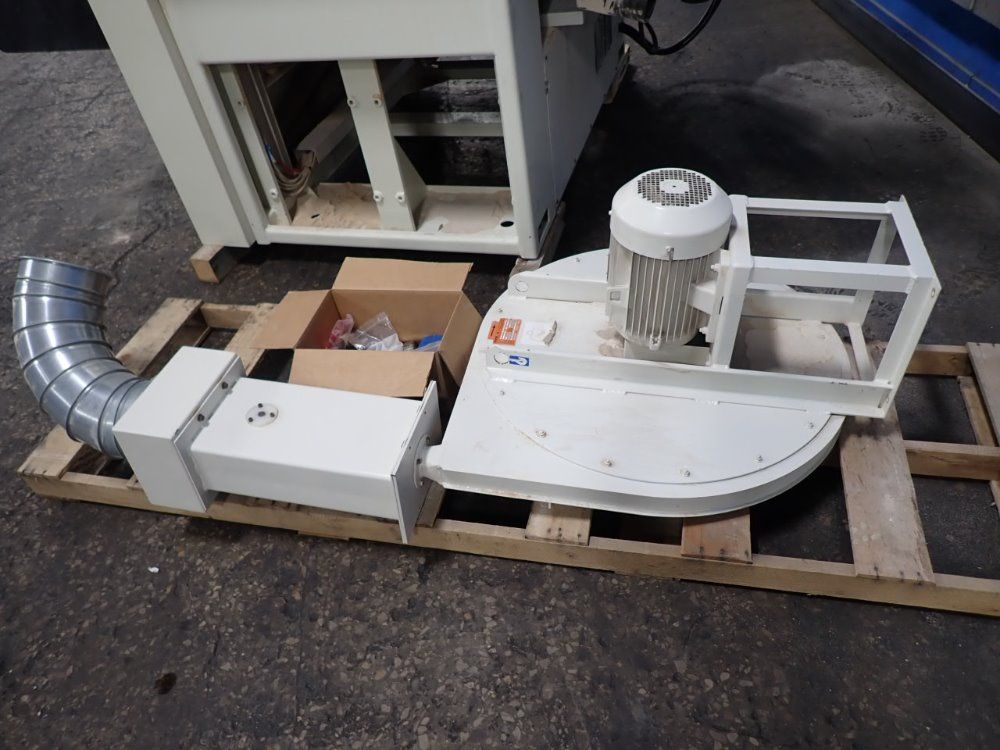

Aspiration Dust Fans

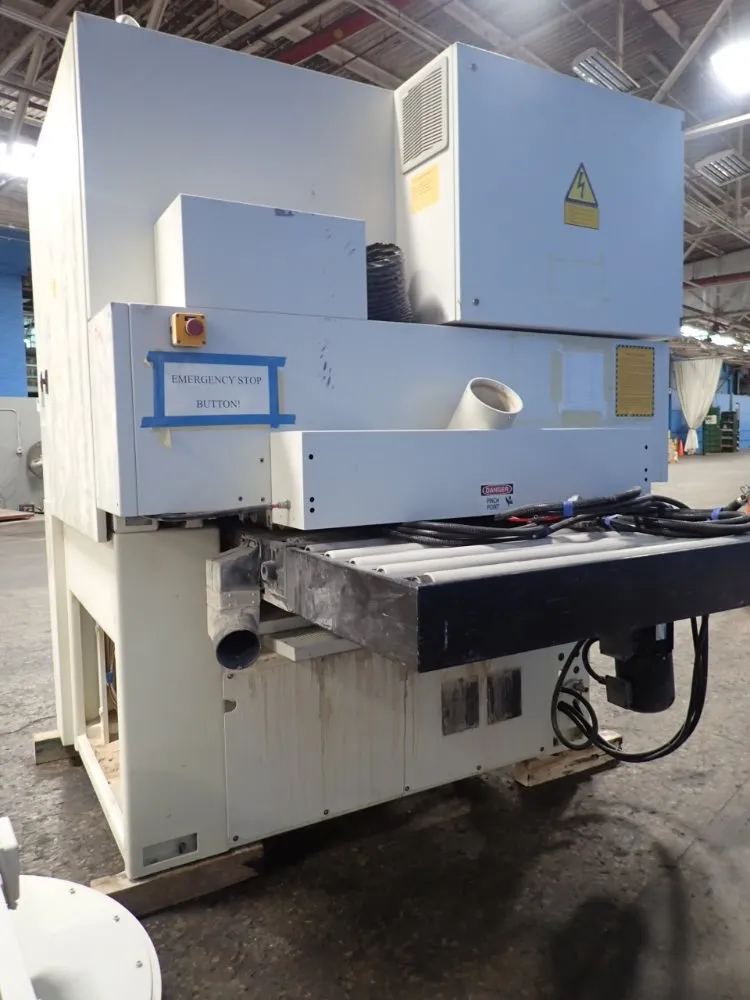

Emergency Device to Save Hands While Pieces Infeeding
Industrial Machine with Heavy-Duty Structure
Automatic Belts Oscillation
Motor Power of the Feeding Carpet 6 KW
Front Pression Shoes of the Working Units
Rear Pression Shoes of the Working Units

General:
Manufacturer: Dmc

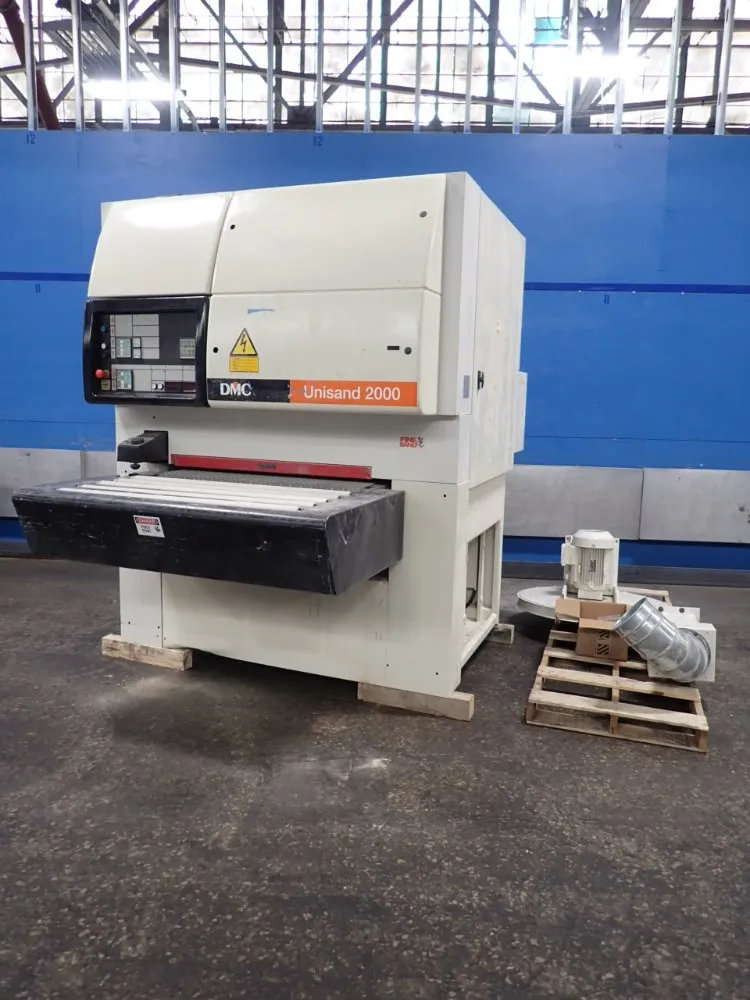

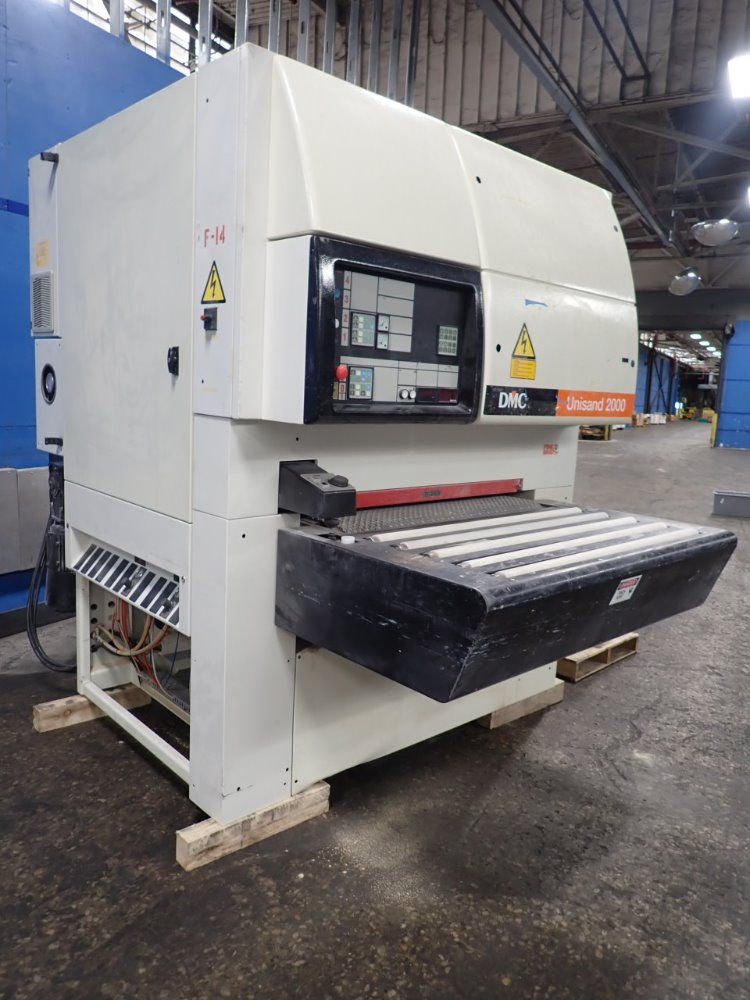

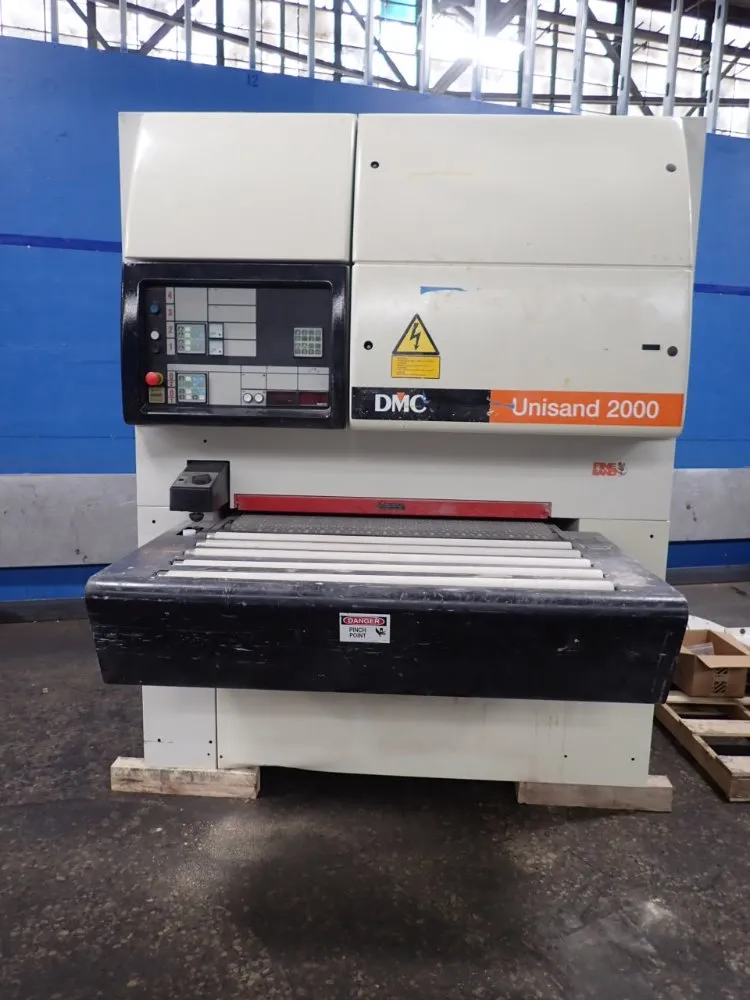

Model Name: Conveyorized Belt Sander
Model Number/MPN: UNISAND 2000
Inventory Number: 0420-095-0001

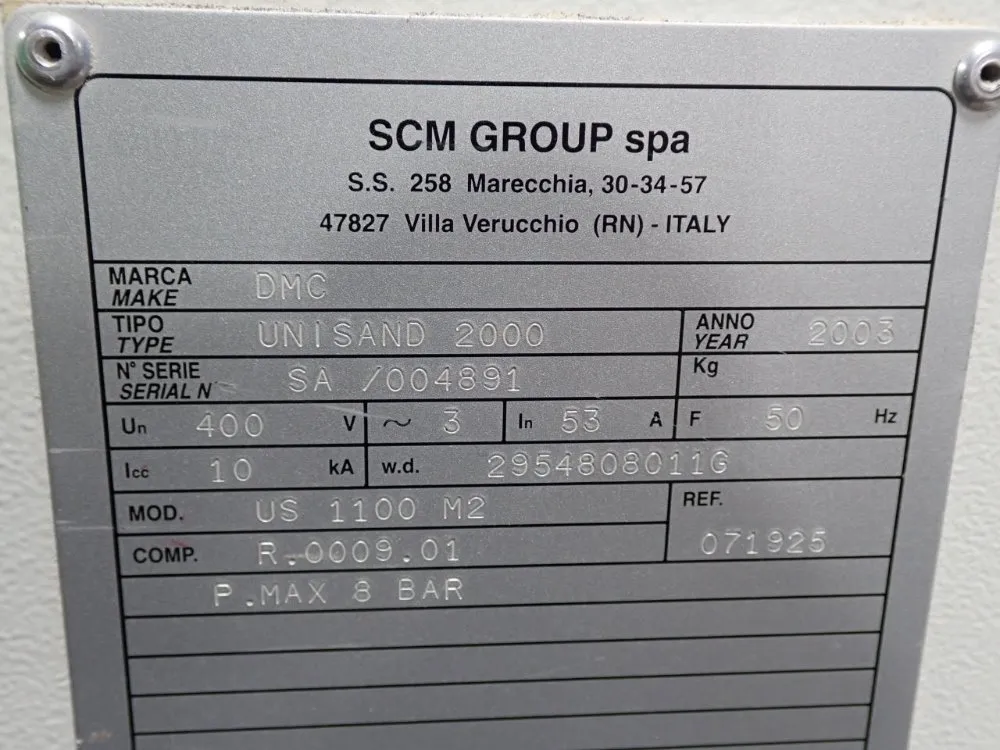

Series: SA/004891
Make Year: 2003

Power Requirements:
Motor power: 22.5 kw
Motor power: 18 kw
Section sanding pad: 12/9 kw
Total Installed Power: 104 kw

Specifications:
Aisle: 09B
Bay: 3400
Weight (lb): 7935 lbs.
Capacity: 43 in.
Working Width: 1350 mm
Maximum Thickness: 140 mm
Nbr of Units: 6
Steel Roller Diameter: 250 mm

• DMC Unisand 2000 53" Orbital Sander with (2) Pads and (1) Brush

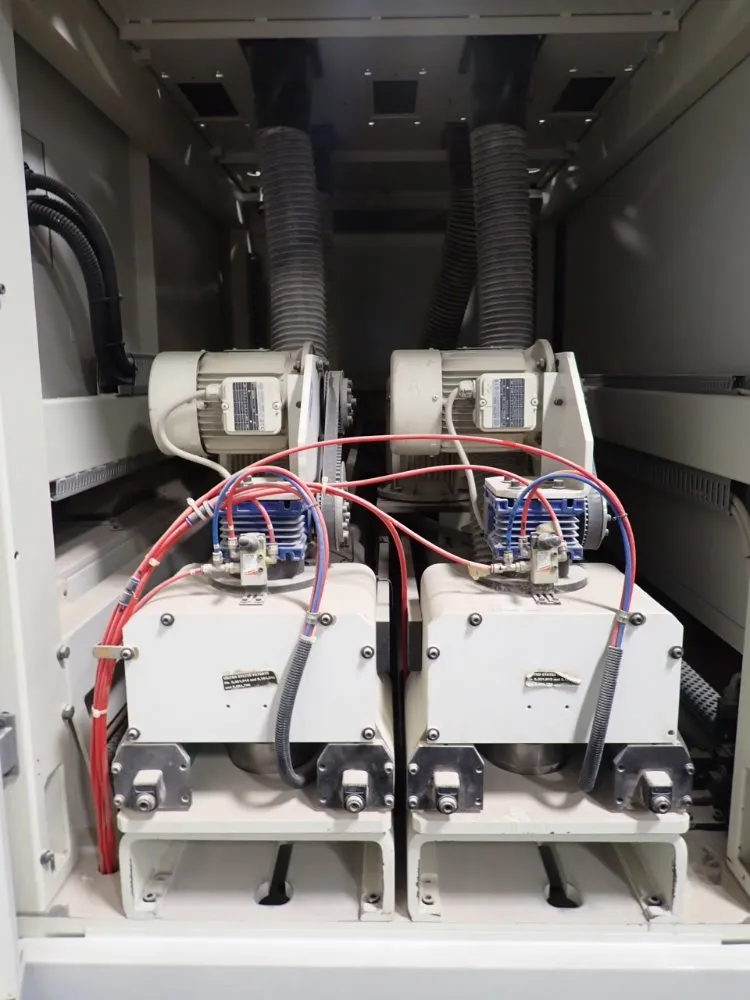

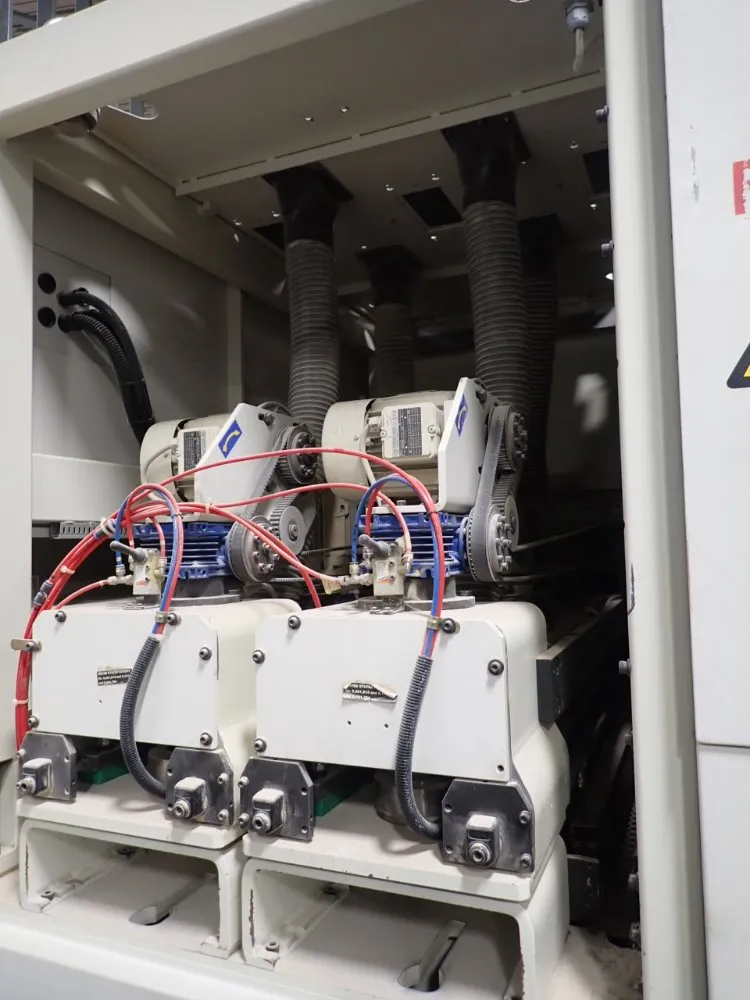

• Equipped with (2) 10" Wide platens for elimination of cross grain scratches; each dual orbital action head equipped with 5.5 HP motor for orbital motion and 1.5 HP motors for side to side movement; each head rotates at 3500 RPM
• 53" (1350mm) Maximum panel width
• 2" (52mm) Minimum panel width
• 16" (400mm) Minimum panel length
• 6-5/8" (170mm) Maximum panel height
• 3/16" (4mm) Minimum panel height
• Abrasive size: 18" x 52"

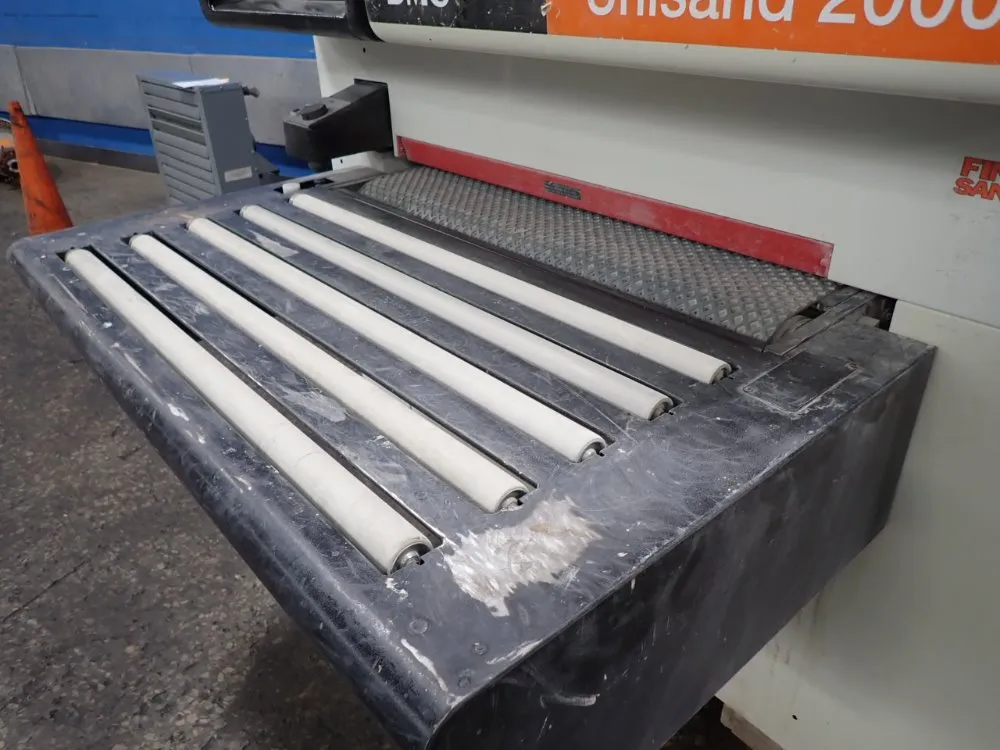

• Infeed and outfeed rubber covered holddown rolls
• Motorized Part Thickness adjustment with digital readout, (4) Screw jacks for table raise and lower
• 6 to 40 Feet per minute Inverter Controlled by 3 HP motor Variable Speed Vacuum Feed Conveyor with Ferrari 12 HP (9 KW) fan motor
