Product Overview:

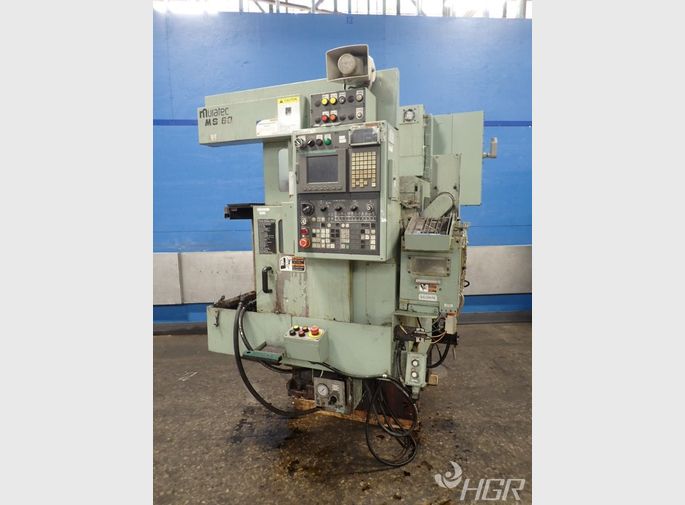

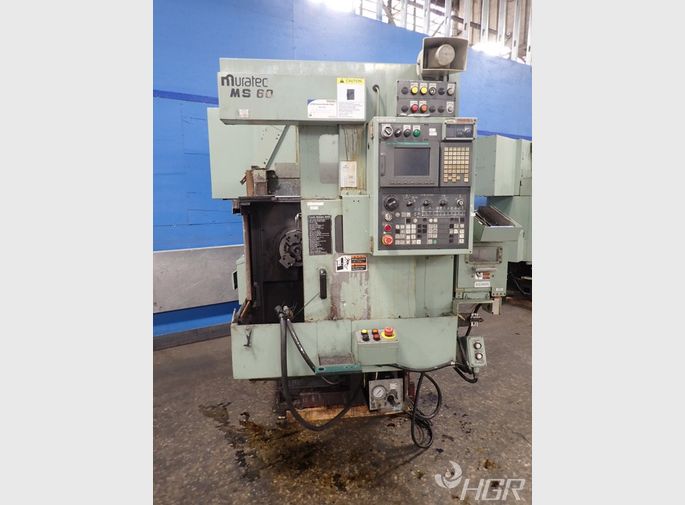

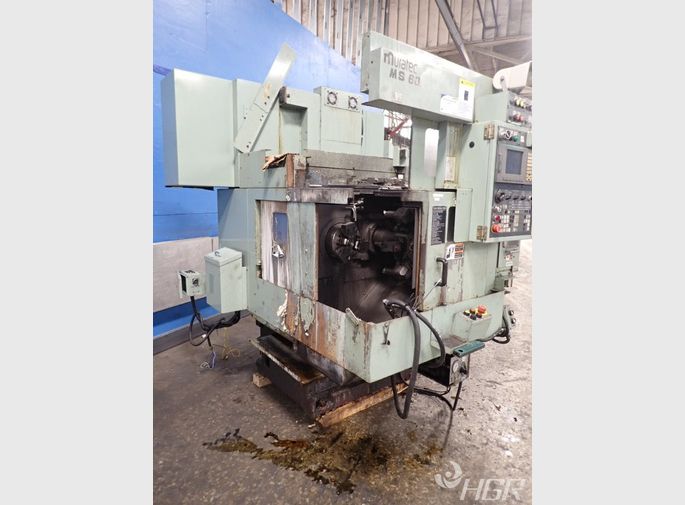

The MS60 is a single spindle CNC turning Center that is revolutionizing automated turning with its compact size. Its small footprint paired with its high-speed capabilities make this an incredibly efficient machine for high-volume production. When combined with the twin spindle CNC turning centers from our MW Series, the MS60 provides an ideal third operation solution, or just to add additional turning capacity.
Product Features:
- Ideal for In-Line Operations: Ideal for automated single spindle needs, or in-line operations. The MS60 is an optimal solution for line planning and can work alongside any of the twin spindle machines from our MW or MD Series.
- Longer Unattended Operation: In addition to multi-machining, the MS60 will deliver longer unattended operations, reducing the cost of labor.
- Automation Solutions: Designed with automation in mind, as well as a fully automated gantry, the MS60 can be configured to meet your unique operating needs.
General:
Manufacturer: Muratec
Model Name: CNC Lathe
Model Number: MS60
Inventory Number: 0320-181-0030
Serial Number: 05KX214830001
Category: Cnc
Make Year: 2005
Power Requirements:
Maximum Spindle Speed: 4500 rpm
Spindle Drive Motor: 11 kW/30 min.
Specifications:
Maximum Chuck Size: 8 in.
Number of Turret Stations: 8STA
Spindle Drive Motor: 11 kW/30 min.
Gantry Loader Work piece Handling Capacity: 120 mm x 80 mm, up to 3.0 kg/piece
Spindle Nose Size: JIS A2-5
Spec. of Axis: X-axis 24 m/min | Z-axis 24 m/min
Total Machine Weight (Approx.): 5512 lbs.
