Filter 1
HYDROTRON/DHYD2-50-10-4-3
2(35" X 45" X 36")
3/60/460
12-100-35-519
10 Hp 1020-070-0001
chat Contact Us circle
Chat with a sales rep to purchase a product, ask questions, or for technical support. You can also fill out a form and submit an inquiry.
About This Item
Product Overview:

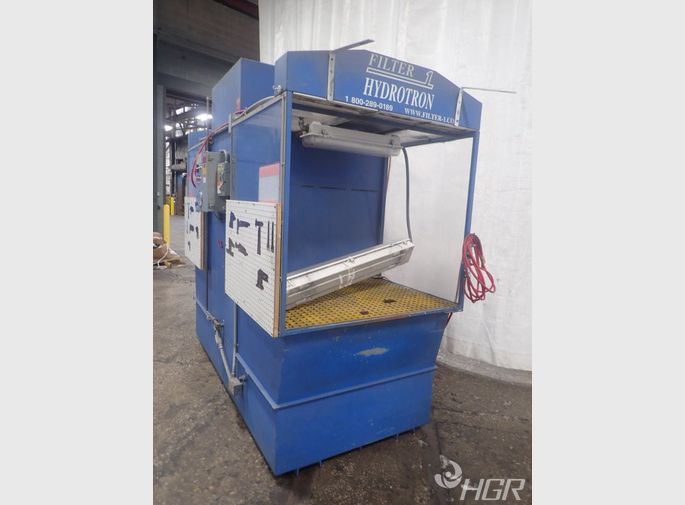

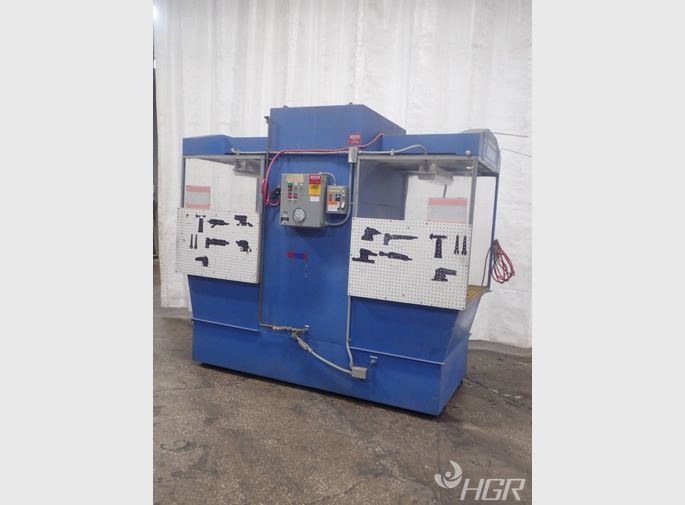

The Hydrotron DHYD Wet Downdraft Table is a self-contained workstation with an integral water dust collector, drawing the dust directly into the water filter system. Immediately wetting the dust and thereby reducing the risk of fire, our wet collector downdraft tables also meet OSHA and NFPA standards for dust collectors located inside the building. The DHYD is available with one or two (back-to-back) work surfaces; each work surface may be equipped with transparent sides for containment and a regain air plenum at the top. The DHYD’s optional regain air system enhances capture velocity by returning a portion of the clean, filtered air through a plenum across the top of the station to “push” the dust away from the worker’s breathing zone while it is simultaneously “pulled” into open table-top inlet.
Product Features:
• Single or Double (Back-to-Back) Work Stations
• Direct Drive/Non-Overloading Fan
• Removable Clear Plastic Inspection Door
• Interior Baffle Section
• Mist Eliminator Filters
• Magnahelic Gauge
• Electronic Water Level Control w/ Pressure Sensor System
• Construction of Galvanized Steel w/ Two-Part Cold Tar Epoxy Coatings to Interior Wet Surfaces
• Industrial Enamel “Gulf Blue” Coating on Exterior
General:
Manufacturer: Filter 1
Model Name: Downdraft Table
Model Number: HYDROTRON/DHYD2-50-10-4-3
Inventory Number: 1020-070-0001
Serial Number: 12-100-35-519
Category: Dust Collection
Make Year: 2012
Power Requirements:
Power: 10 hp
Specifications:
Capacity: 2(35 x 45 x 36 in.)
Dimensions: 36 x 48 in.
Weight: 1990 lbs.
