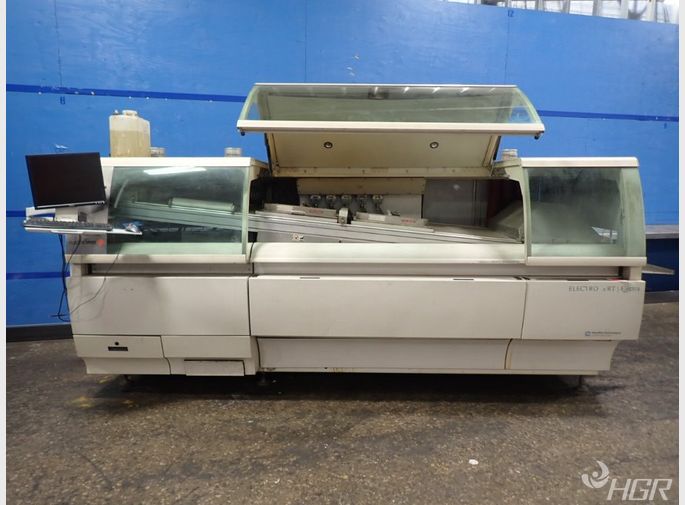

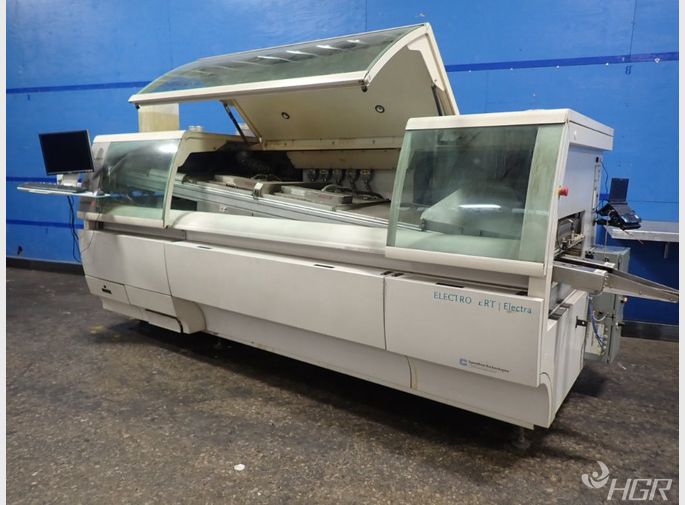

Speedline Technologies Electra 500/f Wave Solder Machine
Shop for Speedline Technologies Equipment
Speedline Technologies
-
-
-
-
0820-030-0001
About This Item
Product Overview:
The Electrovert® Electra™ wave soldering machine is an advanced, meticulously engineered wave soldering system designed for high-mass and high-volume manufacturers. Although intended for maximum throughput requirements, the Electra also offers maximum process flexibility and delivers world-class soldering results.The cast iron solder pot and its components are resistant to the corrosive nature of lead-free solders and are capable of withstanding temperatures of 315ºC (600ºF). All stainless steel components that come into contact with the solder are composed of ElectroCoat™ corrosion-resistant surface conversion as a standard feature, or grade 1 (pure) titanium as an option.
Product Features:
Lead-Free Process Capability: The Electra has been soldering lead-free applications for many years. The cast iron solder pot and its components are resistant to the corrosive nature of lead-free solders, and are capable of withstanding temperatures of 302° C (576° F).
Reliability: Proven performance and reliability are hallmarks of Electra. Elect overt holds the industry reputation as having the most reliable wave soldering systems that last the longest when compared to other makes.
Large Board Capability: High-end and high reliability board assemblers recognize the importance of having the ability to process large, thick assemblies and pallets through their wave solder system. The Electra is one of the only wave solder systems in the industry to have 610 mm (24” inch) process width capability
Solder Nozzle Technologies: Electrovert’s Ultra Fill™, DwellMax™ Plus and DwellMax Ultra solder nozzles are designed to provide maximum top-side hole fill, provide the best hole fill quality,
Preheat Capability: The Electra is capable of up to 2.4 meters (8 feet) of bottom side preheat and up to 1.8 meters (6 feet) of topside preheat. Multiple forms of preheat are offered for complete process flexibility; these include Isothermal™ forced convection, fast response IR, and Infrared radiant.
Fluxing Technologies: As the complexity of board assemblies continues to increase, fluxing quality has become more of a focus to ensure soldering quality.
Operations and Software: The software and controls of the Electra were designed to be user-friendly. The Windows® operating system is multi-functional and easy to use. The 3D GUI provides the user a real-time view of the complete machine modules, operation, and product being soldered.
General:
Manufacturer: Speed line Technologies
Model Name: Wave Solder Machine
Model Number: ELECTRA 500/F
Inventory Number: 0820-030-0001
Serial Number: EC-1111508-01
Category: Inspection
Make Year: 2001
Power Requirements:
Voltage: 480V
Specifications:
Vintage: 2000
Width: 20
Bottom side Heaters: 3
Topside Heater: 1
Weight: 6645 lbs.
