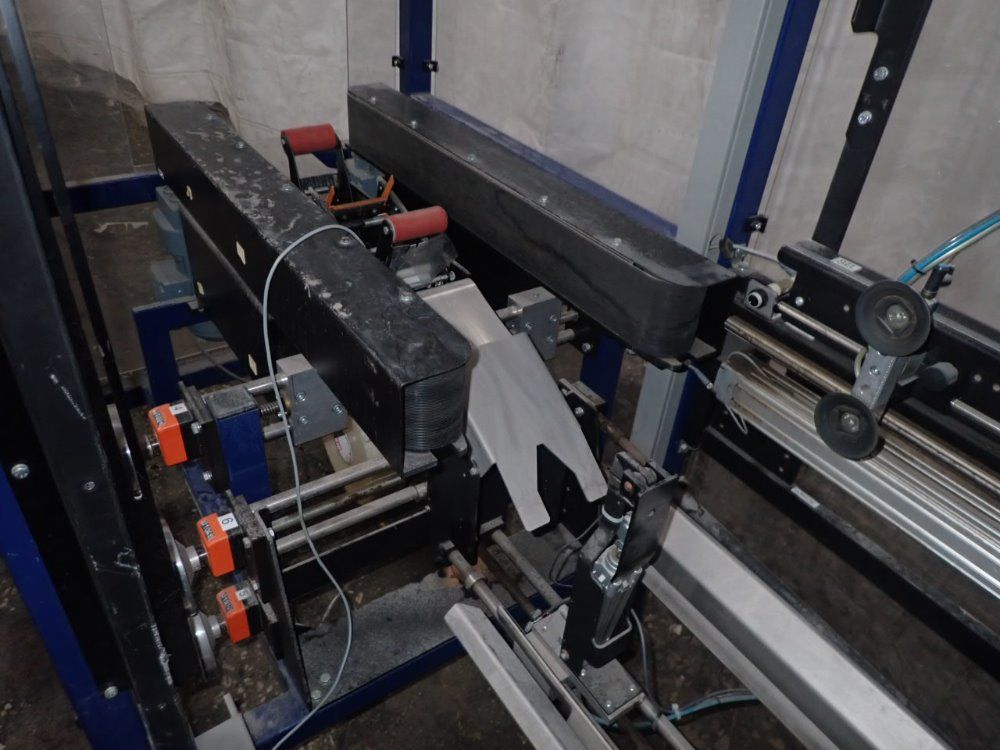

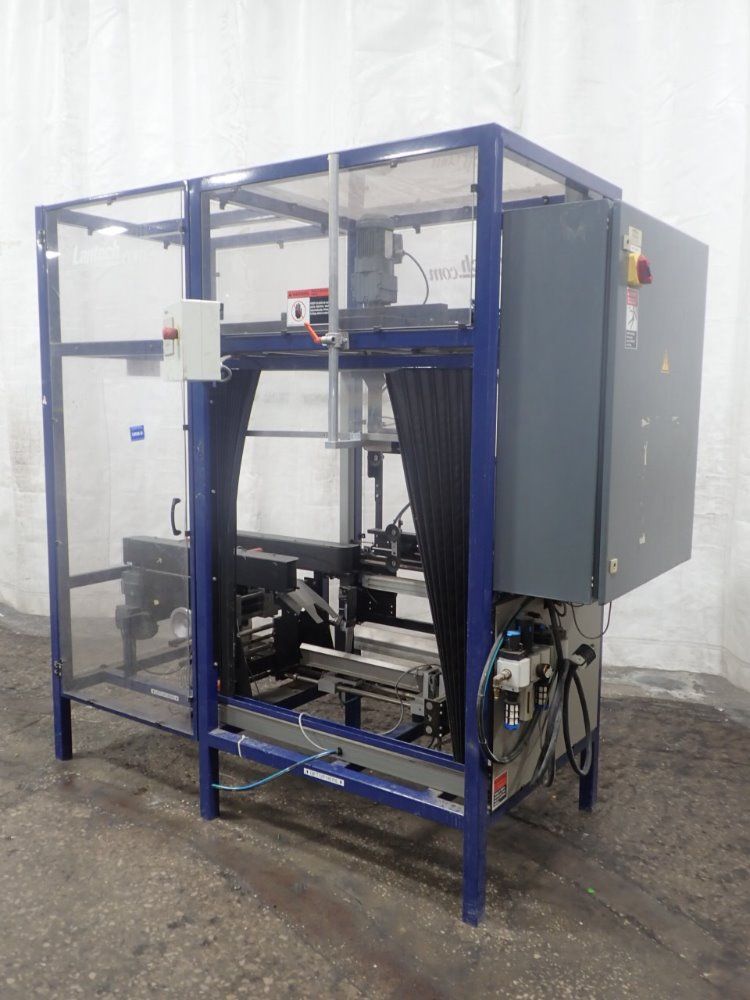

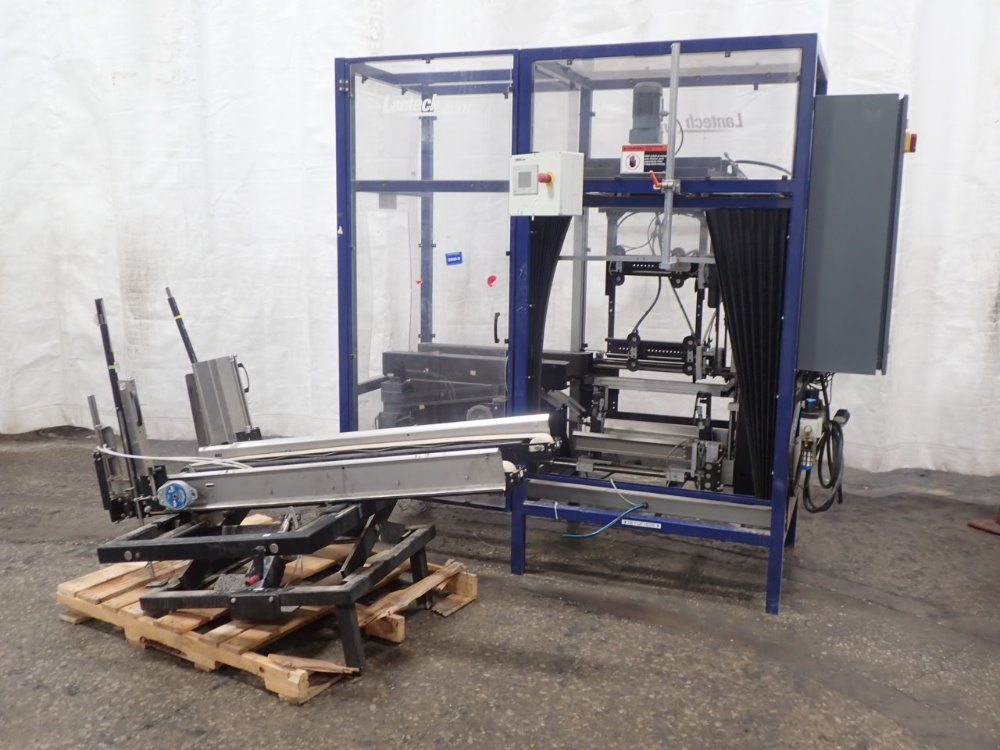

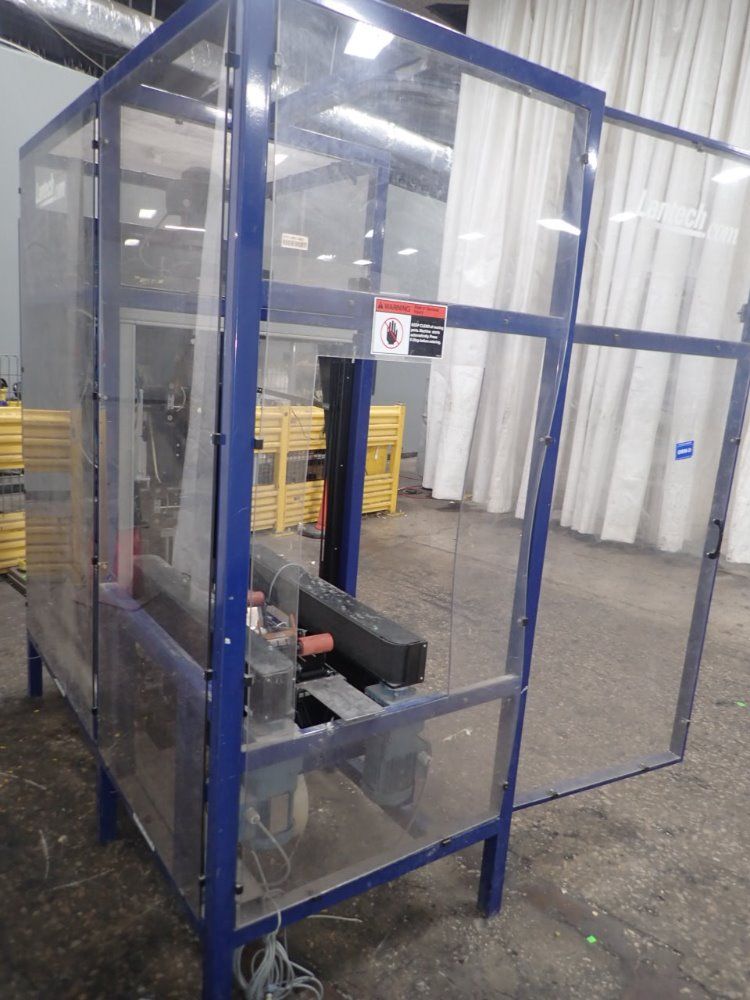

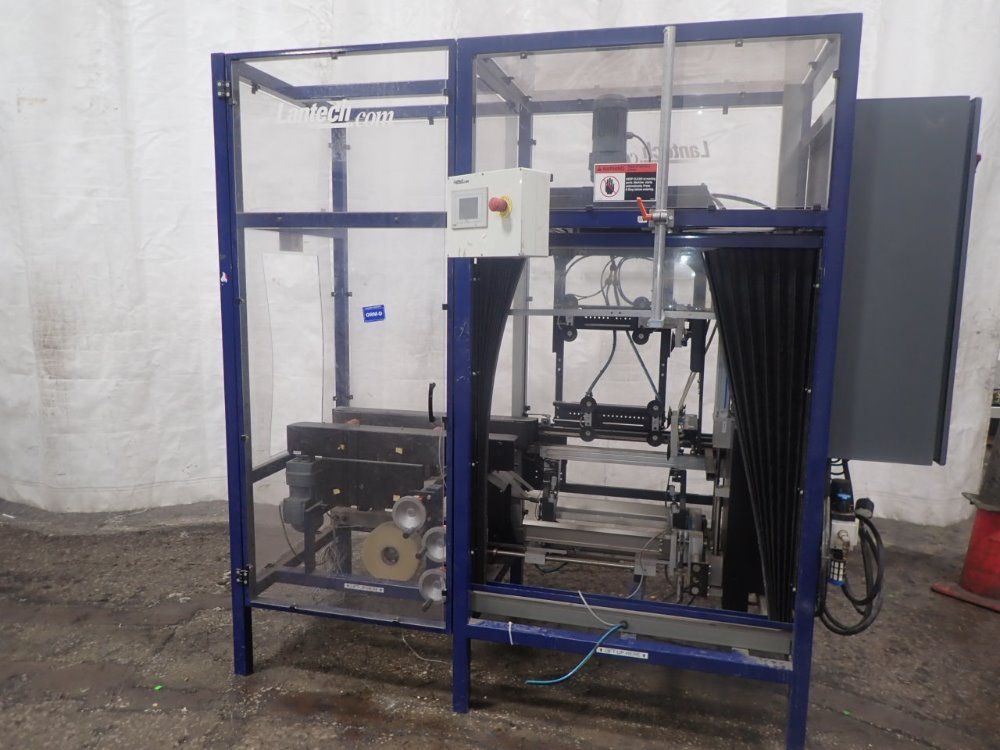

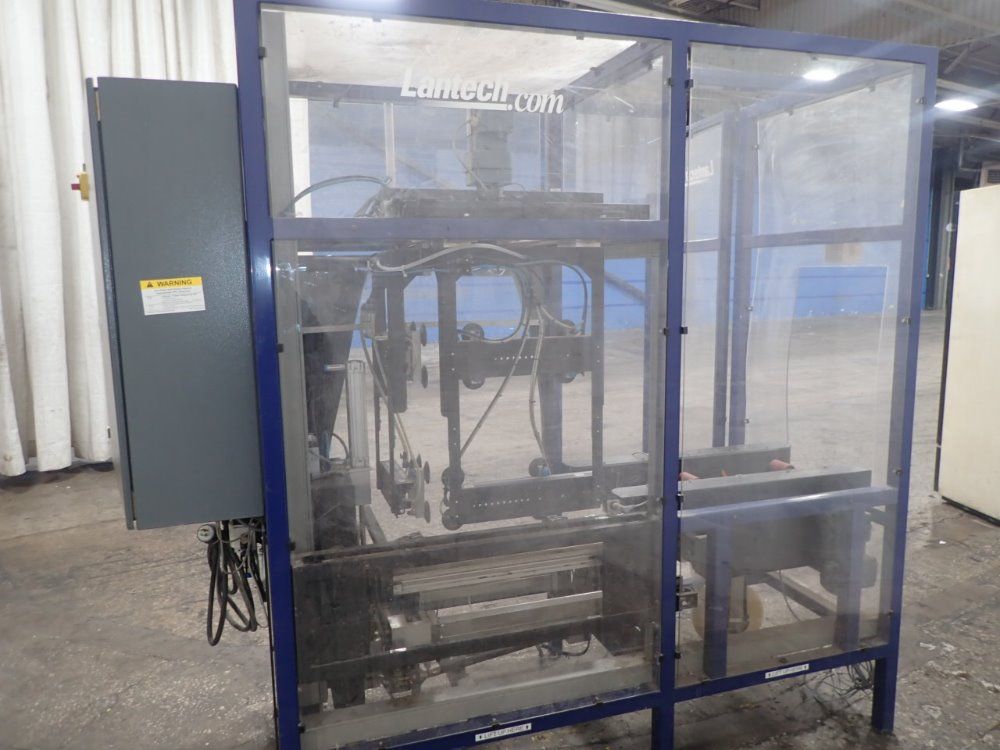

The Lantech C-1000 Automatic Case Erector is designed for businesses that need to process anywhere from 15 to 22 cases per minute. Featuring an easy-access magazine with the capacity to hold up 200 case blanks, the spring-loaded side belts and positive two-panel case control ensures that cartons are held securely during sealing.
- Out feed Height Extension
- 3" Tape Head
- Detection for Magazine, Tape, Hot melt, Case Check
- Additional Case Minimum/Maximum Handling
- Increased 25 Case Standard Throughput (run out required)
- Stainless Steel Frame/Machine Construction
- Magazine Extension to 82
- Minimum case width of 5.5
- Beacon light to indicate general failure, tape supply, blank supply, at-a-glance status

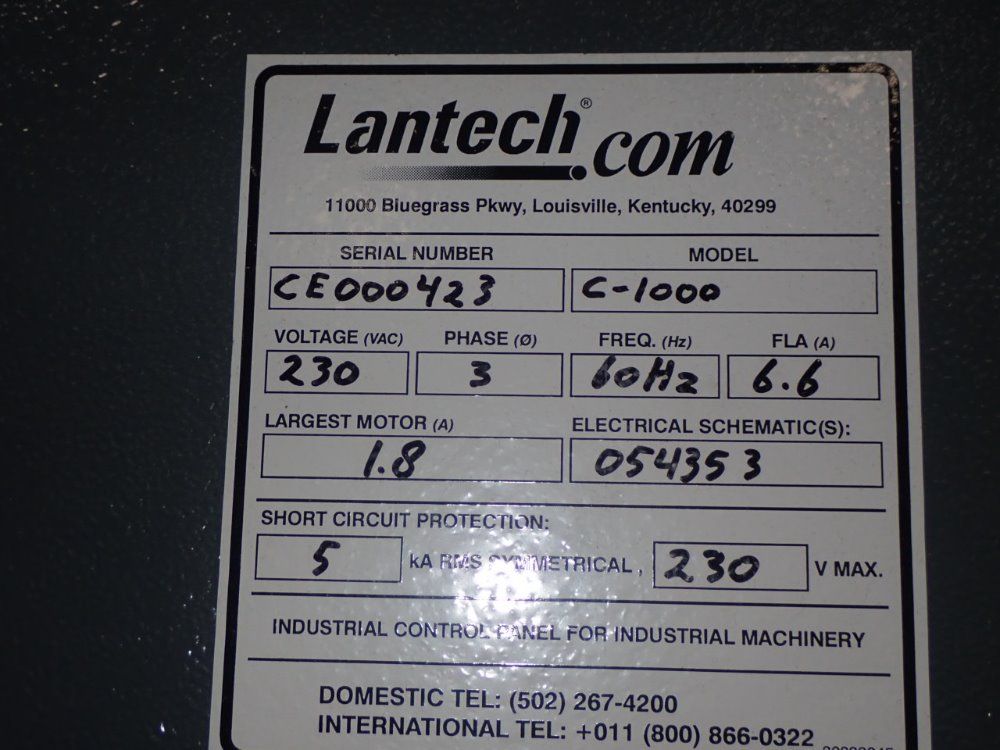

Model Name: Case Erector
Model Number: C-1000
Inventory Number: 0318-128-0079
Serial Number: CE000423
Electrical Supply: 230V, 3 phase, 15 amp, 60Hz
Case Size Minimum: 7.875 (L) x 5.875 (W) x 5.875 (H) in.
Case Size Maximum: 19.75(L ) x 12.75 (W) x 20.25 (H) in.
Case Type: RSC, HSC
Flute Type: B, C
Wall Type: Single (test for double wall)

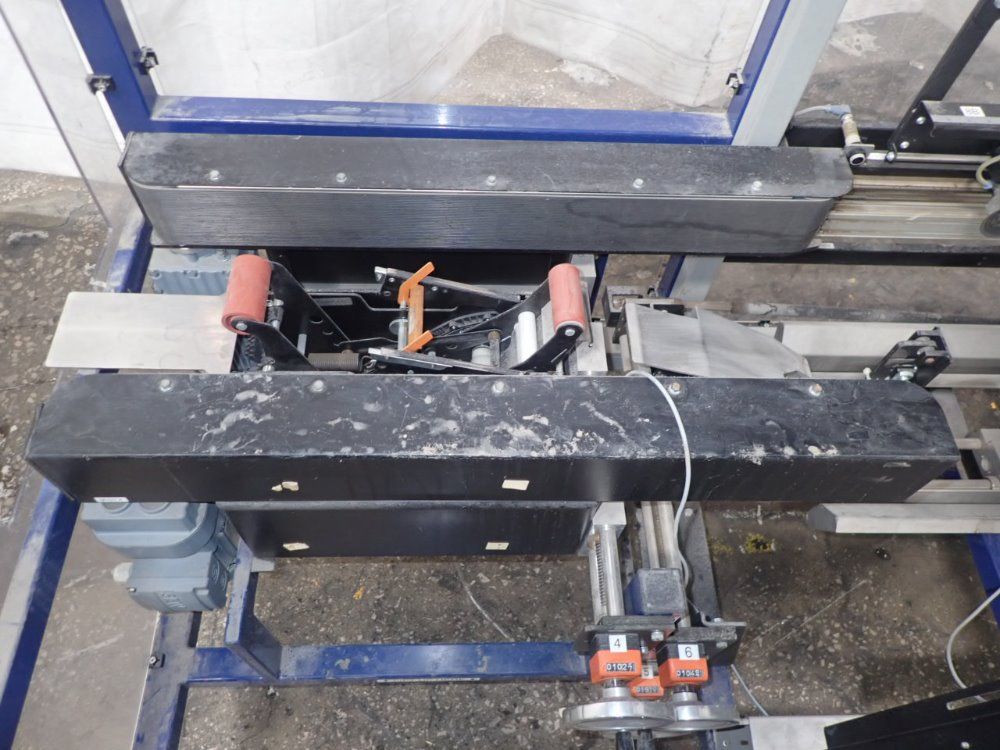

Standard Bottom Tape Sealing

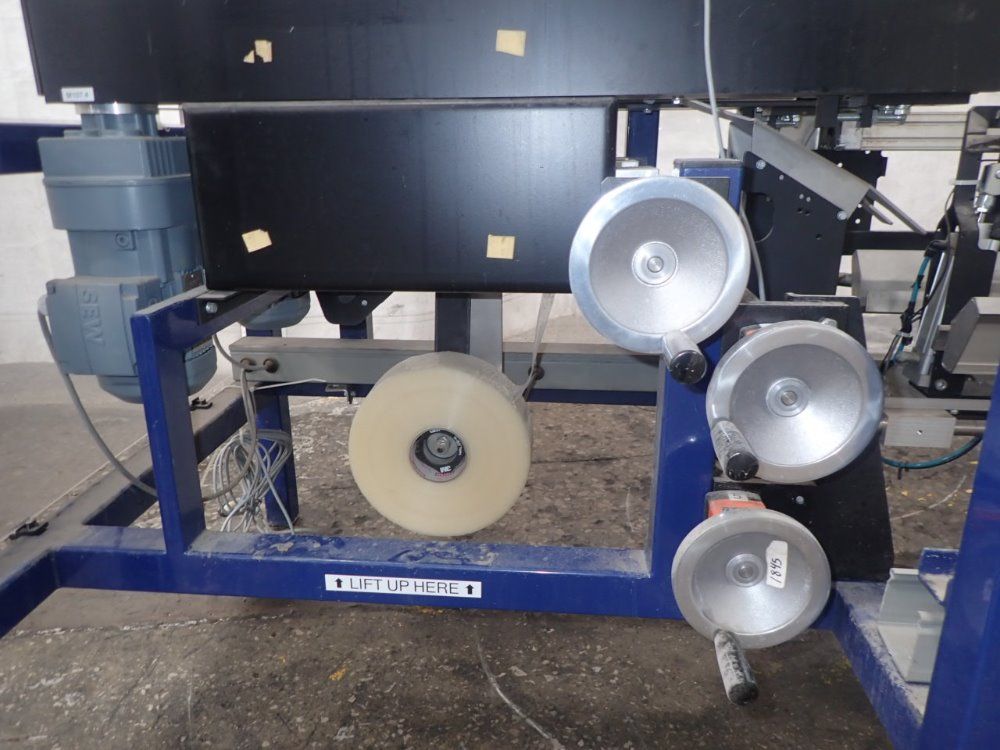

Lantech TH-Series Tape Head
Hot melt Sealing System Available

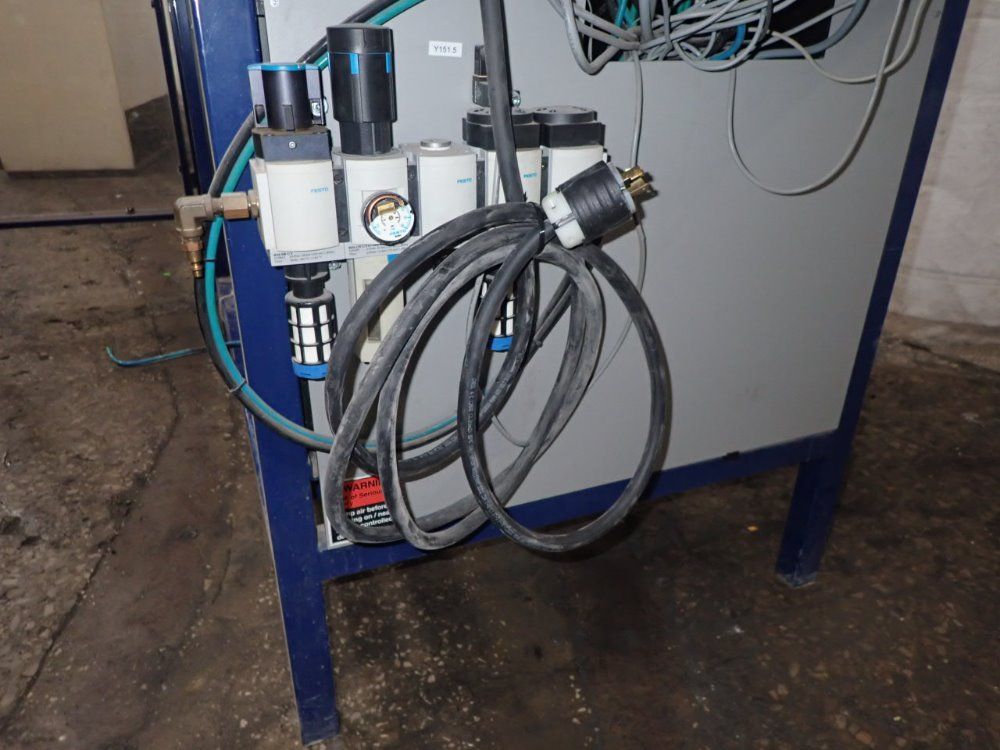

Air Supply: 80 psi, 4-13 cfm, clean dry dir
Dimensions (L x W x H): 90L x 90W x 71H in.
Outfeed Pass Height: 22.5(min.); 24.75(max.)
Infeed Capacity: 200 cases
Weight: 1610 lbs.
