Sold
This item has been SOLD.
Inventory No.
0221-054-0001
Manufacturer
Mimaki
Model No.
-
Name
Printer
Arrival Date
07-19-2025
Dimensions L x W x H (inches)
Unavailable
Capacity
-
Electrical
-
Weight (lb.)
425
Category
Condition
See Details
Available Quantity
1
Serial No.
-
Make Year
-
Item Details
0221-054-0001
About This Item
Product Overview:

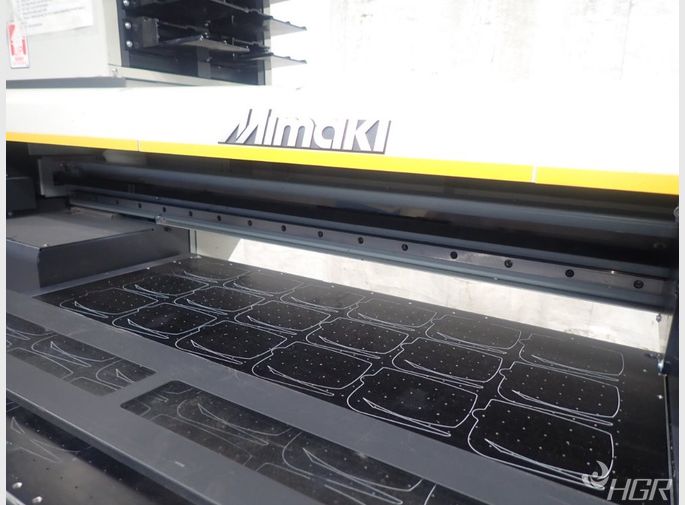

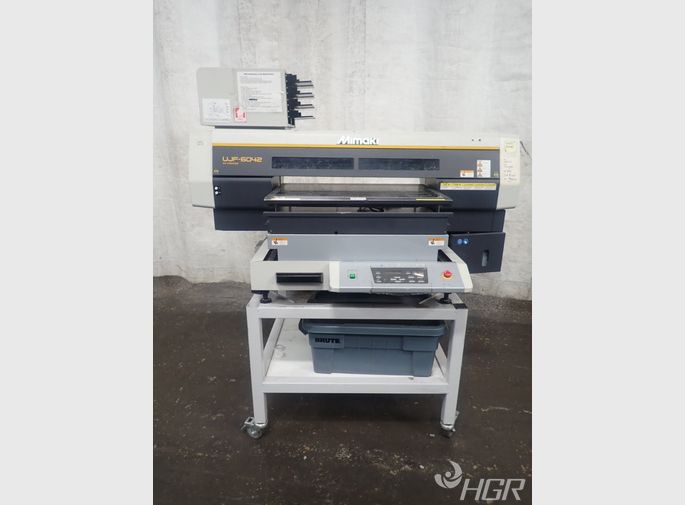

"UJF-6042" is a Tabletop Type LED-UV Curing Flatbed Inkjet Printer, which supports the wider A2 size with the advanced function such as 6-color process color + white and 150 mm height.
A variety of different materials from plastics, glass, and metals can now be printed onto many applications. Using a unique ball screw type conveyance mechanism to produce higher resolution prints. The 1,800 x 1,800 dpi, variable dot technology, with minimum drop size of 4pl, achieves impressive high quality images.
The UJF-6042, allows you to print on promotional products, awards and gift merchandise along with industrial components and accessories.
Product Features:
• Create specialty items, novelties, awards, custom pieces and more
• Print on media up to 24" wide x 16.5" long (610 x 420 mm)
• Accommodates objects up to 6" thick (150 mm)
• Ultra-high quality print resolution of up to 1800 dpi
• Variable dot printing delivers high quality with smooth gradients
• Jettable primer places dots precisely where needed
• LH-100 inks offer high scratch and chemical resistance
• LF-140 inks adds Light Cyan and Light Magenta for application versatility
• LF-200 inks enable stretching of ink up to 200%
• Nozzle Check Unit and Nozzle Recovery System
• Low-energy UV-LED lamps enable printing on heat-sensitive substrates
General:
Manufacturer: Mimaki
Model Name: LED-UV Curing Flatbed Inkjet Printer
Model Number: UJF-6042
Inventory Number: 0221-054-0001
Series: 0137B499
Make Year: 2013
Specifications:
Print Resolution:
Y Axis: 720 dpi, 1,440 dpi, 1,800 dpi
X Axis: 600 dpi, 900 dpi, 1,200 dpi, 1,800 dpi
Ink:
Type:
UV Curable Ink: LH-100 (C/M/Y/K/W/Lc/Lm/Cl)
UV Curable Ink: LF-140 (C/M/Y/K/Lc/Lm/W)
UV Curable Ink: LF-200 (C/M/Y/K/W)
Supply System: 220 ml Cartridge / 600 ml Ink Pack
Ink Circulation: White Ink Circulation by MCT (Mimaki Circulation Technology)
Media:
Size(W x D): 610 × 420 mm (24.0 × 16.5 in.)
Height: Less than 150 mm (5.9 in.)
Weight: Less than 7 kg (15.4 lbs.) / When using a height adjuster, less than 4 kg (8.8 lbs.)
Print Accuracy:
Absolute Accuracy: ± 0.3 mm (0.01 in.) or ± 0.3 % from specified print distance
Repeatability: ± 0.2 mm (0.01 in.) or ± 0.1 % from specified print distance
Operational Environment:
Temperature: 20℃ ~ 35℃ (68°F ~ 95°F)
Humidity: 35~65%Rh
Temperature Accuracy: 20℃~25℃ (68°F ~ 77°F)
Temperature Gradient: Less than ± 10℃/h (± 18°F/h)
Dust: Equivalent to normal office level
Dimensions(W × D × H): 1,510 × 966 × 960 mm (59.4 × 38.0 × 37.8 in.)
Head: On-Demand Piezo Head
Maximum print size(W × D): 610 × 420 mm (24.0 × 16.5 in.)
UV Unit: Equipped with UV LED (Light Emitting Diodes)
Media suction: Air suction by vacuum
Interface: USB2.0
Applicable Standard: VCCI Class A, FCC Class A, CE Marking, RoHS Directive, REACH Regulation
Power Specifications: AC100V ~ AC240V (Automated voltage conversion), 50/60 Hz
Power Consumption: Less than 450 VA
Capacity: 26 in.
Weight (lb): 425 lbs.
Bay: 2900
Aisle: 12A
